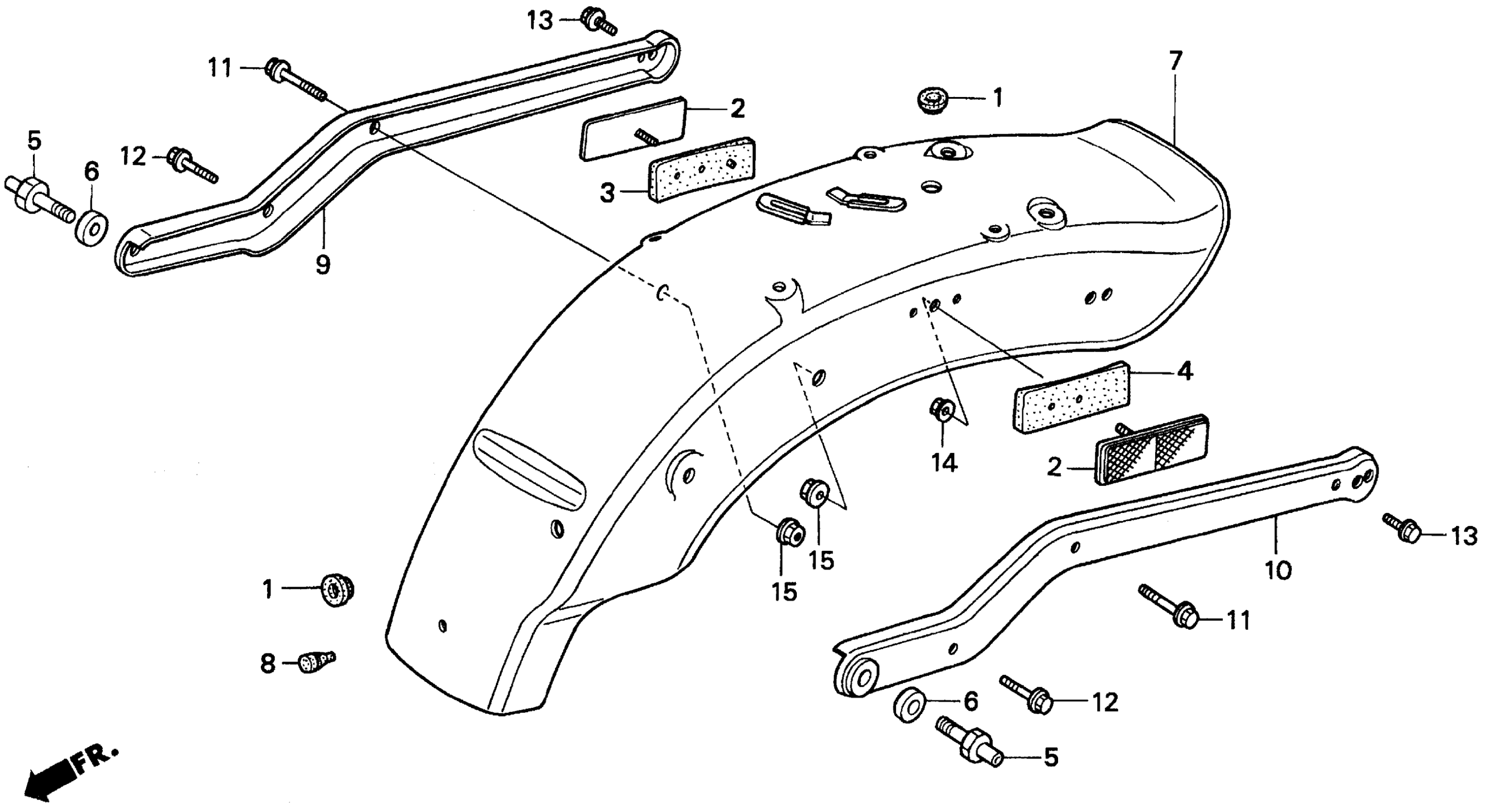

Honda CMX250CA (02) REBEL, JPN, VIN# JH2MC130-2K800001 REAR FENDER Diagram

GROMMET, WIRE HARNESS

32983-447-000

$2.92

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

BASE, R. REFLEX REFLECTOR

33742-KR3-671

$11.25

BASE, L. REFLEX REFLECTOR

33743-KR3-671

$11.77

BOLT, RR. SHOCK ABSORBER

52451-KR3-600

$23.41

COLLAR, RR. SHOCK ABSORBER BOLT

52452-KR3-600

$9.56

FENDER, RR. *NH1* (BLACK)

80100-KR3-680ZA

Unavailable

FENDER, RR. *R271P* (RED)

80100-KR3-680ZP

Unavailable

CUSHION, RR. FENDER

80109-KR3-000

$2.39

PLATE, R. TAIL

84100-KR3-000

$70.31

PLATE, L. TAIL

84200-KR3-000

$67.30

BOLT, SPECIAL FLANGE (8X31)

90122-KR3-000

$3.87

BOLT, SPECIAL FLANGE (10X40)

90101-MAA-000

$11.41

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

$11.41

BOLT, SPECIAL FLANGE (8X12)

90125-KR3-000

$3.89

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49
