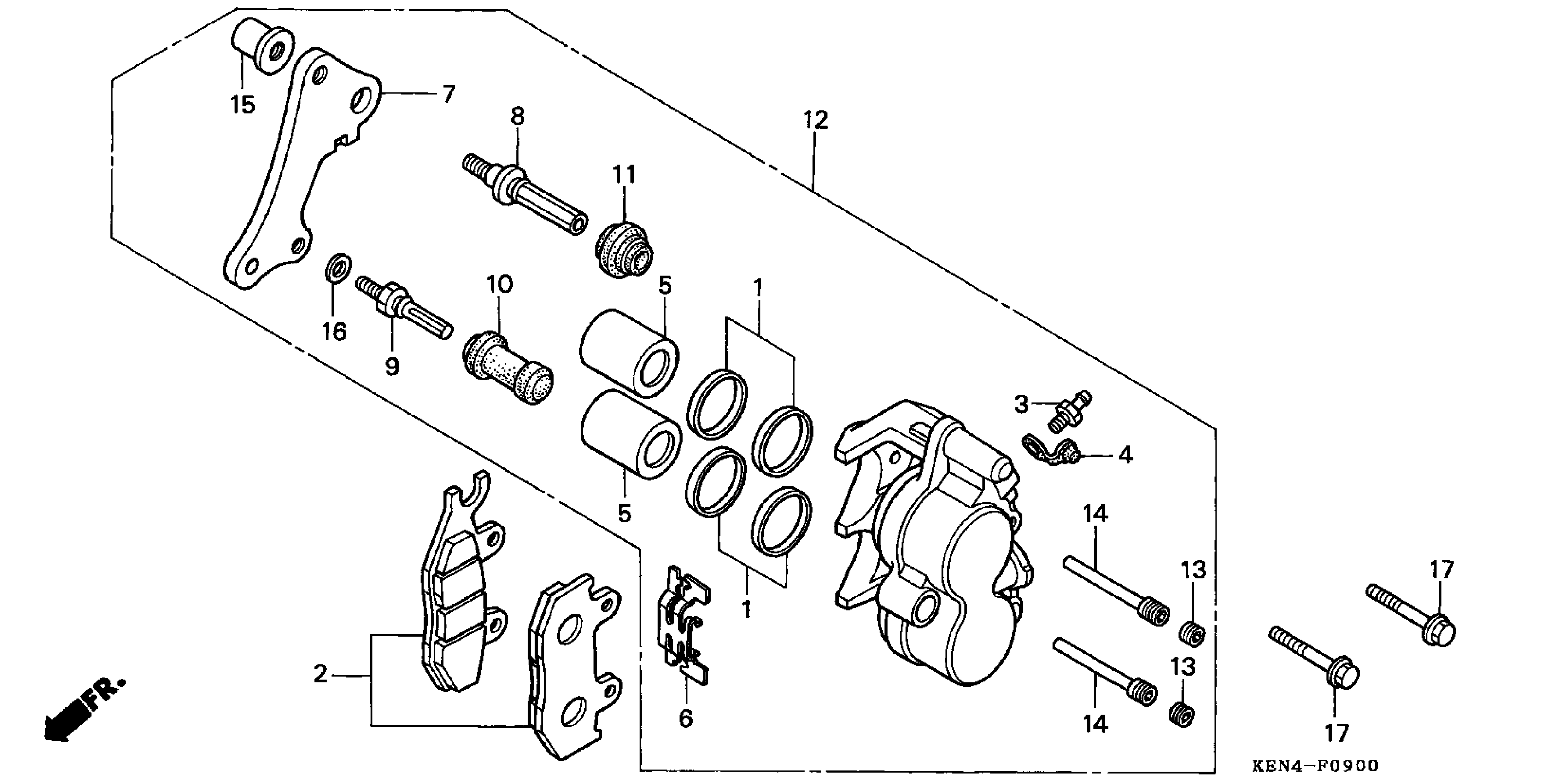

Honda CMX250CA (02) REBEL, JPN, VIN# JH2MC130-2K800001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$11.41

PAD SET, BRAKE This part replaces 06455-KEB-900.

06455-KEB-902

$45.97

PAD SET, BRAKE This part replaces 06455-KEB-901.

06455-KEB-902

$45.97

PAD SET, BRAKE

06455-KEB-902

$45.97

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-MN5-006

$37.88

SPRING, PAD

45108-KCW-861

$11.75

BRACKET, L. FR.

45110-KEB-901

$22.15

PIN A, BOLT

45131-GE2-006

$6.38

BOLT, PIN

45131-GZ0-006

$8.08

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-KEB-305

$396.15

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-KA3-732

$11.52

NUT, TORQUE

45216-KW6-901

$11.41

WASHER, WAVE (NISSIN)

45216-166-006

$2.34

BOLT, FLANGE (8X25)

90131-GAA-000

$6.79
