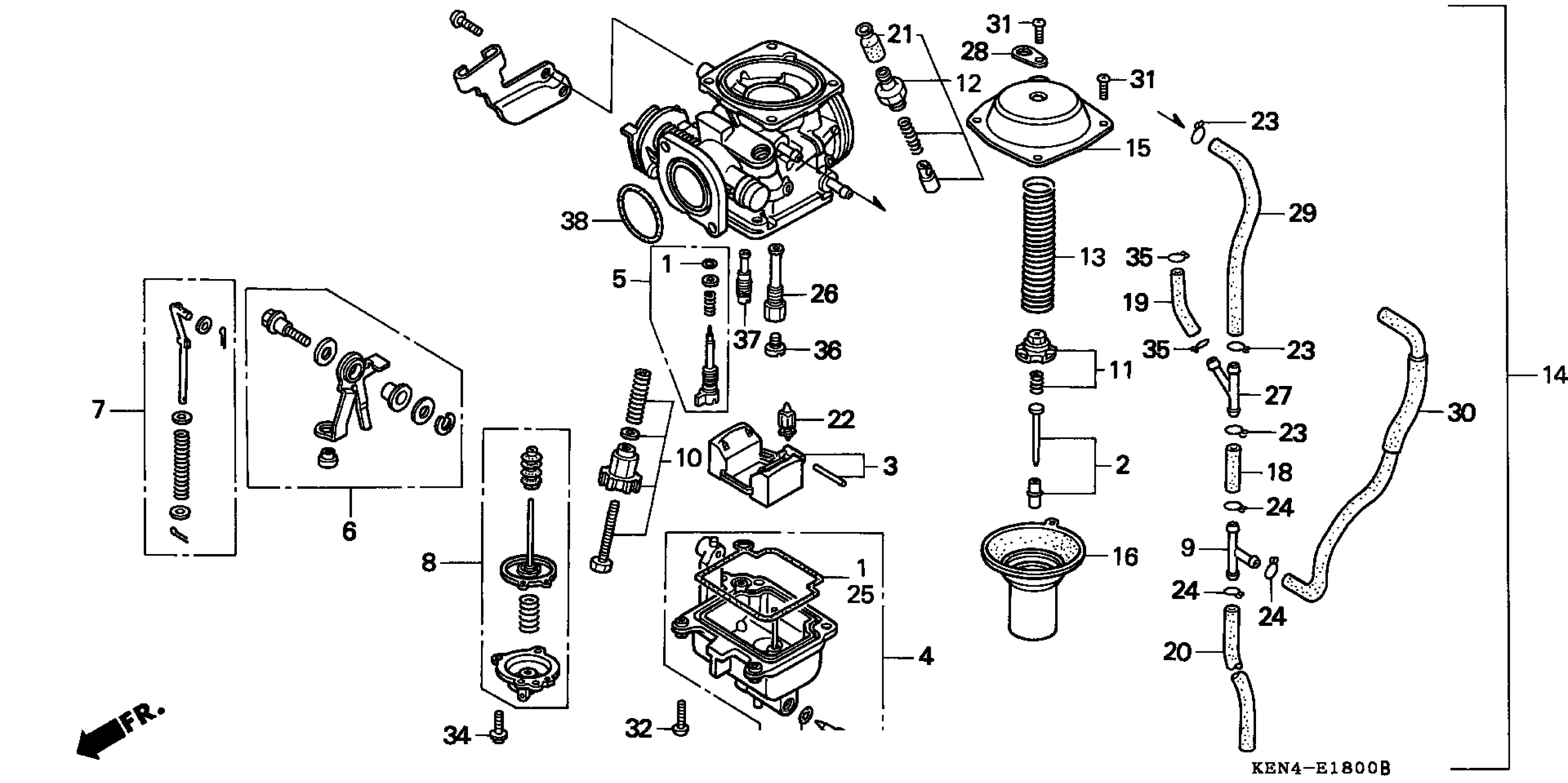

Honda CMX250CA (02) REBEL, JPN, VIN# JH2MC130-2K800001 CARBURETOR Diagram

GASKET SET

16010-KEN-620

$33.82

NEEDLE SET, JET

16012-KEN-620

$51.17

FLOAT SET

16013-KR3-980

$55.27

CHAMBER SET, FLOAT

16015-KEN-620

$171.43

SCREW SET

16016-KEN-670

$29.21

LINK SET

16017-KEN-620

$41.22

ROD SET, PUMP This part replaces 16019-KEN-620.

16019-K17-681

$17.71

DIAPHRAGM SET, PUMP

16021-KEN-620

$120.78

T-JOINT

16026-MN8-004

$43.52

SCREW SET

16028-KR3-980

$46.87

PLATE SET, VALVE

16037-KEN-620

$21.30

VALVE SET, STARTER

16046-KEN-620

$63.59

SPRING, COMPRESSION COIL

16050-KBG-770

$16.21

CARBURETOR ASSY. (VE35C A) (FRAME NO.) This part replaces 16100-KEN-670.

16100-KEN-671

Unavailable

CARBURETOR ASSY. (VE35C A) (FRAME NO.)

16100-KEN-671

Unavailable

TOP

16107-KW4-003

$45.05

PISTON, VACUUM

16111-KBG-770

$181.39

TUBE

16143-KBG-670

$6.39

TUBE

16143-KR3-751

$5.64

TUBE

16144-KBG-670

$13.39

CAP, CABLE SEALING

16148-KB1-921

$17.51

VALVE, FLOAT

16155-397-971

$41.45

CLIP, TUBE

16163-GHB-600

$1.97

CLIP, TUBE (B6.5)

16163-GHB-610

$1.73

GASKET, FLOAT CHAMBER

16163-HM7-700

$10.04

HOLDER, NEEDLE JET

16165-KBG-770

$41.43

JOINT

16180-ML6-671

$15.97

PLATE, SET

16186-KBG-670

$5.59

TUBE, OVERFLOW

16198-KBG-670

$9.28

TUBE

16198-KEN-670

$21.25

SCREW, PAN (4X8) SCREW, PAN (4X12)

93500-04008-0A

$1.49

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

SCREW, PAN (4X14)

93500-04014-0A

$1.49

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$1.49

SCREW-WASHER (4X12)

93892-04012-00

$1.49

SCREW-WASHER (4X12) This part replaces 93892-04012-10.

93892-04012-00

$1.49

CLIP, TUBE (B1 8)

95002-02089

$1.49

JET, MAIN (#108) This part replaces 99101-GHB-1080.

99101-MAZ-1080

$8.92

JET, SLOW (#38) This part replaces 99103-MA1-0380.

99104-MAZ-0380

$18.02

O-RING (2.4X29)

16075-GHB-B70

$7.81
