Description

Price

1

BATTERY (YTX7L-BS) (YUASA) (MSDS) This part replaces 31500-KW3-676.

31500-KW3-676AH

$76.28

1

BATTERY (YTX7L-BS) (YUASA) (MSDS)

31500-KW3-676AH

$76.28

2

CABLE, STARTER MAGNETIC BATTERY

32401-KR3-870

$23.47

3

COVER A, STARTER MAGNETIC TERMINAL

32405-KR3-870

$4.53

4

COVER, BATTERY

32412-KR3-870

$4.31

5

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-KR3-870.

35850-KR3-871

$92.63

5

SWITCH ASSY., STARTER MAGNETIC

35850-KR3-871

$92.63

6

RUBBER, SHOCK

35856-KR3-870

$11.03

7

BOX ASSY., FUSE

38200-KR3-871

$72.94

8

COVER, FUSE

38210-KR3-671

$11.03

9

TRAY, BATTERY

50325-KR3-870

$151.75

10

CUSHION, BATTERY

50326-KR3-870

$27.14

11

RUBBER, BATTERY TRAY

50329-KR3-670

$2.21

12

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

13

WASHER, CHAIN CASE SETTING

90522-028-000

$2.66

14

NUT, FLANGE (6MM)

94050-06000

$0.60

15

BAND, BATTERY

95012-15001

$6.02

16

BOLT, FLANGE (6X10) | Use up to Frame SN 2K805978.

95701-06010-08

$1.49

16

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12) | Use from Frame SN 2K805979.

95701-06010-00

$1.16

17

FUSE B (10A)

98200-21000

$0.87

18

FUSE, BLADE (20A) FUSE (F20) (LITTEL)

98200-32000

$1.21

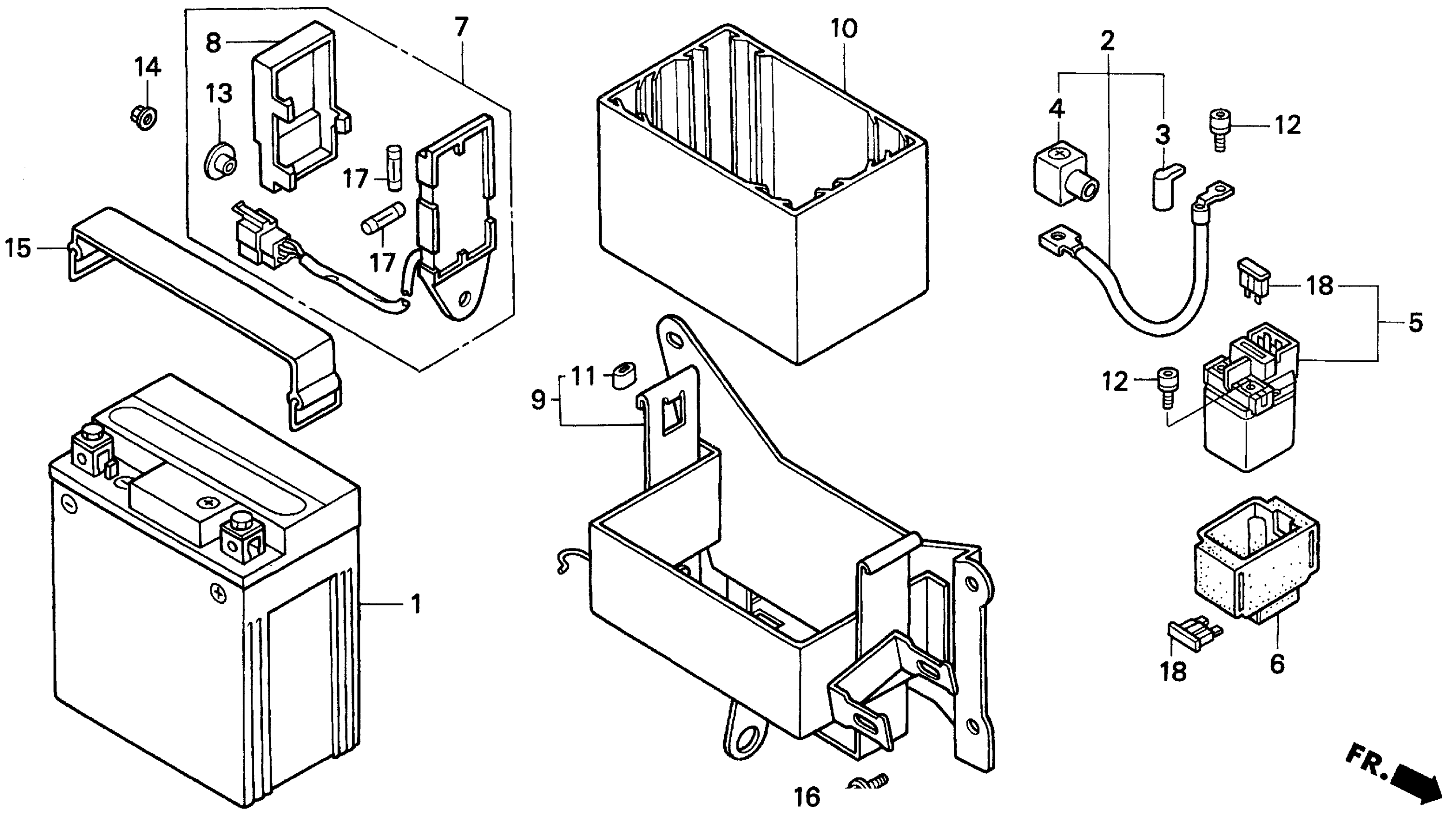

Honda CMX250CA (02) REBEL, JPN, VIN# JH2MC130-2K800001 BATTERY Diagram
