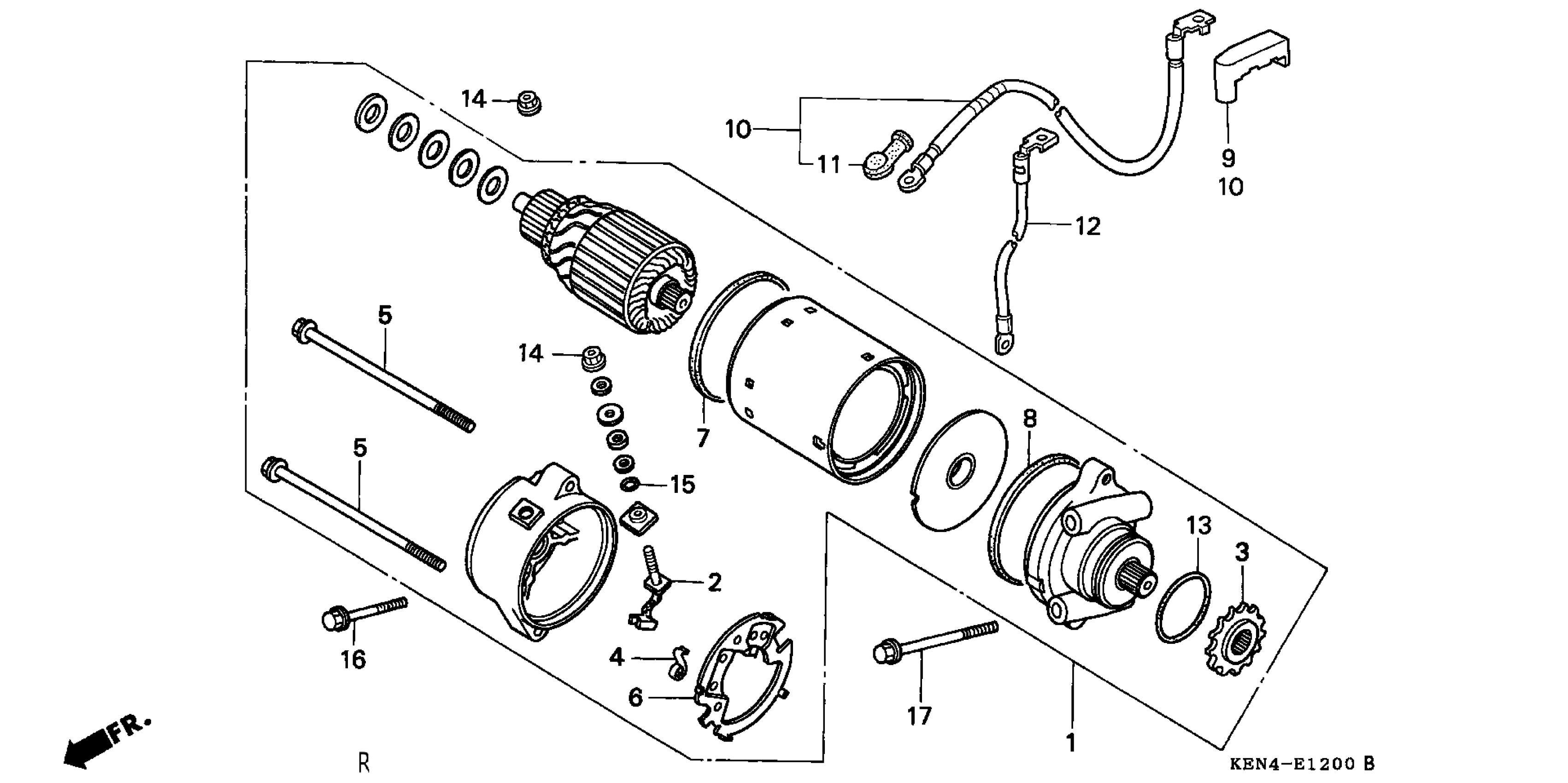

Honda CMX250CA (01) REBEL, JPN, VIN# JH2MC130-1K700001 STARTER MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-KW4-018

$601.59

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$24.71

SPROCKET, STARTER MOTOR (13T)

31202-216-154

$50.41

SPRING, CARBON BRUSH

31204-KS5-901

$2.92

BOLT, SETTING

31205-KC1-901

$6.85

HOLDER SET, BRUSH

31206-MN4-008

$23.32

RING (Honda Code 2541985)

31207-KS5-901

$3.12

RING, SEAL

31207-179-711

$4.22

COVER B, STARTER MAGNETIC TERMINAL

32406-KR3-870

$6.62

CABLE, STARTER MOTOR

32410-KEB-900

$44.82

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

CABLE, BATTERY GROUND

32601-KR3-870

$28.00

O-RING, PINION CAP

53438-611-000

$5.80

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
