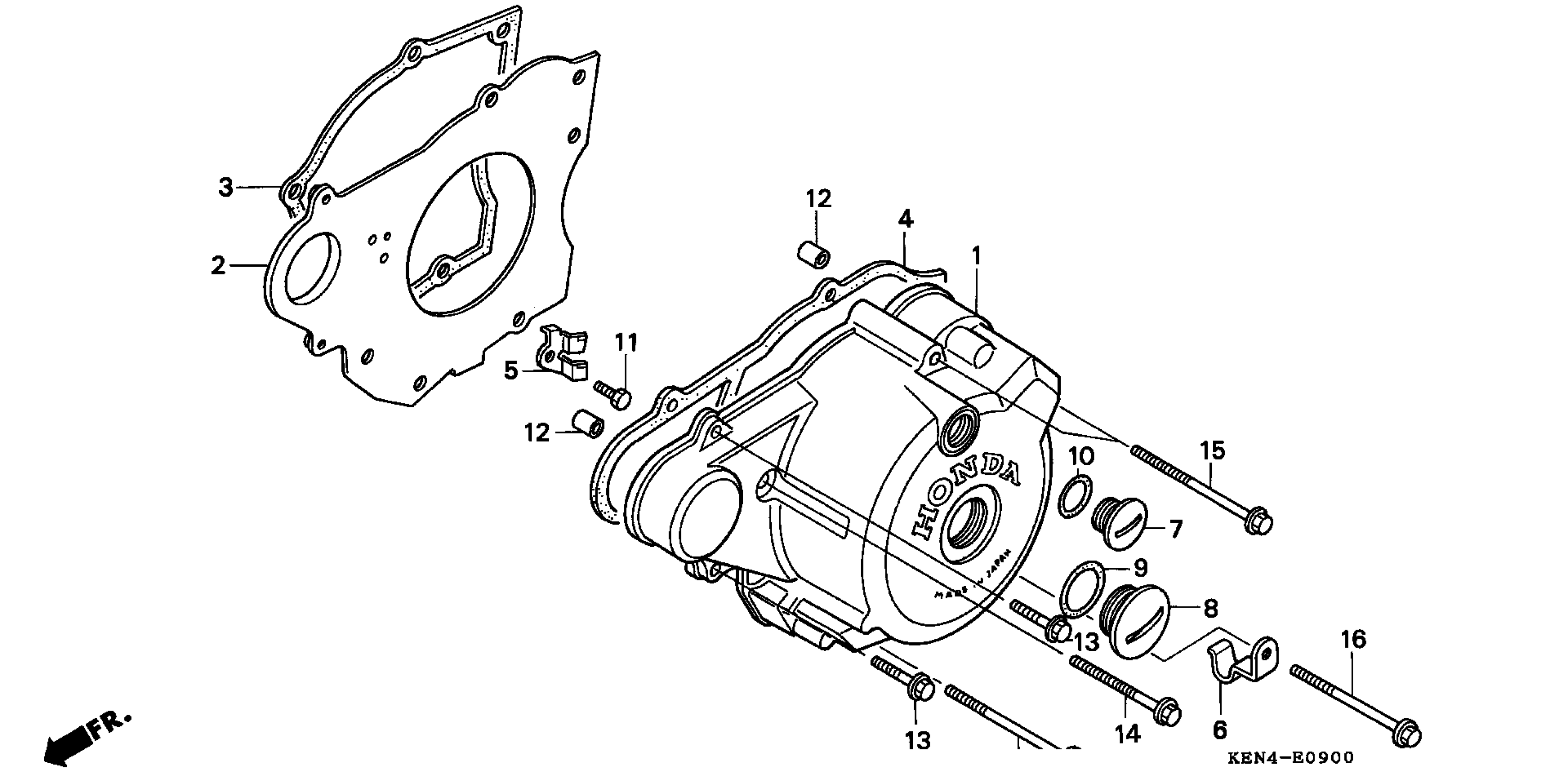

Honda CMX250CA (01) REBEL, JPN, VIN# JH2MC130-1K700001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-KB4-700

$200.43

SPACER, L. SIDE

11371-KB4-670

$95.03

GASKET, L. This part replaces 11394-KBG-771.

11394-KBG-773

$13.29

GASKET, L. This part replaces 11394-KBG-772.

11394-KBG-773

$13.29

GSKT, L. SIDE SPACER This part replaces 11395-KBG-771.

11395-KBG-773

$13.34

GSKT, L. SIDE SPACER This part replaces 11395-KBG-772.

11395-KBG-773

$13.34

PLATE, STARTING SPROCKET SETTING

28117-402-000

$2.99

CLIP, STARTER MOTOR CABLE

32911-KB4-670

$5.61

CAP, ALTERNATOR

90084-471-000

Unavailable

CAP (30MM) This part replaces 90087-471-000.

90087-MR1-000

$19.89

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

O-RING (13.8X2.5)

91303-377-000

$3.42

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)

96001-06050-00

$2.16

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
