Description

Price

1

BAND, WIRE

32161-KM3-003

$2.58

2

KEY SET This part replaces 35010-KEN-670.

35010-KEN-671

$132.48

3

SWITCH ASSY., COMBINATION

35100-KR3-870

$68.80

4

KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$9.08

4

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$9.08

5

HANDLEBAR This part replaces 53100-KEN-305.

53100-KEN-670

$77.52

5

HANDLEBAR

53100-KEN-670

$77.52

6

WEIGHT A, HANDLE

53103-KR3-681

$17.65

7

WEIGHT B, HANDLE

53104-KR3-600

$22.17

8

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.66

9

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.80

10

RUBBER, HANDLEBAR CUSHION

53133-385-000

$4.86

11

BRIDGE, FORK TOP

53230-KR3-000

$256.84

12

HOLDER (LOWER)

53231-KR3-870

$70.84

13

HOLDER (UPPER)

53235-KR3-000

$19.74

14

CASE, CONNECTOR (LOWER)

61305-KR3-670

$24.09

15

CASE, CONNECTOR (UPPER)

61306-KR3-670

$20.43

16

BOLT, SOCKET (7X32)

90151-KR3-000

$5.28

17

SCREW, OVAL (6X55)

90191-KN8-730

$4.69

18

NUT, STEERING STEM

90304-159-000

$6.54

19

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

20

WASHER, STEERING STEM

90503-051-870

$2.58

21

WASHER, HANDLE CUSHION

90535-292-000

$1.94

22

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

23

SCREW, PAN (6X12) SCREW, PAN (6X10)

93500-06012-0G

$0.90

24

SCREW, TAPPING (3X20)

93901-22580

$0.70

25

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

26

BOLT, SOCKET (8X32)

96700-08032-00

$1.62

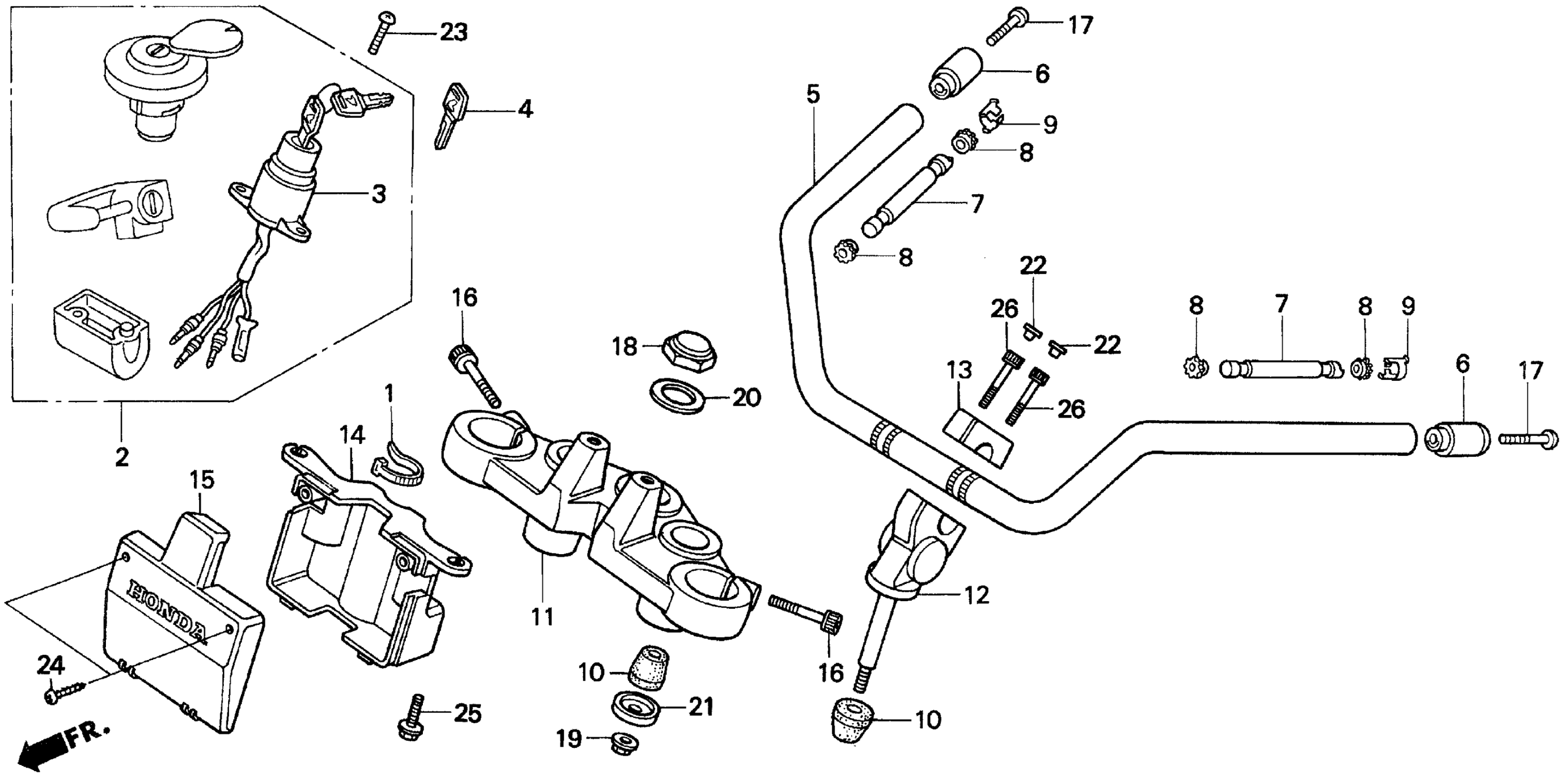

Honda CMX250CA (01) REBEL, JPN, VIN# JH2MC130-1K700001 HANDLEBAR Diagram
