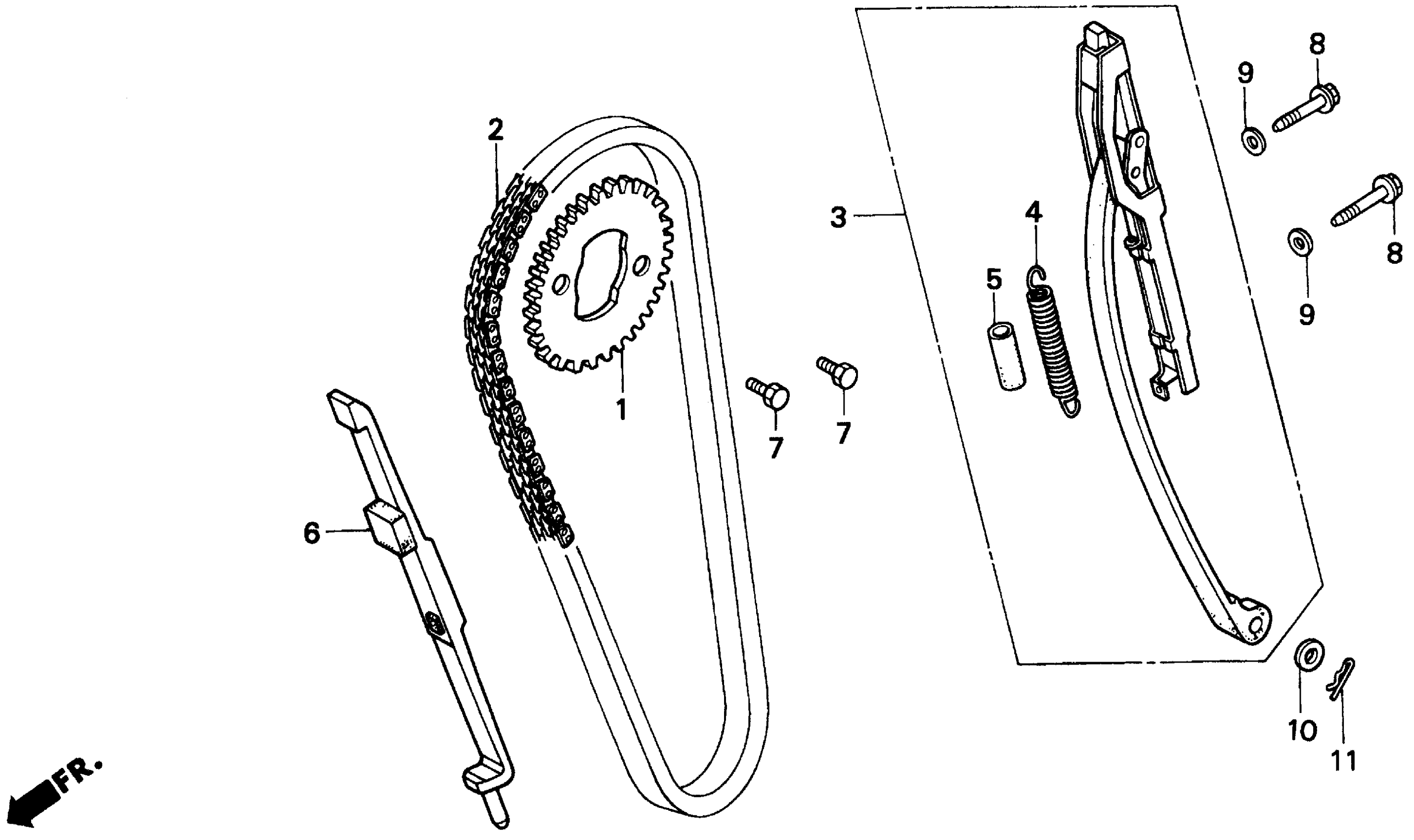

Honda CMX250CA (01) REBEL, JPN, VIN# JH2MC130-1K700001 CAM CHAIN Diagram

SPROCKET, CAM (38T)

14321-KB4-671

$38.63

CHAIN, CAM (98L)

14401-KBG-671

$161.87

TENSIONER, CAM CHAIN

14500-KB4-670

$172.16

SPRING, CAM CHAIN TENSIONER

14516-KB4-670

$6.74

TUBE, TENSIONER SPRING

14539-KB4-670

$2.47

GUIDE, CAM CHAIN

14550-KB4-671

$37.04

BOLT, HEX. KNOCK (7X12) BOLT, FLANGE KNOCK (7X14)

90086-413-000

$2.62

BOLT, SPECIAL (6X28)

90125-KB4-670

$4.39

WASHER, SEALING (6MM)

90441-706-000

$1.07

WASHER A, TACHOMETER

90444-611-920

$2.31

PIN, LOCK (6MM)

94251-06000

$0.96
