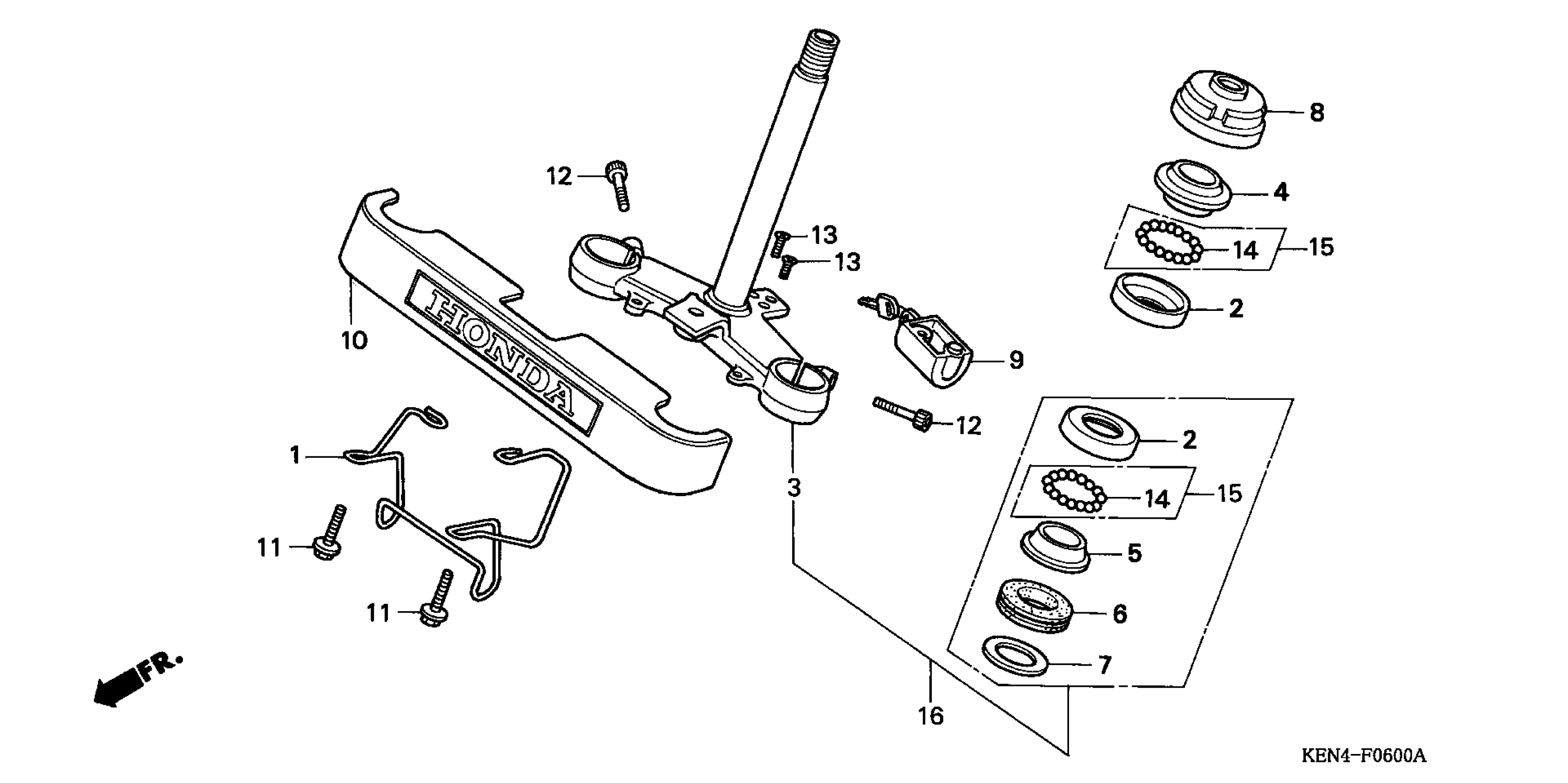

Honda CMX250C2A (99) REBEL (2-TONE), JPN, VIN# JH2MC133-XK000001 STEERING STEM Diagram

#

Description

Price

1

CLAMP, FR. BRAKE HOSE

45469-KEB-900

$25.46

2

RACE, STEERING TOP BALL

50301-041-010

$11.13

4

RACE, STEERING CONE (UPPER)

53211-028-010

$9.96

5

RACE, STEERING CONE (LOWER)

53212-030-010

$9.63

6

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.36

7

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

8

THREAD, STEERING HEAD TOP

53220-074-000

$14.23

9

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$43.61

10

COVER, FR.

61401-KR3-980

$38.46

11

BOLT, FLANGE (6X20)

90102-MN1-670

$2.80

12

BOLT, SOCKET (8X28)

90154-MF8-000

$4.80

13

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

14

BALL, STEEL (#6) (3/16)

96211-06000

$0.46

15

BALL ASSY., STEEL (#6X21)

06531-KAN-630

$2.78

16

STEM SUB-ASSY., STEERING

53219-KEN-A10

Unavailable
