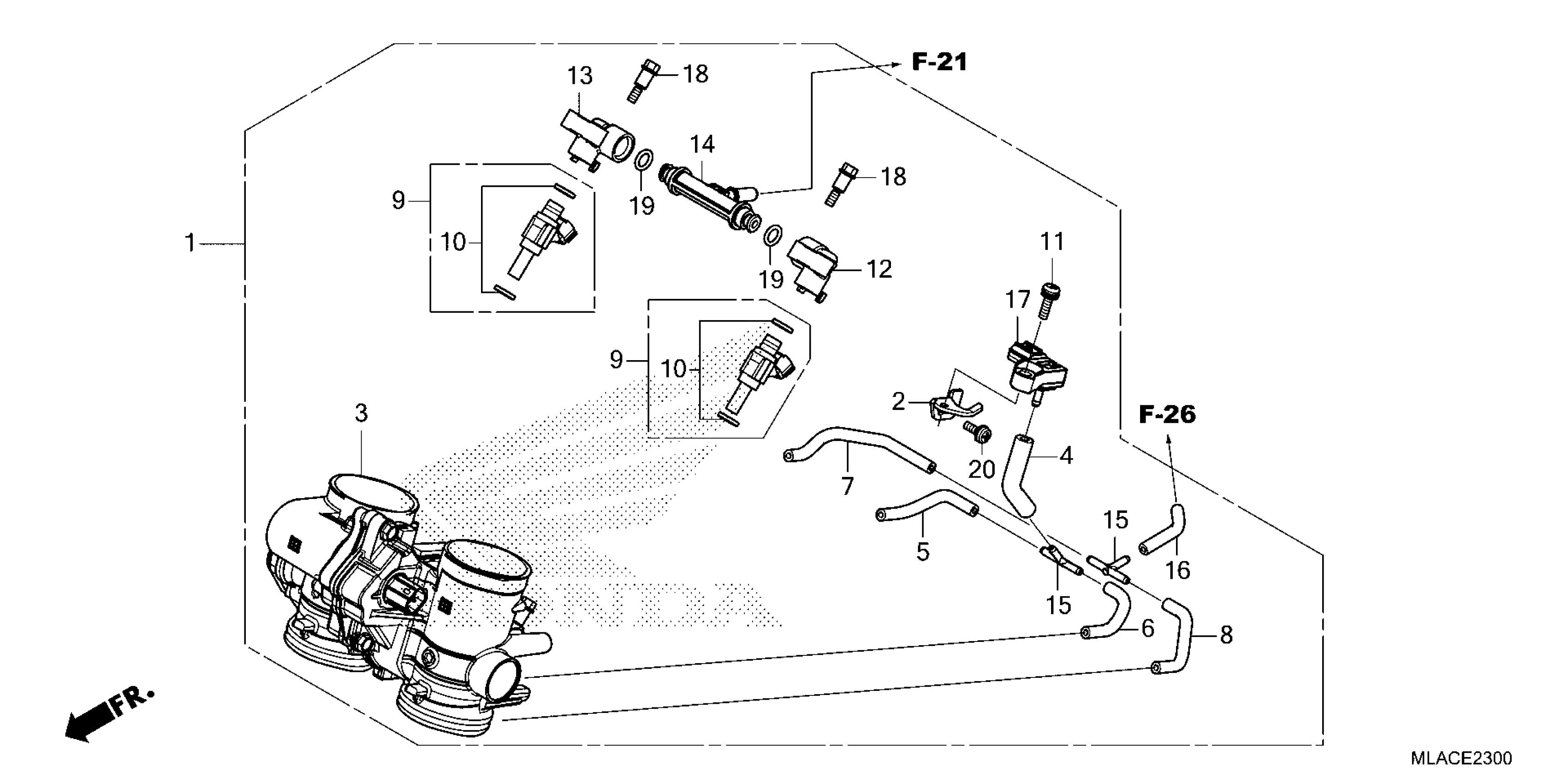

Honda CMX1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC878-SK000001 TO JH2SC878-SK099999 THROTTLE BODY Diagram

Description

Price

BODY ASSY. (GNJ6A A)

16400-MLA-BA1

$973.69

STAY, PB SENSOR

16406-MLA-BA1

$6.72

BODY SET

16410-MLA-BA1

$695.11

TUBE, MAP SENSOR

16411-MLA-A00

$3.31

TUBE, PB (R)

16412-MLA-A00

$3.23

TUBE, PB (L)

16413-MLA-A00

$3.23

TUBE, PURGE (R)

16414-MLA-A00

$5.02

TUBE, PURGE (L)

16415-MLA-A00

$3.57

INJECTOR ASSY., FUEL

16450-MLA-BA1

$96.79

SEAL SET, INJECTOR

16470-MLA-BA1

$32.44

BOLT-WASHER (6X18)

16542-MEL-003

$3.31

PIPE, FUEL

16610-MLA-BA1

$22.34

PIPE, FUEL

16620-MLA-BA1

$22.34

T-JOINT, FUEL

16630-MKS-E01

$29.57

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

TUBE, JOINT-HEAD

17419-MLA-A00

$3.05

SENSOR ASSY., MAP

37830-MKZ-J31

$98.98

BOLT, SHOULDER

90021-MGZ-D02

$2.90

O-RING (7.47X3.6)

91301-PLC-000

$3.11

SCREW-WASHER (6X14)

93892-06014-18

$1.49
