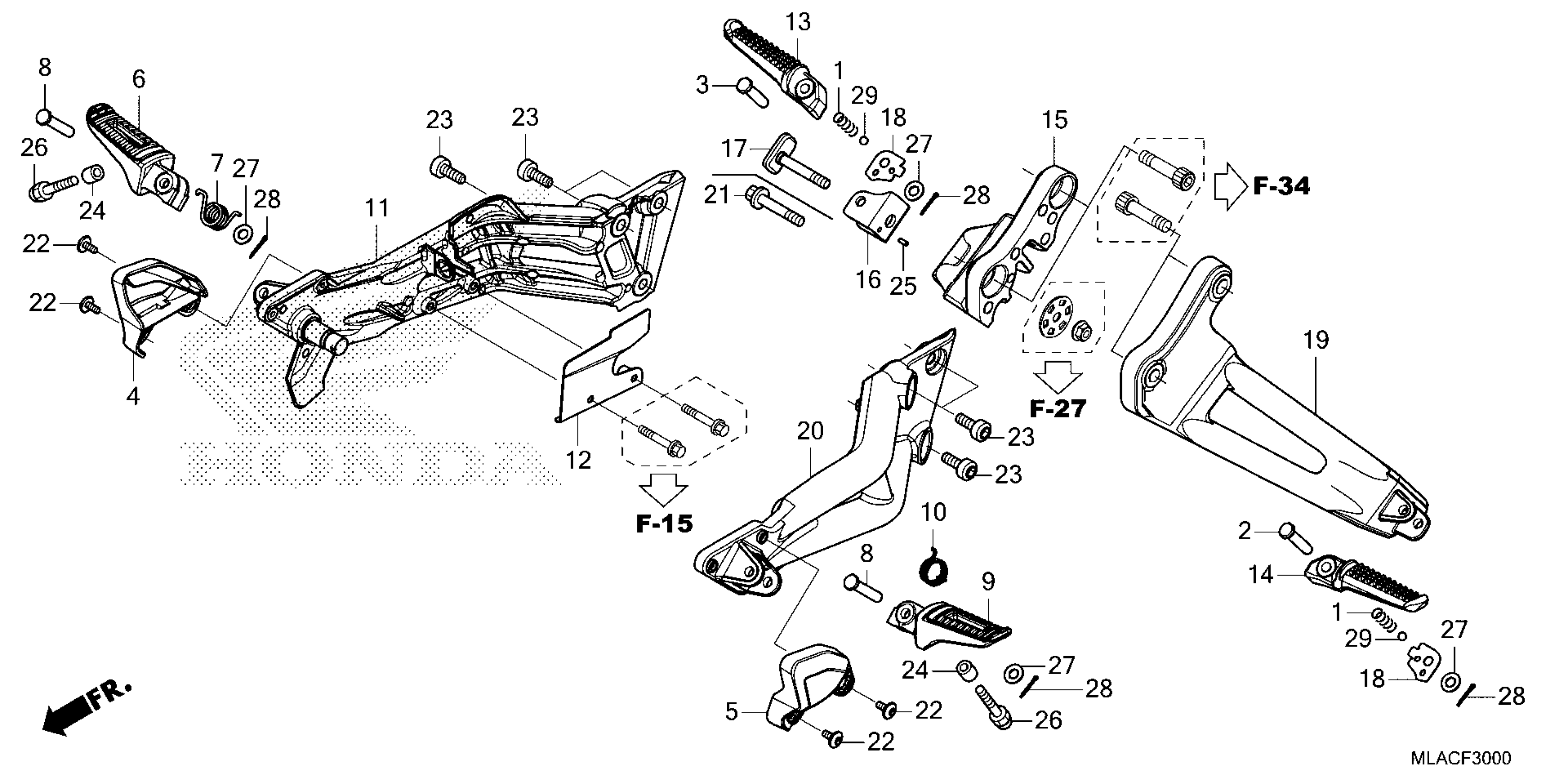

Honda CMX1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC878-SK000001 TO JH2SC878-SK099999 STEP (CMX1100A/D/D3) Diagram

GUARD, R. STEP

50607-MLA-A00

$7.06

GUARD, L. STEP

50608-MLA-A00

$7.06

ARM, R. MAIN STEP

50612-MLA-A00

$75.21

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.20

PIN, STEP BAR

50639-ML0-010

Unavailable

ARM, L. MAIN STEP

50642-MLA-A00

$75.21

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.20

HOLDER, R. STEP

50650-MLA-AA0

$170.44

STAY, BRAKE SWITCH

50651-MLA-A00

$14.04

HOLDER, R. PILLION STEP

50715-MLA-J00

$127.40

HOLDER, L. STEP

50750-MLA-AA0

$178.12

BOLT, FLANGE (5X50)

90036-GHB-760

$2.83

BOLT, SOCKET (5X12)

90154-MLA-A00

$2.51

BOLT, SOCKET (8X22)

90157-MLA-A00

$3.56

COLLAR (6.3X12.5X15)

90506-MLA-AA0

$2.19

BOLT, CAP (6X25)

92501-06025-0G

$3.63

WASHER, PLAIN (8MM)

94102-08000

$0.87

PIN, SPLIT (2.0)

94201-20151

$0.49
