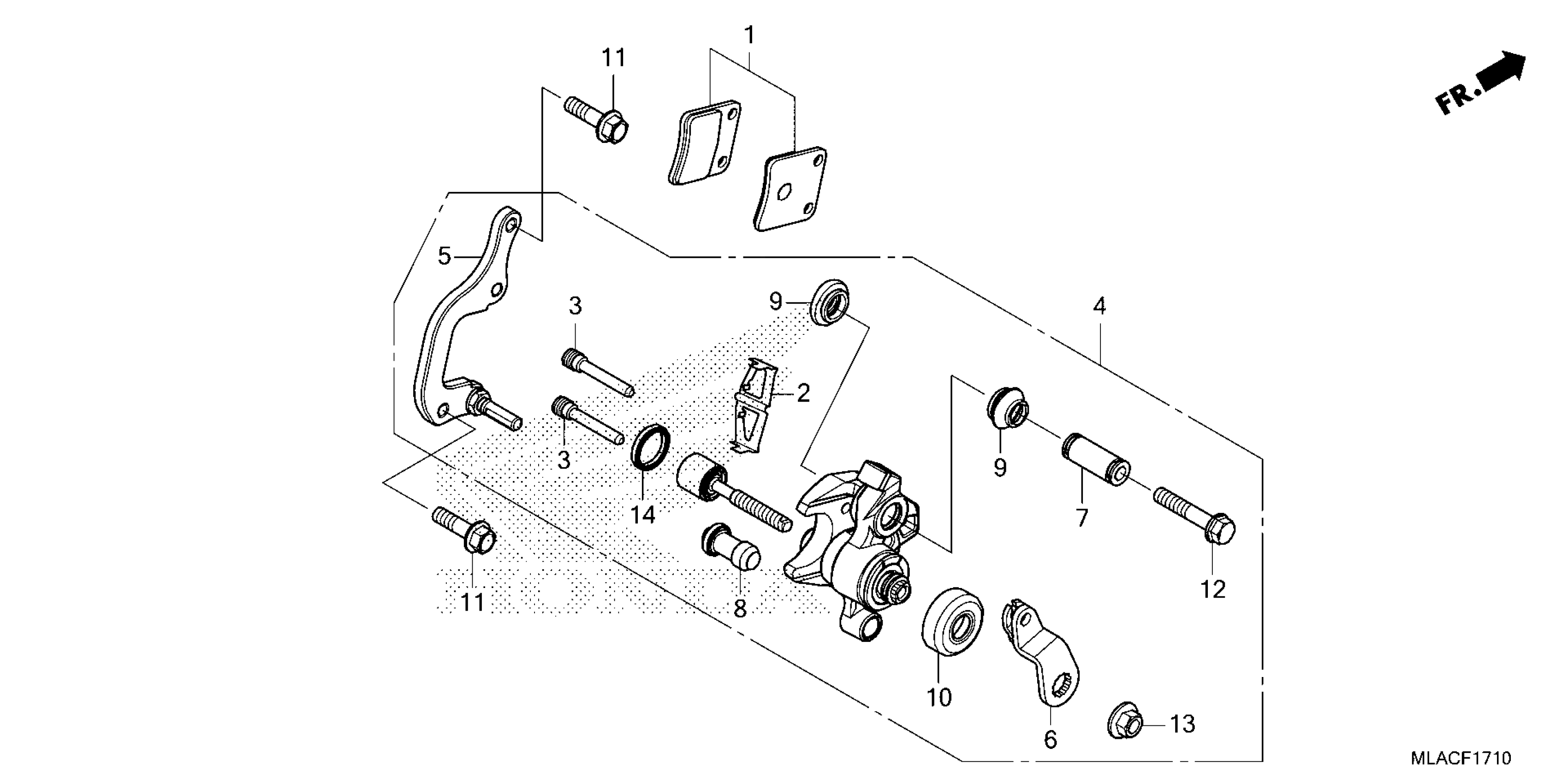

Honda CMX1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC878-SK000001 TO JH2SC878-SK099999 PARKING BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, PARKING BRAKE

06436-MCT-016

$43.42

2

SPRING, PAD

43208-MCT-006

$4.75

3

PIN, HANGER

43215-MCT-006

$6.39

4

CALIPER SUB-ASSY., RR. (NISSIN)

43250-MKA-D51

$273.31

5

BRACKET SUB-ASSY., PARKING BRAKE

43290-MKA-D51

$30.97

6

ARM

43362-MGS-D71

$11.56

7

SLEEVE

45111-MCT-006

$8.26

8

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

9

BOOT, PIN

45133-166-016

$3.85

10

DUST SEAL, MASTER CYLINDER

46184-611-000

$10.61

11

BOLT, FLANGE (8X28)

90101-MLA-A50

$5.26

12

BOLT, FLANGE (8X42)

90180-MGS-D71

$3.92

13

NUT-WASHER (8MM)

90313-HE0-006

$4.46

14

DUST SEAL (20X25X4) (NOK)

91208-PF5-005

$5.28
