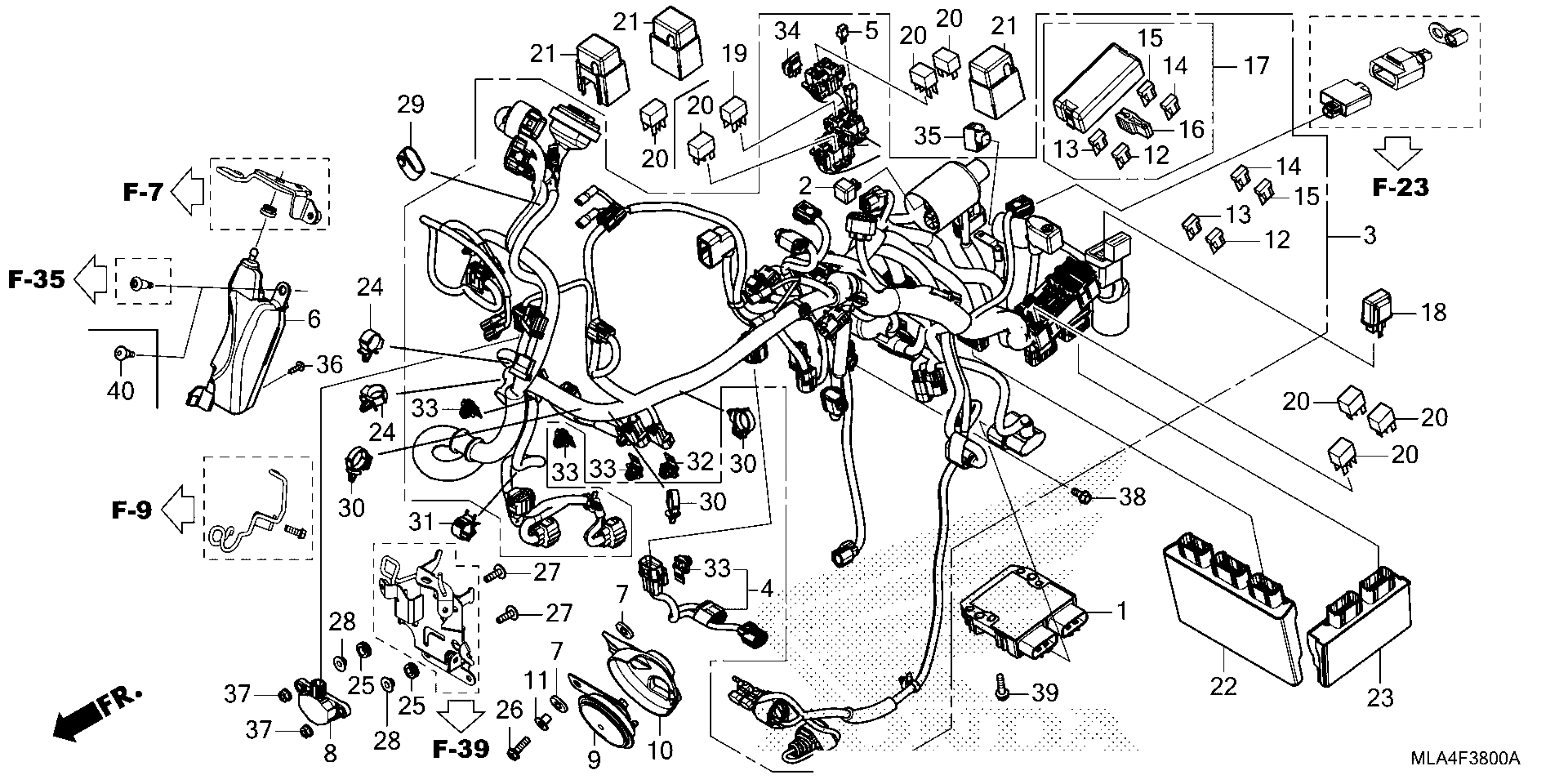

Honda CMX1100DAC (23) MOTORCYCLE, JPN, VIN# JH2SC831-PK200001 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$173.16

2

RECTIFIER, SILICON

31700-MM8-610

$23.09

3

WIRE HARNESS

32100-MLA-A70

$1,548.43

4

SUB-HARNESS, ENGINE

32101-MLA-A50

$36.59

5

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$13.70

6

BOX ASSY., CONNECTOR

33460-MLA-A00

$18.32

7

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

8

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$100.22

9

HORN (HIGH)

38110-MGZ-J01

$25.68

10

HEAT GUARD, HORN

38111-MGZ-J00

$3.87

11

COLLAR, HORN SETTING

38117-MGZ-J00

$1.60

12

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.96

13

FUSE, BLADE (10A)

38221-SNA-A41

$2.96

14

FUSE, BLADE (20A)

38221-SNA-A61

$3.44

15

FUSE, BLADE (30A)

38221-SNA-A81

$2.24

16

PULLER, MINI FUSE

38235-SNA-A01

$3.55

17

COVER ASSY., POWER BOX

38255-MLA-A51

$25.26

18

RELAY, TURN SIGNAL

38301-KZZ-J01

$52.56

19

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$12.03

20

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$12.03

21

COVER, RELAY (2P)

38506-KZZ-900

$3.34

22

PGM-FI UNIT

38770-MLA-A71

$1,481.16

23

PGM-DCT UNIT

38780-MLA-A71

$610.24

24

CLIP, RETURN HOSE

53781-SE0-952

$7.00

25

RUBBER, SIDE COVER

64535-MFJ-D00

$1.79

26

BOLT, FLANGE (6X20)

90031-GHB-660

$2.01

27

SCREW, PAN (6X20)

90118-MEJ-J00

$1.97

28

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.12

29

BAND, RUBBER (70)

90651-MKH-D20

$2.98

30

CLAMP, HARNESS

90652-HC4-003

$5.68

31

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

32

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.85

33

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

34

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

35

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$7.87

36

SCREW, TAPPING (4X12)

93903-24380

Unavailable

37

NUT, FLANGE (6MM)

94050-06070

$1.34

38

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

39

BOLT, FLANGE (6X22)

95701-06022-07

$0.87
