Description

Price

1

CASE, DRIVE CHAIN

40510-MLA-A00

$79.69

2

MASTER LINK (RK JAPAN)

40531-MLA-A02

$12.21

3

CHAIN, DRIVE (RK JAPAN) (RKBP525MRO-120LJFZ) (STANDARD LINK 114L)

40540-MLA-A02

$216.89

4

BOLT, CHAIN ADJUSTING

40542-K87-A00

$2.00

5

ADJUSTER, CHAIN

40543-MLA-A00

$27.25

6

CAP, SWINGARM END

40546-MLA-A00

$14.73

7

BOLT, SWINGARM PIVOT

52101-MLA-A00

$57.10

8

BOLT, PIVOT ADJUSTING

52109-MLA-A00

$13.07

9

COLLAR A, PIVOT

52141-MKS-E00

$5.18

10

COLLAR, L. PIVOT DISTANCE

52142-MLA-A00

$11.31

11

COLLAR, R. PIVOT DISTANCE

52143-MLA-A00

$11.31

12

SLIDER, CHAIN

52170-MLA-A00

$33.11

13

SWINGARM SUB-ASSY., RR.

52200-MLA-A00

$748.08

14

BOLT, FLANGE (6X14)

90013-GHB-620

$2.33

15

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

16

NUT, U (10MM)

90301-MLA-A01

$3.36

17

NUT, U (16MM)

90305-GW2-711

$16.36

18

WASHER, PLAIN (6MM)

90404-GE2-760

$2.13

19

WASHER, PLAIN (16.4X32X2)

90501-K87-A00

$1.54

20

CIRCLIP (INNER) (20)

90651-K87-A00

$1.61

21

BEARING, NEEDLE (NTN)

91071-MT7-003

$24.23

22

DUST SEAL (25X33X4)

91202-MAL-601

$6.96

23

OIL SEAL (24X31X3.5) (NOT AVAILABLE)

91203-GC8-003

$9.49

24

DUST SEAL (23X35X5)

91214-MAL-601

$8.21

25

WASHER, PLAIN (10MM)

94101-10700

$1.49

26

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

27

BEARING, RADIAL BALL (6003)

96100-60030-10

$14.15

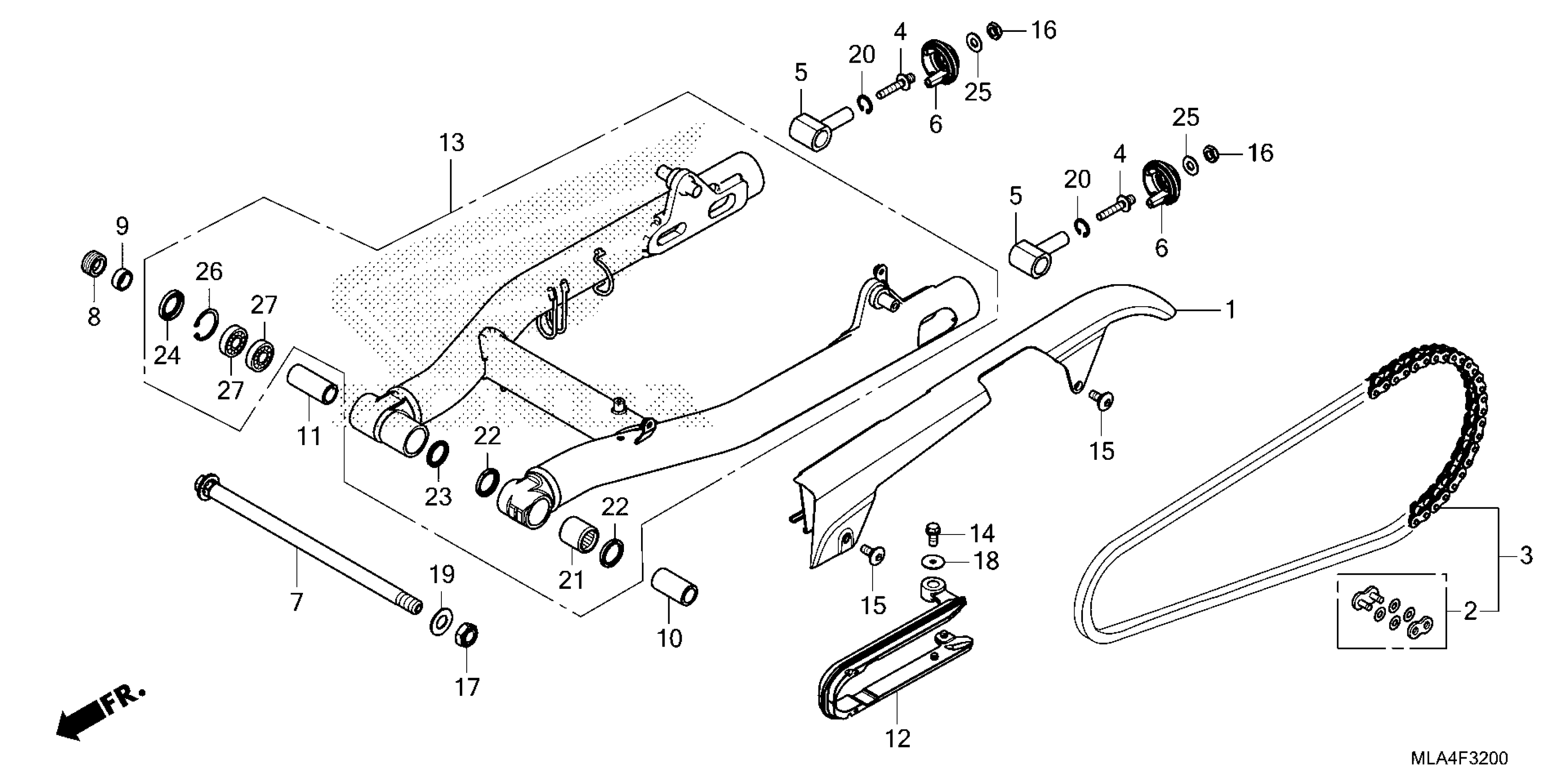

Honda CMX1100DAC (23) MOTORCYCLE, JPN, VIN# JH2SC831-PK200001 SWINGARM Diagram
