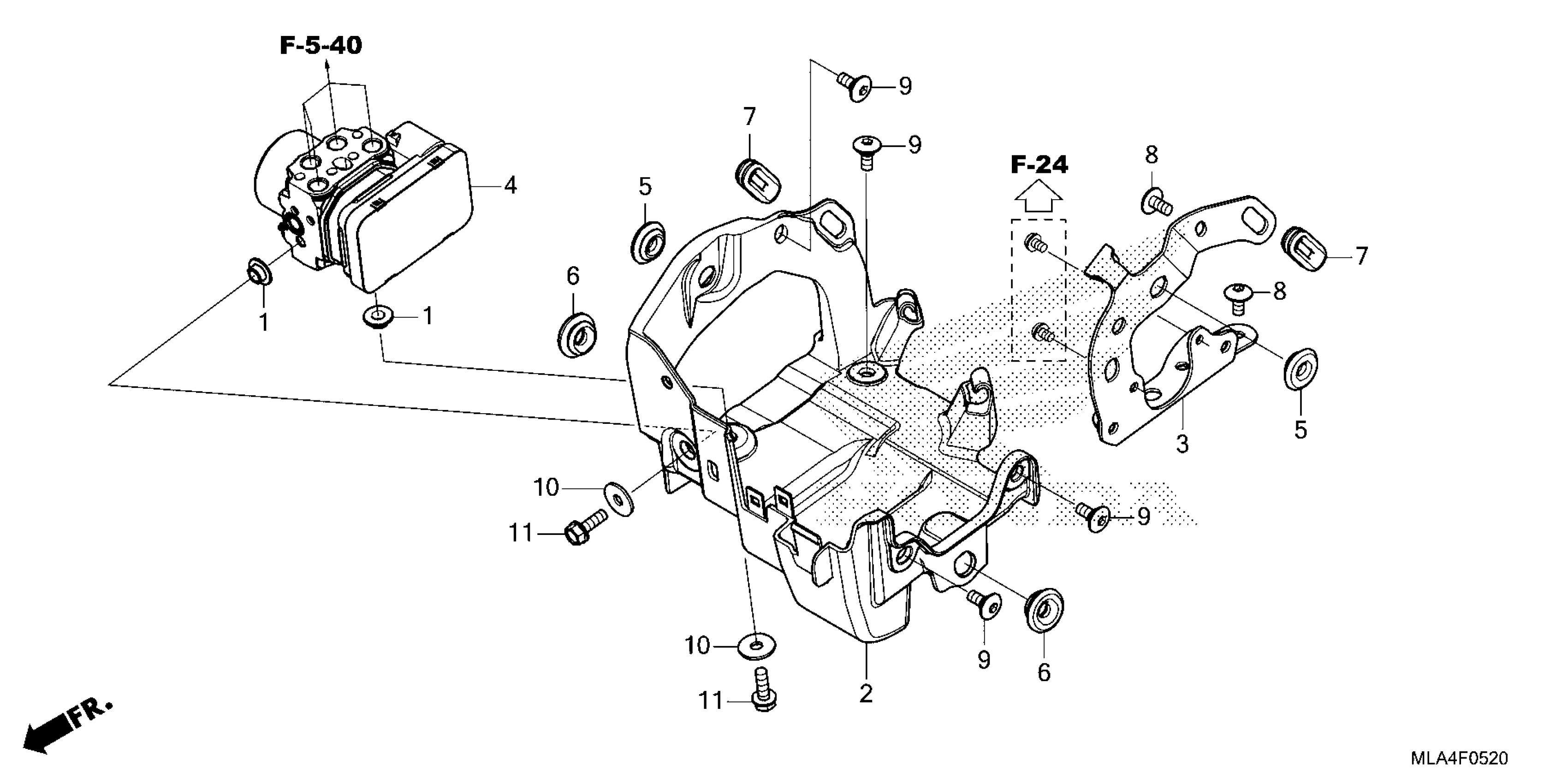

Honda CMX1100DAC (23) MOTORCYCLE, JPN, VIN# JH2SC831-PK200001 ABS MODULATOR Diagram

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$5.12

STAY, ABS MODULATOR

50345-MLA-A00

$19.97

STAY, COMBINATION SWITCH

50348-MLA-A00

$32.87

MODULATOR ASSY. This part replaces 57110-MLA-A01.

57110-MLA-A02

$1,280.15

GROMMET, SIDE COVER

83551-376-000

$2.97

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

SCREW, PAN (6X12)

90106-MAV-000

$2.18

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X18)

95701-06018-08

$1.62
