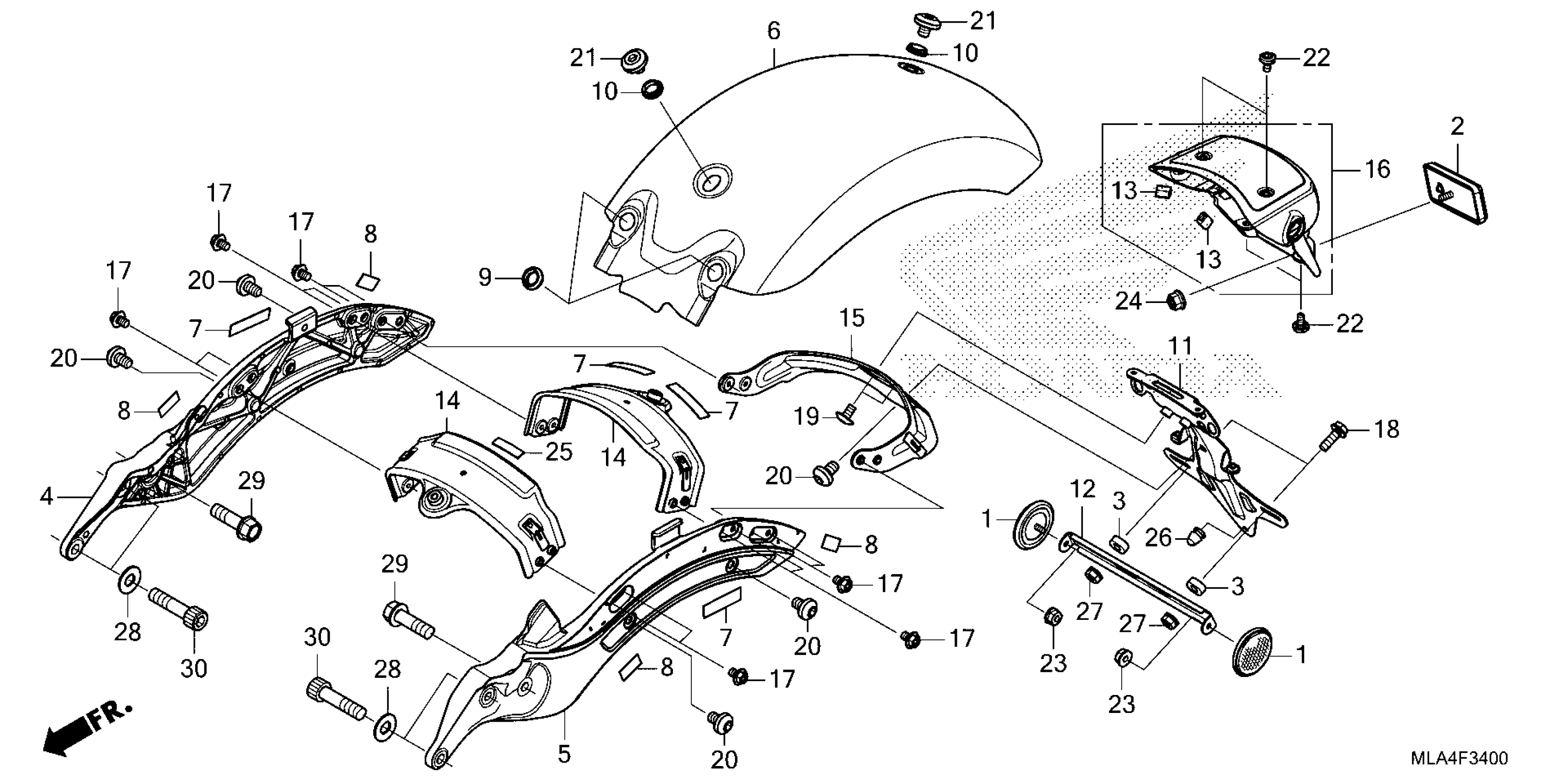

Honda CMX1100DAC (22) MOTORCYCLE, JPN, VIN# JH2SC831-NK100001 TO JH2SC831-NK199999 REAR FENDER Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

2

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

3

COLLAR, CABLE CLAMP

44835-167-830

$3.14

4

FRAME, R. RR. *NH105* (MAT BLACK)

50241-MLA-A00ZA

$105.79

5

FRAME, L. RR. *NH105* (MAT BLACK)

50246-MLA-A00ZA

$105.79

6

FENDER, RR. *R337M* (BORDEAUX RED METALLIC)

80100-MLA-A00ZA

$266.43

6

FENDER, RR. *NHC52M* (GUNMETAL BLACK METALLIC)

80100-MLA-A00ZC

$266.43

6

FENDER, RR. *YR347P*

80100-MLA-A00ZD

$261.97

7

RUBBER, RR. FENDER

80102-K87-A00

$2.51

8

RUBBER, RR. FRAME

80102-MLA-A00

$2.00

9

RUBBER, TAILLIGHT CODE

80103-K87-A00

$3.16

10

COLLAR, RR. FENDER

80109-MLA-A00

$3.24

11

STAY A, RR. FENDER

80115-MLA-A00

$75.57

12

STAY, RR. SIDE REFLECTOR

80116-K87-A30

$13.39

13

RUBBER, PROTECTOR

80119-MGE-300

$2.98

14

BRACE A, RR. FRAME

80125-MLA-A00

$38.44

15

BRACE B, RR. FRAME

80135-MLA-A00

$44.48

16

FENDER ASSY. A, RR.

80150-MLA-A00

$36.85

17

BOLT, FLANGE (6X8)

90026-GHB-600

$2.23

18

BOLT, FLANGE (6X18)

90031-GHB-650

$2.15

19

SCREW, PAN (6X10)

90106-GBB-710

$1.49

20

BOLT, SOCKET SPECIAL (8X12)

90109-K87-A00

$1.49

21

BOLT, SOCKET SPECIAL (8X9)

90109-MLA-A00

$3.36

22

BOLT, SPECIAL (5X10)

90138-K87-A30

$1.49

23

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

24

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

25

RUBBER

90311-H06-000

$1.49

26

PLUG, CONE TYPE

90899-422-610

$1.89

27

NUT, FLANGE (6MM)

94050-06070

$1.49

28

WASHER, PLAIN (10MM)

94101-10700

$1.49

29

BOLT, FLANGE (10X32)

95701-10032-07

$1.77

30

BOLT, SOCKET (10X40)

96700-10040-07

$1.49
