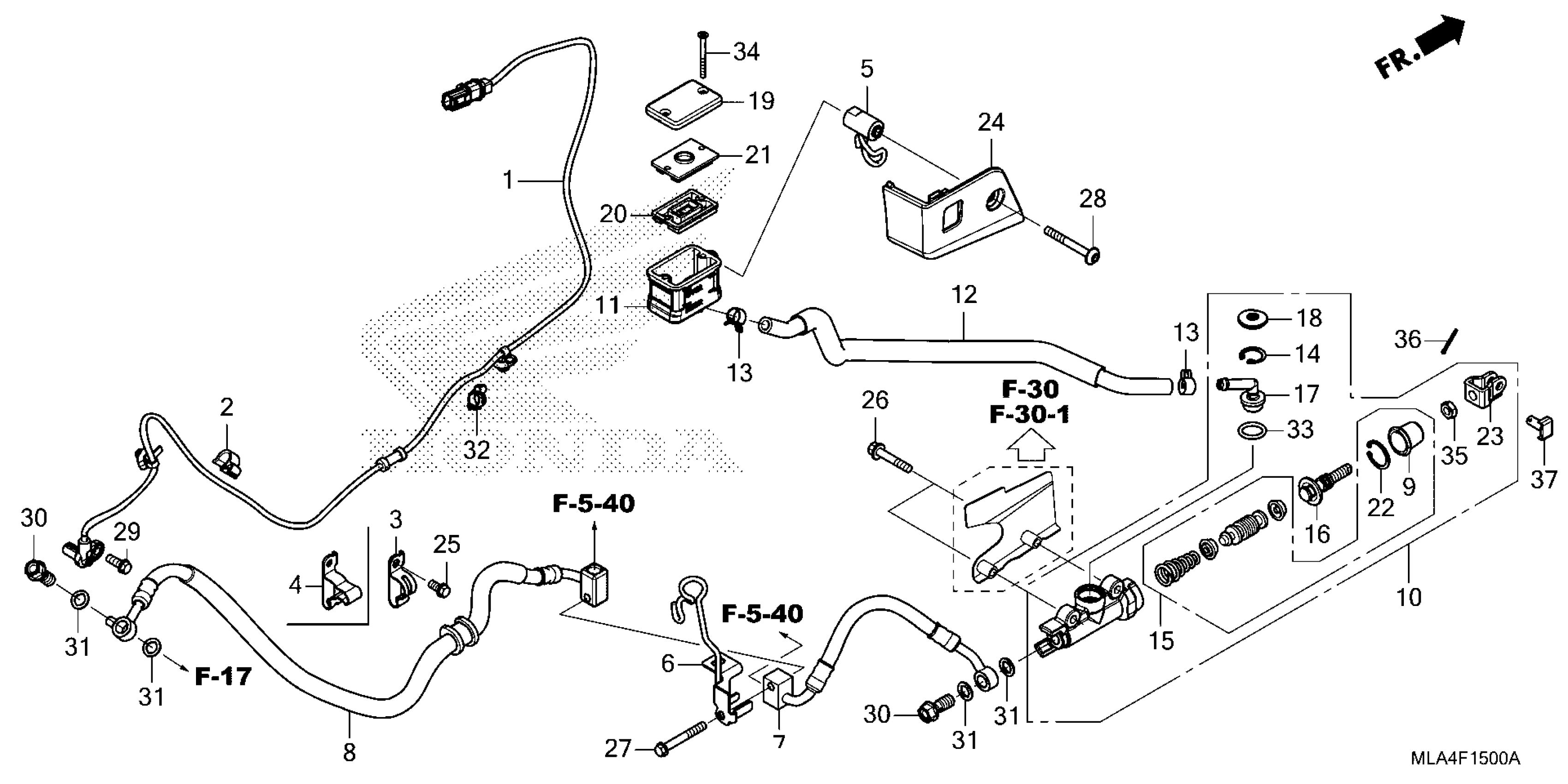

Honda CMX1100DAC (22) MOTORCYCLE, JPN, VIN# JH2SC831-NK100001 TO JH2SC831-NK199999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SENSOR, RR. WHEEL SPEED

38510-MLA-A01

$165.14

2

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.48

4

CLAMP, BRAKE HOSE

43155-MLA-A50

$6.54

5

COLLAR, OIL CUP

43156-MLA-A00

$11.17

6

GUIDE, RR. MASTER CYLINDER HOSE

43157-MLA-A00

$8.83

7

HOSE A, RR. BRAKE

43314-MLA-A01

$42.49

8

HOSE D, RR. BRAKE

43317-MLA-A01

$58.59

9

BOOT

43504-MB2-006

$9.01

10

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MLA-A01

$117.94

11

CUP, OIL

43511-KV3-831

$21.29

12

HOSE, RR. BRAKE MASTER CYLINDER

43512-MLA-A01

$18.51

13

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

14

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

15

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

16

ROD, PUSH

43530-KAE-006

$26.29

17

CONNECTOR, MASTER CYLINDER (NISSIN)

45503-KV3-006

$8.44

18

COVER, DUST (NISSIN)

45505-KV3-006

$3.87

19

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

19

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

20

DIAPHRAGM

45520-MG7-006

$9.52

21

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

22

CIRCLIP

46182-MEL-D21

$1.77

23

JOINT, BRAKE ROD

46504-KV6-702

$7.30

24

COVER, OIL CUP

80112-MLA-A00

$7.41

25

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.12

26

BOLT, FLANGE (6X35)

90013-GHB-700

$2.03

27

BOLT, FLANGE (6X45)

90013-GHB-720

$0.86

28

BOLT, SOCKET SPECIAL (6X50)

90113-K87-A00

$0.52

29

BOLT, FLANGE (6X16)

90116-MKA-D80

$1.96

30

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

31

WASHER, OIL BOLT

90545-300-000

$3.72

32

CLIP, CABLE (10MM)

90690-MJE-D11

$2.01

33

O-RING (14.8X2.4)

91212-422-006

Unavailable

34

SCREW, FLAT (4X40)

93600-04040-1G

$0.43

35

NUT, HEX. (8MM)

94002-08000-0S

$1.19

36

PIN, COTTER (2.0X15)

94201-20150

$0.94

37

PIN D, JOINT

95015-54000

$3.95
