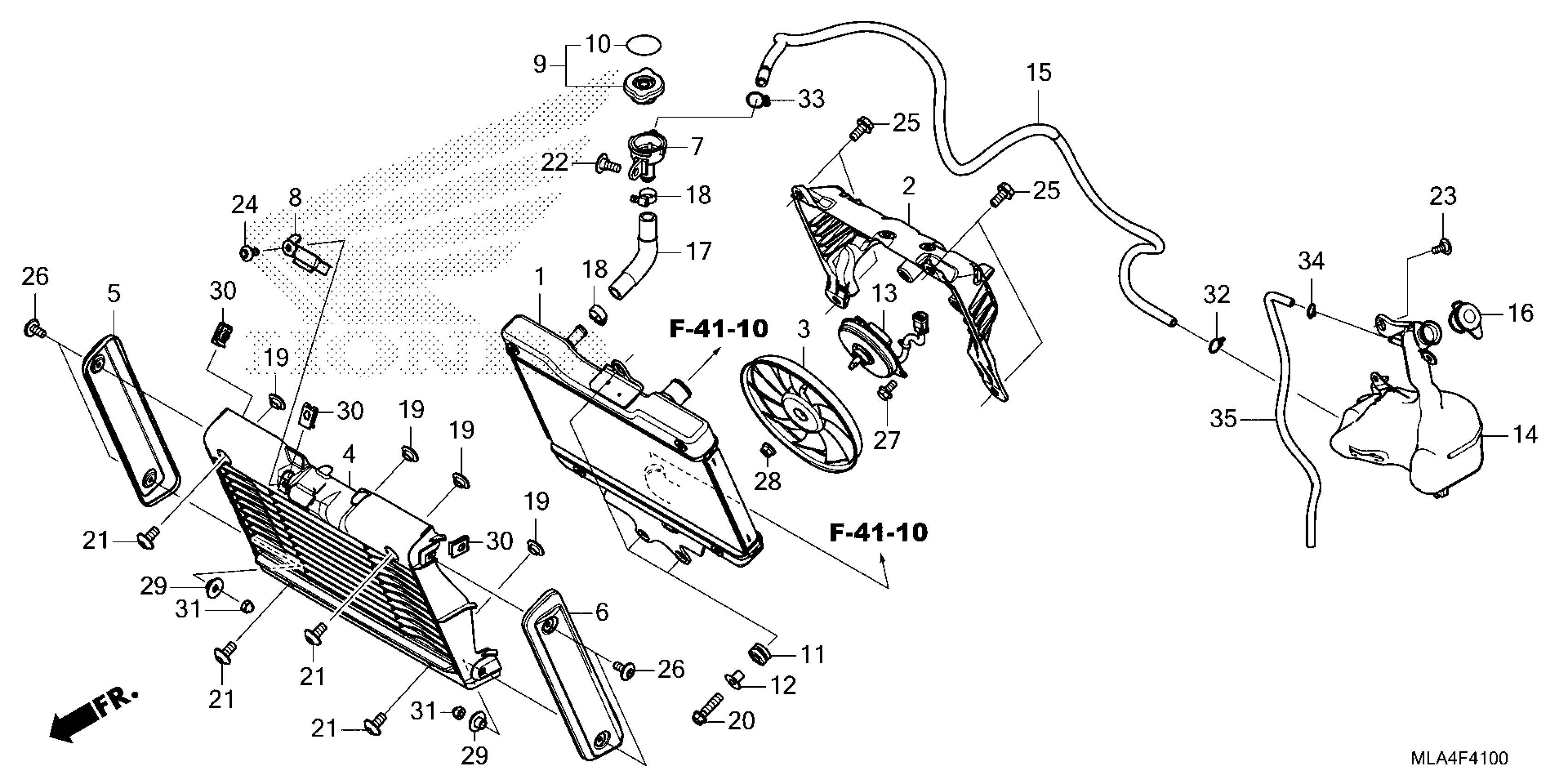

Honda CMX1100DAC (22) MOTORCYCLE, JPN, VIN# JH2SC831-NK100001 TO JH2SC831-NK199999 RADIATOR@RESERVE TANK Diagram

#

Description
Price

1

RADIATOR (TOYO)

19010-MLA-A01

$683.38

2

SHROUD

19015-MLA-A01

$73.57

3

FAN, COOLING

19020-MFG-D01

$38.72

4

GRILLE, RADIATOR

19032-MLA-A00

$160.85

5

COVER, R. RADIATOR SIDE

19033-MLA-A00

$26.73

6

COVER, L. RADIATOR SIDE

19034-MLA-A00

$28.36

7

FILLER, NECK

19035-KVZ-631

$27.82

8

BAND, HARNESS

19036-MLA-A00

$4.30

9

CAP, RADIATOR

19037-GEE-710

$30.28

10

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

12

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

13

MOTOR ASSY., FAN (TOYO)

19080-MLA-A01

$225.54

14

TANK, RADIATOR RESERVE

19101-MLA-A00

$45.30

15

TUBE ASSY., RESERVE TANK

19102-MLA-A00

$20.46

16

CAP, RESERVE TANK

19109-KBP-900

$1.64

17

HOSE, FILLER NECK

19504-MLA-A00

$13.64

18

CLAMP, WATER HOSE (A)

19505-KS6-700

$11.06

19

COLLAR, FR. FENDER

61105-MA3-000

$3.80

20

BOLT, FLANGE (6X22)

90021-GHB-670

$2.18

21

BOLT, SOCKET SPECIAL (6X12)

90101-K87-A00

$1.49

22

SCREW, PAN (6X14)

90106-KBV-000

$3.90

23

BOLT, FR. DISK COVER (FOR RR.)

90114-MAC-780

$3.10

24

SCREW, SPECIAL (5X10.5)

90114-MLA-A00

$2.61

25

BOLT-WASHER (6X14)

90120-GHB-611

$2.67

26

BOLT, SOCKET (5X12)

90154-MLA-A00

$2.72

27

BOLT, FLANGE (5X10)

90196-MBB-003

$2.66

28

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

29

COLLAR

90505-MGZ-A00

$1.79

30

NUT, CLIP (5MM)

90677-KAN-961

$4.07

31

NUT, CAP (5MM)

94021-05070-0S

$1.49

32

CLIP, TUBE (B10)

95002-02100

$1.90

33

CLIP, TUBE (B12)

95002-02120

$2.00

34

CLIP, TUBE (C9)

95002-50000

$1.49

35

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

$20.85
