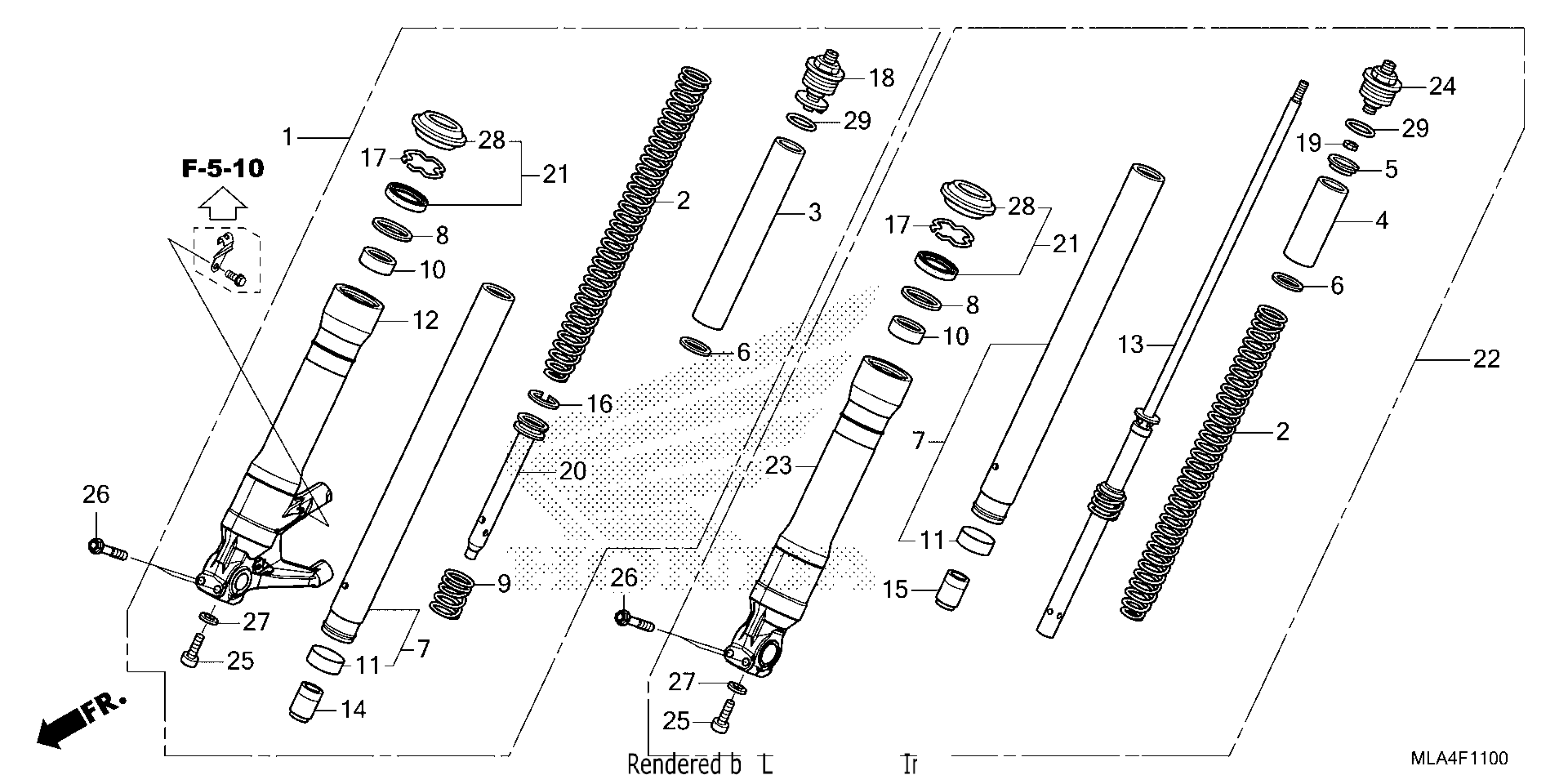

Honda CMX1100DAC (22) MOTORCYCLE, JPN, VIN# JH2SC831-NK100001 TO JH2SC831-NK199999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MLA-A01

$633.43

2

SPRING, FR. FORK

51401-MLA-A01

$79.56

3

COLLAR, SPRING (R. SIDE)

51402-ML7-921

$24.38

4

COLLAR, SPRING (L. SIDE)

51402-MS2-003

$16.46

5

SEAT, SPRING

51404-MR7-003

$10.43

6

SEAT, SPRING

51405-KA4-711

$5.95

7

PIPE, FR. FORK

51410-MLA-A01

$307.50

8

RING, BACK-UP

51412-KA4-711

$8.88

9

SPRING, REBOUND

51412-MLA-A01

$5.64

10

BUSH, GUIDE

51414-MFN-D01

$6.75

11

BUSH, SLIDER

51415-MFN-D01

$28.09

12

CASE, R. (LOWER)

51420-MLA-A01

$394.50

13

DAMPER, FR.

51430-MLA-A01

$271.87

14

PIECE, OIL LOCK (SHOWA)

51432-KV3-701

$16.59

15

PIECE, OIL LOCK (SHOWA)

51432-MS2-003

$29.47

16

RING, PISTON

51437-MJS-J71

$4.85

17

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

18

BOLT, FR. FORK

51450-MLA-A01

$52.94

19

NUT, HEX. (10MM)

51451-MAJ-G41

$2.68

20

PIPE, SEAT

51470-MLA-A01

$30.96

21

SEAL SET, FR. FORK

51490-MFL-003

$18.22

22

FORK ASSY., L. FR. (SHOWA)

51500-MLA-A01

$797.60

23

CASE, L. (LOWER)

51520-MLA-A01

$412.28

24

BOLT, FR. FORK

51550-MLA-A01

$48.43

25

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

Unavailable

26

BOLT (8X45)

90134-MEL-000

$2.80

27

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

28

DUST SEAL

91254-MEJ-013

$11.51

29

O-RING (35.2X2.4)

91356-KA4-711

$3.59
