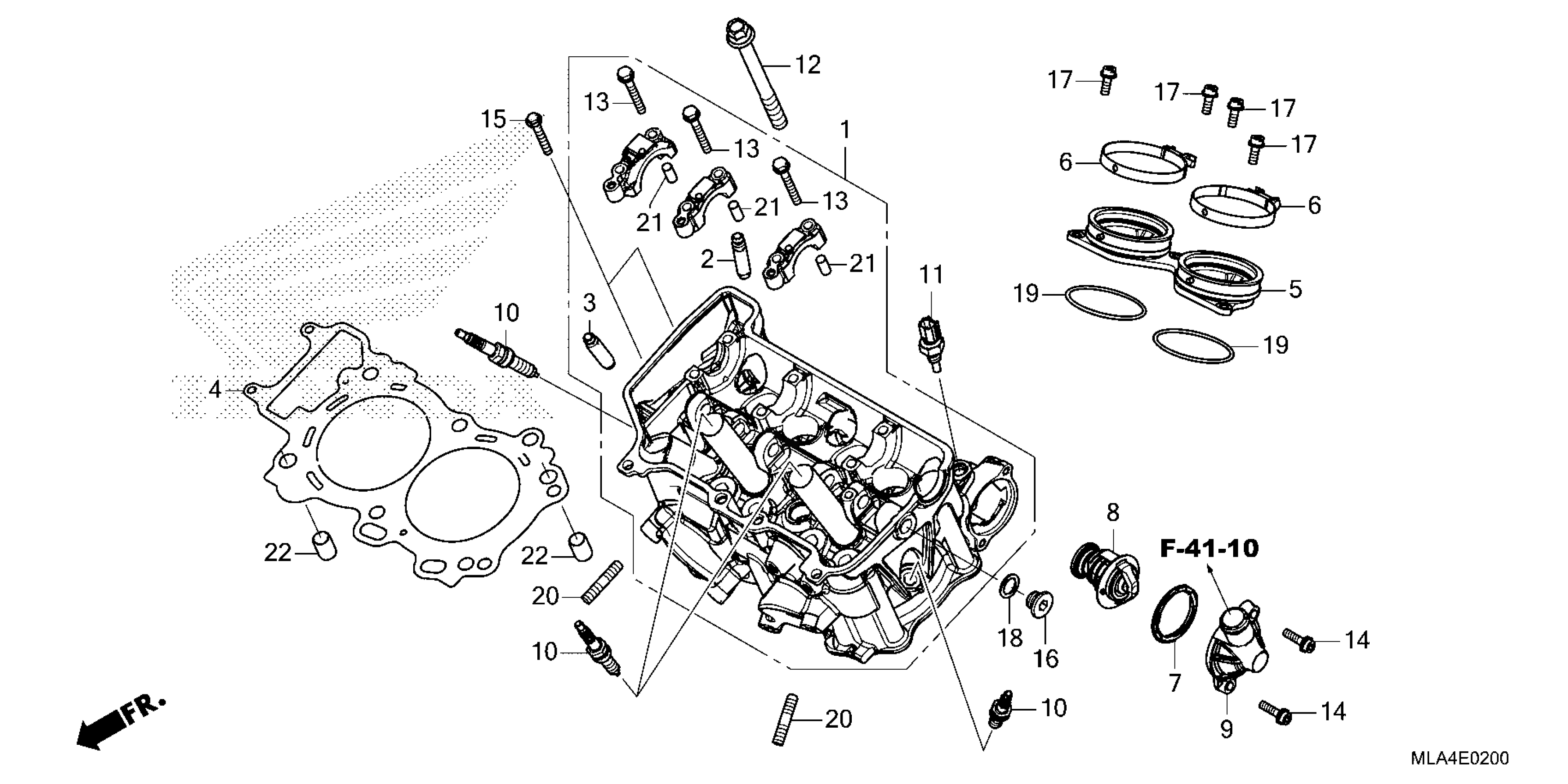

Honda CMX1100DAC (22) MOTORCYCLE, JPN, VIN# JH2SC831-NK100001 TO JH2SC831-NK199999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MLA-A00

$1,898.11

GUIDE, VALVE (OVER SIZE)

12204-HL4-305

$16.90

GUIDE, EX. VALVE (OVER SIZE)

12205-HL4-305

$15.94

GASKET, CYLINDER HEAD

12251-MKS-E01

$47.62

INSULATOR, THROTTLE BODY

16210-MKS-E00

$78.08

BAND, INSULATOR

16217-MKS-E00

$10.74

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

THERMOSTAT

19320-MFJ-D01

$34.46

COVER, THERMOSTAT

19321-MLA-A00

$36.11

SPARK PLUG (SILMAR8A9S) (NGK)

31909-MJP-G51

$30.11

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$49.80

BOLT-WASHER (12X123)

90007-MKS-E00

$9.77

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

BOLT, FLANGE (6X22)

90026-GHB-670

$2.43

BOLT, FLANGE (6X40)

90026-GHB-740

$2.39

BOLT, SEALING (14MM)

90032-MJP-G50

$6.75

BOLT, FLANGE SOCKET (6X16)

90071-MEL-000

$2.25

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

O-RING (49.3X2.5)

91301-MKS-E00

$7.03

BOLT, STUD (8X25)

92900-08025-0B

$2.20

PIN, DOWEL (8X20) (Honda Code 1417369)

94301-08200

$2.25

PIN A, DOWEL (14X20)

94301-14200

$2.28
