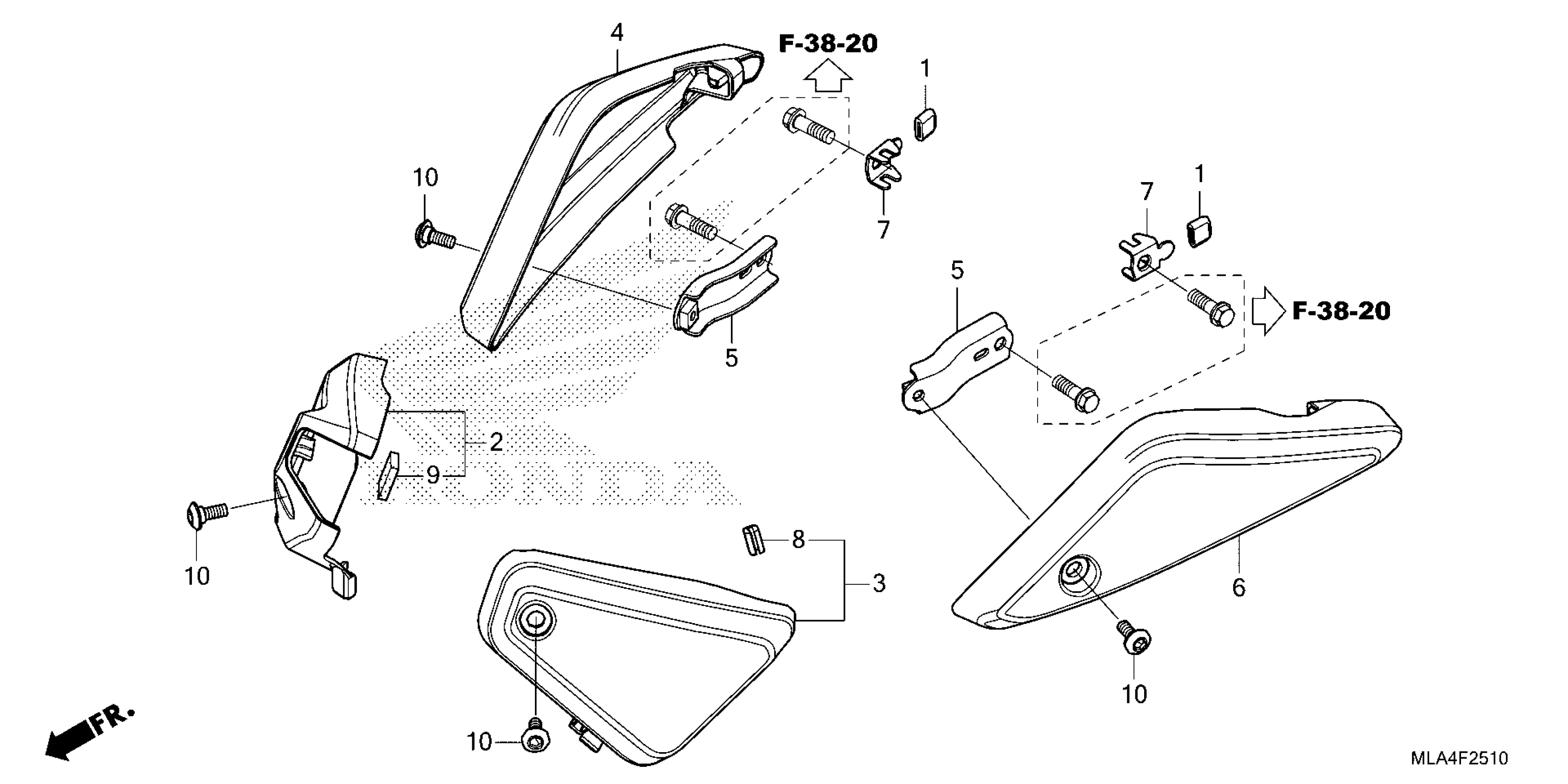

Honda CMX1100DAC (22) MOTORCYCLE, JPN, VIN# JH2SC831-NK100001 TO JH2SC831-NK199999 AIR CLEANER SIDE COVER Diagram

#

Description

Price

1

RUBBER, PROTECTOR GASKET This part replaces 18293-GE8-000.

18293-147-000

$4.04

1

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

2

COVER ASSY., R. FR. AIR CLEANER

64210-MLA-A00

$8.69

3

COVER ASSY., L. FR. AIR CLEANER

64220-MLA-A00

$8.69

4

COVER, R. RR. AIR CLEANER

64310-MLA-A00

$6.80

5

STAY A, RR. AIR CLEANER COVER

64311-MLA-A00

$4.30

6

COVER, L. RR. AIR CLEANER

64320-MLA-A00

$6.80

7

STAY B, RR. AIR CLEANER COVER

64321-MLA-A00

$2.59

8

RUBBER, PROTECTOR

80119-MGE-300

$2.98

9

RUBBER, SIDE COVER

83609-KV3-300

$14.31

10

SCREW, PAN (5X13)

90112-MLA-A00

$2.92
