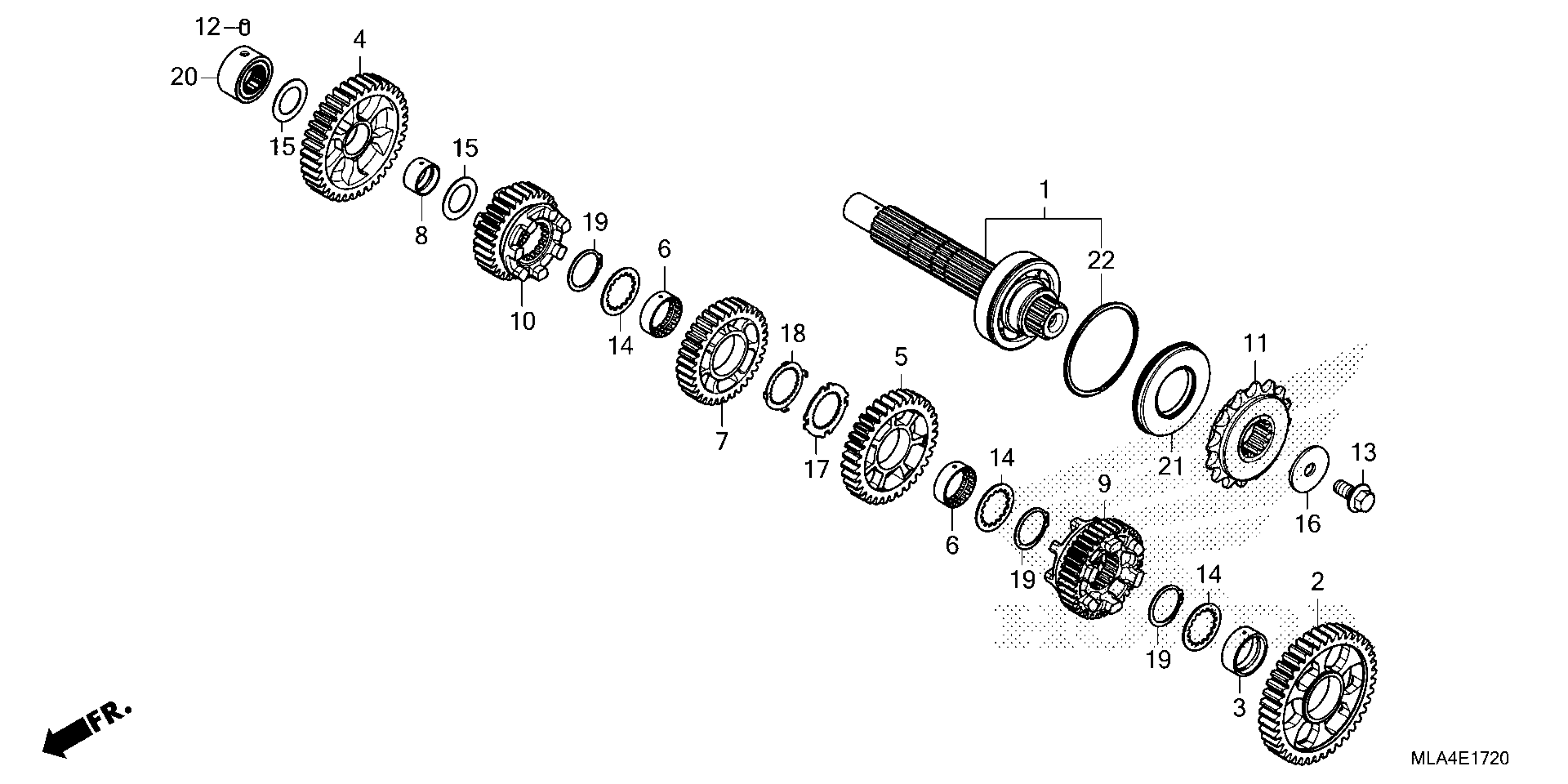

Honda CMX1100DAC (21) MOTORCYCLE, JPN, VIN# JH2SC831-MK000001 TO JH2SC831-MK099999 TRANSMISSION (3) Diagram

COUNTERSHAFT

23220-MJP-G80

$181.31

GEAR, COUNTERSHAFT FIRST (41T)

23421-MKS-E50

$125.18

COLLAR (30X35X13)

23422-HL4-000

$17.74

GEAR, COUNTERSHAFT SECOND (37T)

23441-MKS-E50

$119.74

GEAR, COUNTERSHAFT THIRD (33T)

23461-MKS-E50

$115.21

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

GEAR, COUNTERSHAFT FOURTH (34T)

23481-MKS-E50

$115.21

COLLAR (22X13)

23495-KY1-000

$20.90

GEAR, COUNTERSHAFT FIFTH (36T)

23501-MKS-E50

$133.21

GEAR, COUNTERSHAFT SIXTH (30T)

23521-MKS-E50

$128.72

SPROCKET, DRIVE (16T)

23801-MEE-D00

$57.74

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

WASHER, SPLINE (30X38X1.5)

90452-HL4-000

$3.03

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

CIRCLIP (30MM)

90604-MM5-000

$4.48

BEARING, NEEDLE (22MM)

91023-MM5-641

$27.05

OIL SEAL (39X72X8) | Use up to Engine SN 6013713. This part replaces 91207-MBB-003.

91207-MBB-013

$12.82

OIL SEAL (39X72X8)

91207-MBB-013

$12.82

RING, SNAP (72MM)

94560-72200

$3.74
