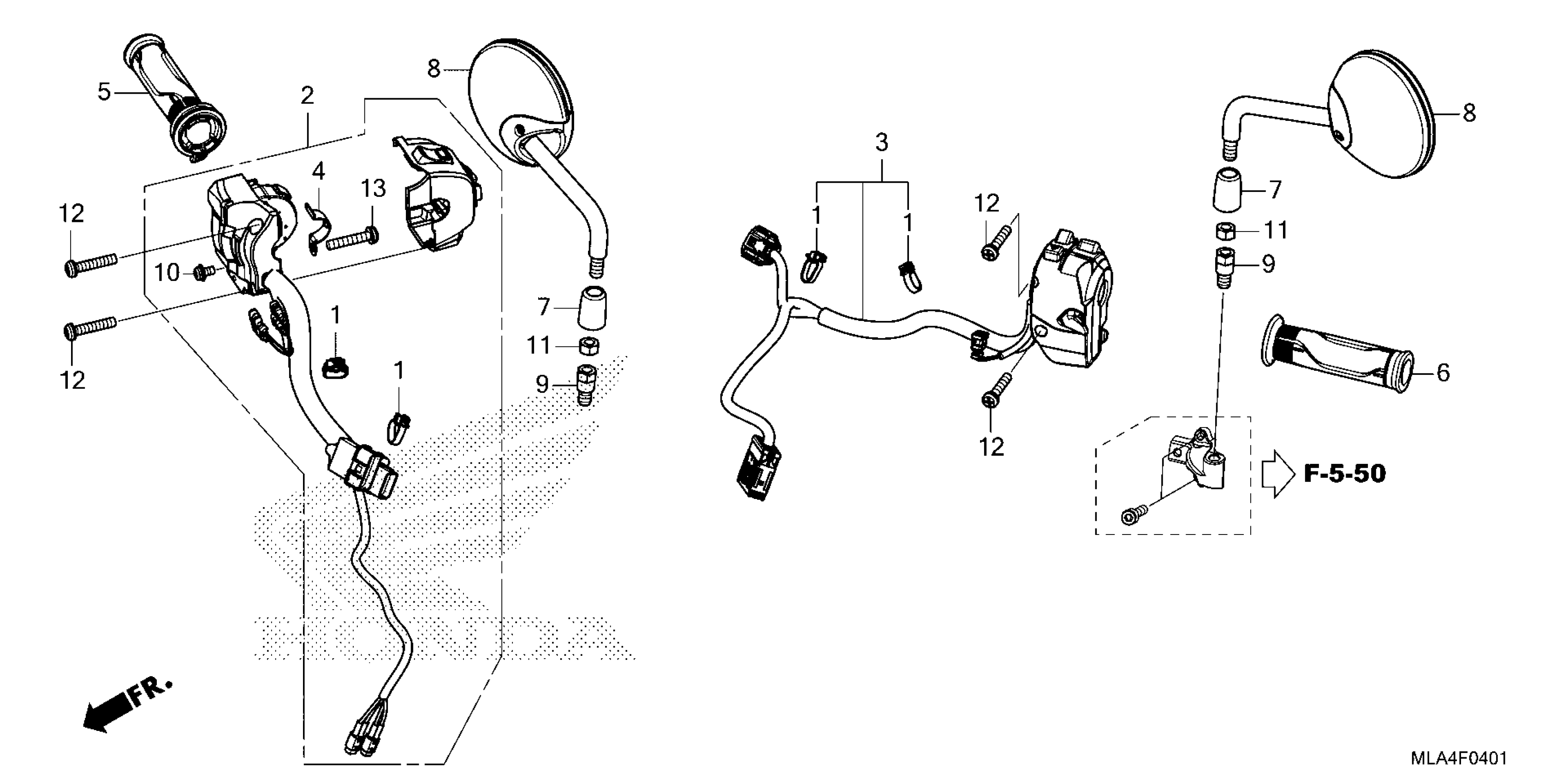

Honda CMX1100DAC (21) MOTORCYCLE, JPN, VIN# JH2SC831-MK000001 TO JH2SC831-MK099999 HANDLE SWITCH@MIRROR Diagram

BAND, WIRE HARNESS

32161-GFL-J41

$1.68

SWITCH UNIT, ENGINE STOP & D-N MODE & GRIP APS

35135-MLA-A51

$301.58

SW ASSY. This part replaces 35200-MLA-A51.

35200-MLA-A52

$194.35

PLATE A, SETTING

37971-MKS-E01

$3.77

GRIP ASSY., THROTTLE

53140-MKS-E01

$30.36

GRIP, L. HANDLE

53166-MGE-000

$15.92

CAP, LOCK NUT

88119-K87-A00

$1.97

MIRROR *NH105* (MAT BLACK) (R. SIDE)

88210-MLA-A01ZA

$29.99

BOLT, ADAPTER (10MM)

90101-K20-901

$2.17

SCREW-WASHER (4X8)

90110-MKS-E20

$1.32

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-K20-901

$0.70

SCREW-WASHER (5X25)

90508-MGE-D00

$1.17

SCREW-WASHER (5X25)

93892-05025-08

$1.22
