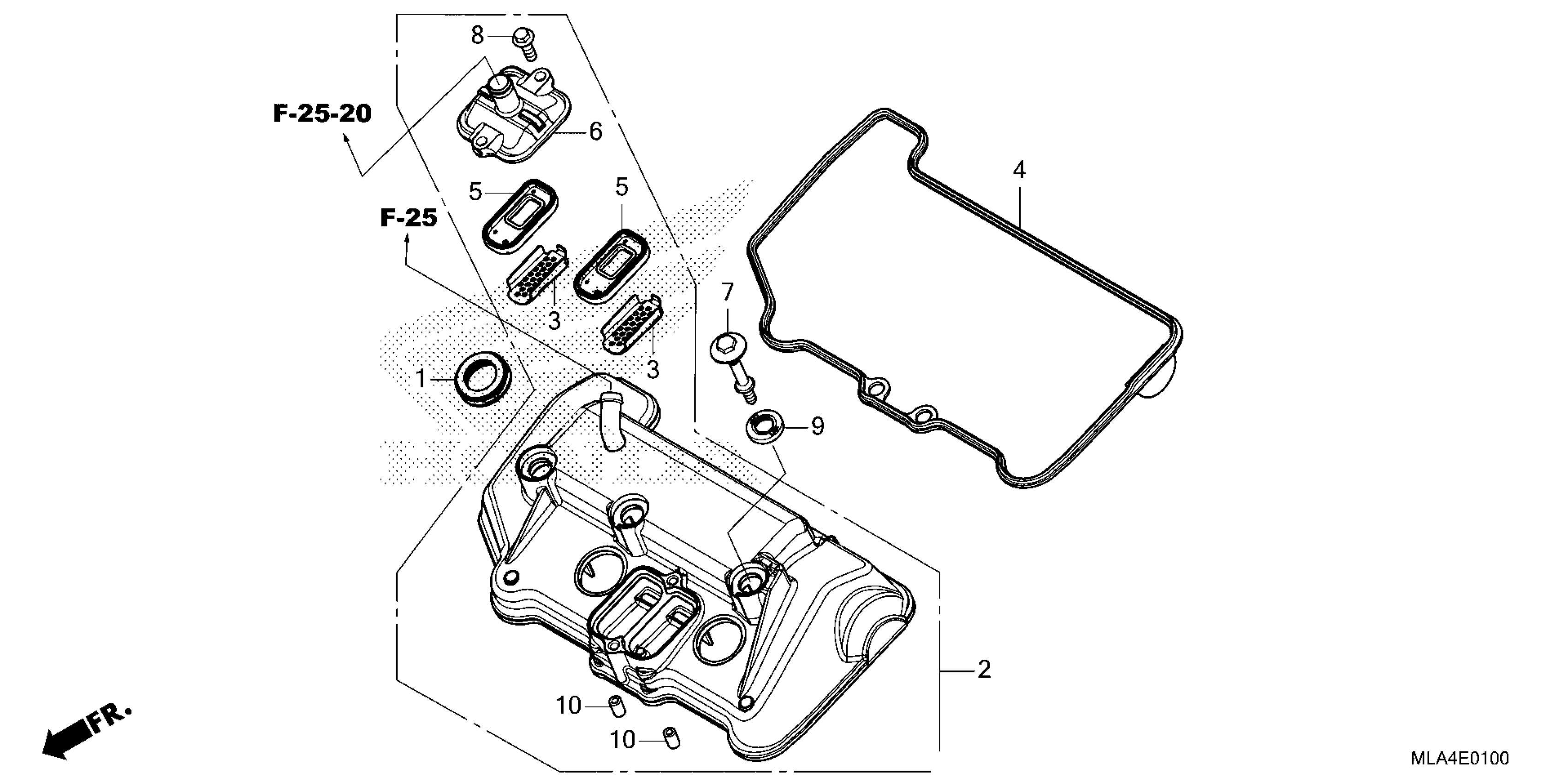

Honda CMX1100DAC (21) MOTORCYCLE, JPN, VIN# JH2SC831-MK000001 TO JH2SC831-MK099999 CYLINDER HEAD COVER Diagram

SEAL, PLUG TUBE

12229-HL4-000

$8.00

COVER, CYLN HEAD This part replaces 12300-MLA-A00.

12300-MLA-A01

$305.30

PLATE, PORT (AI)

12341-MAT-750

$13.98

GASKET, HEAD COVER

12391-HL4-000

$26.18

VALVE, REED (ARAI)

18601-KEA-741

$18.89

COVER, REED VALVE

18612-MJP-G50

$35.89

BOLT, HEAD COVER

90017-MLA-A00

$6.13

BOLT, FLANGE (6X18)

90026-GHB-650

$2.23

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.94

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28
