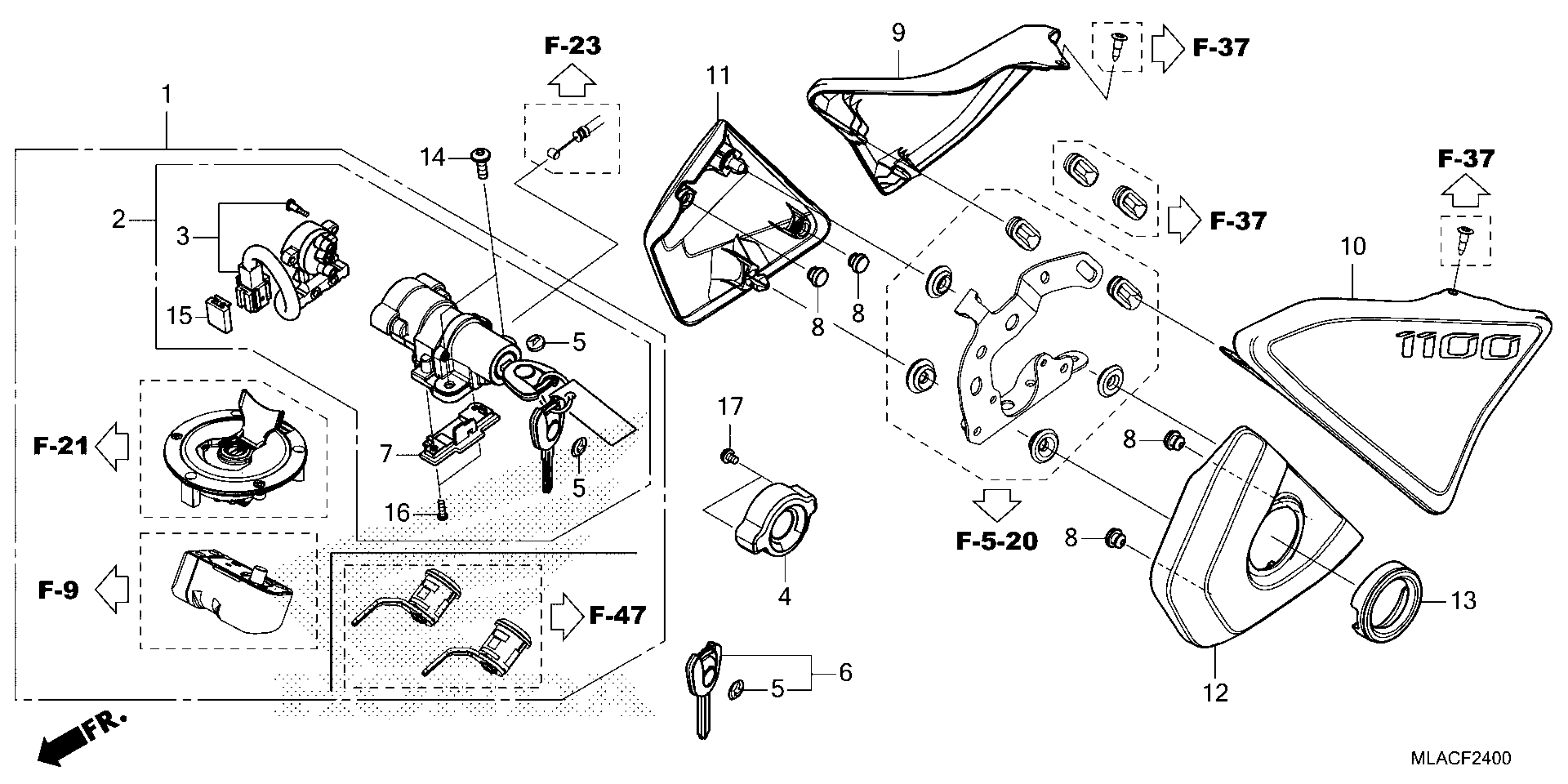

Honda CMX1100D3AC (25) MOTORCYCLE, JPN, VIN# JH2SC87M-SK000001 TO JH2SC87M-SK099999 SIDE COVER@COMBINATION SWITCH Diagram

LOCK SET

35010-MLA-A01

$502.14

SWITCH ASSY., COMBINATION & OPENER

35100-MLA-A01

$184.55

BASE, CONTACT

35101-MLA-A01

$67.78

COVER, COMBINATION SWITCH

35106-MLA-A00

$10.48

EMBLEM, KEY | (Optional).

35113-MJE-D00

$19.80

KEY, BLANK | (Optional).

35121-MJE-A02

$19.74

PLATE, BACK

35132-MLA-A01

$2.96

RUBBER, TENSIONER ARM

61112-727-000

$2.90

COVER, R. SIDE

83510-MLA-A00

$31.64

COVER, L. SIDE

83610-MLA-A00

$31.64

COVER, R. FR. SIDE

83710-MLA-A00

$8.64

COVER, L. FR. SIDE

83810-MLA-A00

$11.01

COVER, KEY

83811-MLA-A00

$3.62

BOLT, SPECIAL (6X18)

90021-MEE-940

$2.48

HOLDER, BRACKET (RED)

91554-SM4-003

$7.12

SCREW, PAN (4X12)

93500-04012-0A

$0.75

SCREW-WASHER (5X8)

93891-05008-08

$1.06
