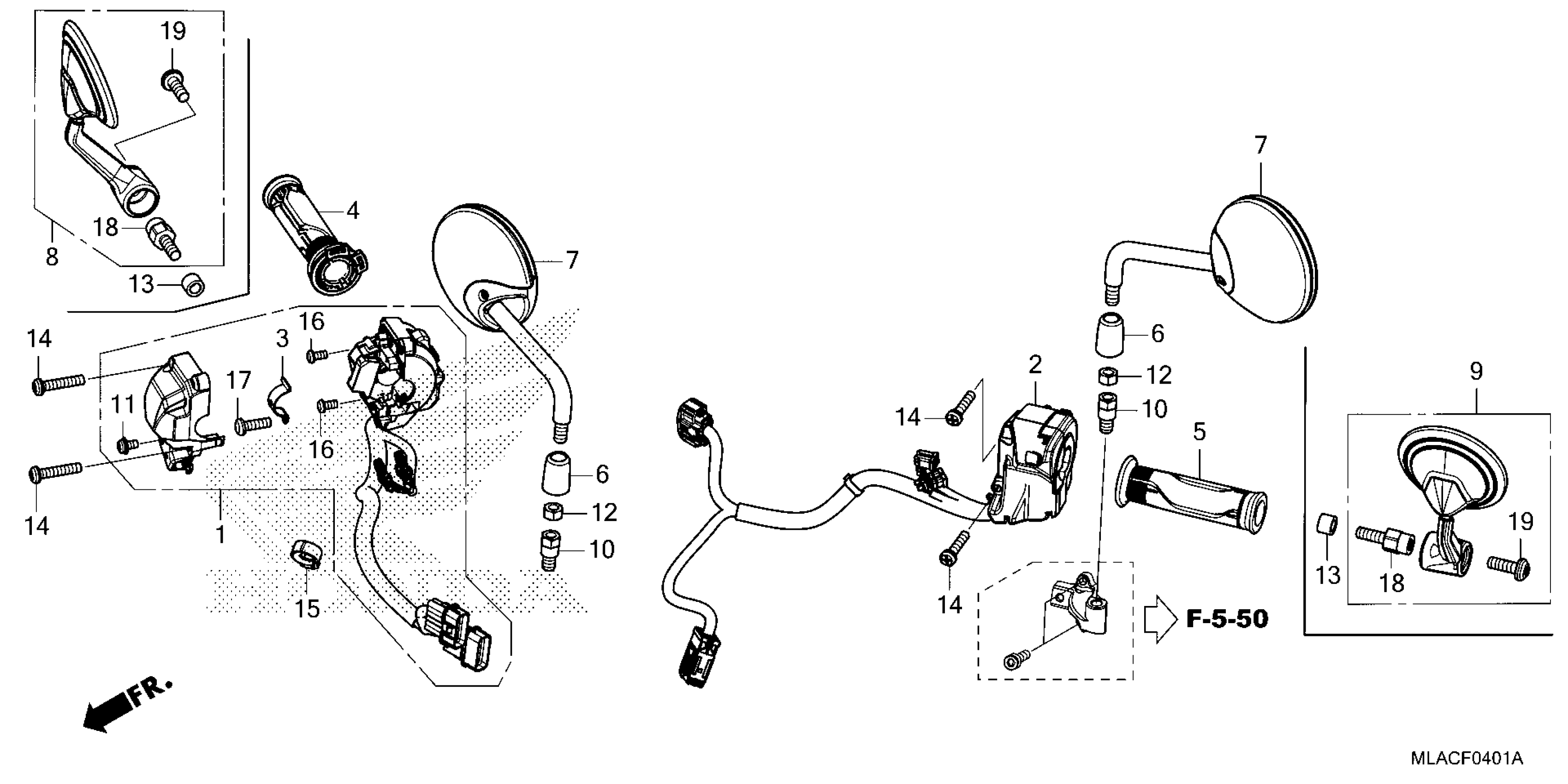

Honda CMX1100D3AC (25) MOTORCYCLE, JPN, VIN# JH2SC87M-SK000001 TO JH2SC87M-SK099999 HANDLE SWITCH@MIRROR (CMX1100D/D2/D3) Diagram

SWITCH UNIT

35135-MLA-AF1

$284.17

SWITCH ASSY.

35200-MLA-AF1

$230.65

PLATE A, SETTING

37971-MLA-AF0

$2.75

GRIP ASSY., THROTTLE

53140-MKK-D01

$32.25

GRIP, L. HANDLE

53166-MGE-000

$15.92

MIRROR, R.

88210-MLA-AH0

$119.01

MIRROR, L.

88220-MLA-AH0

$119.01

SCREW-WASHER (4X8)

90110-MKS-E20

$1.32

COLOR

90507-MLA-AH0

$4.46

SCREW-WASHER (5X25)

90508-MGE-D00

$1.17

CLIP, WIRE HARNESS

90683-KJ2-003

$3.32

SCREW-WASHER (4X8)

93892-04008-08

$1.04

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.04

SCREW-WASHER (5X8)

93892-05008-08

$0.96

BOLT, ADAPTER (10MM)

90116-MLA-AH1

$5.29

BOLT, SOCKET (10X28) (LEFT HAND THREAD)

90117-MLA-AH1

$2.09
