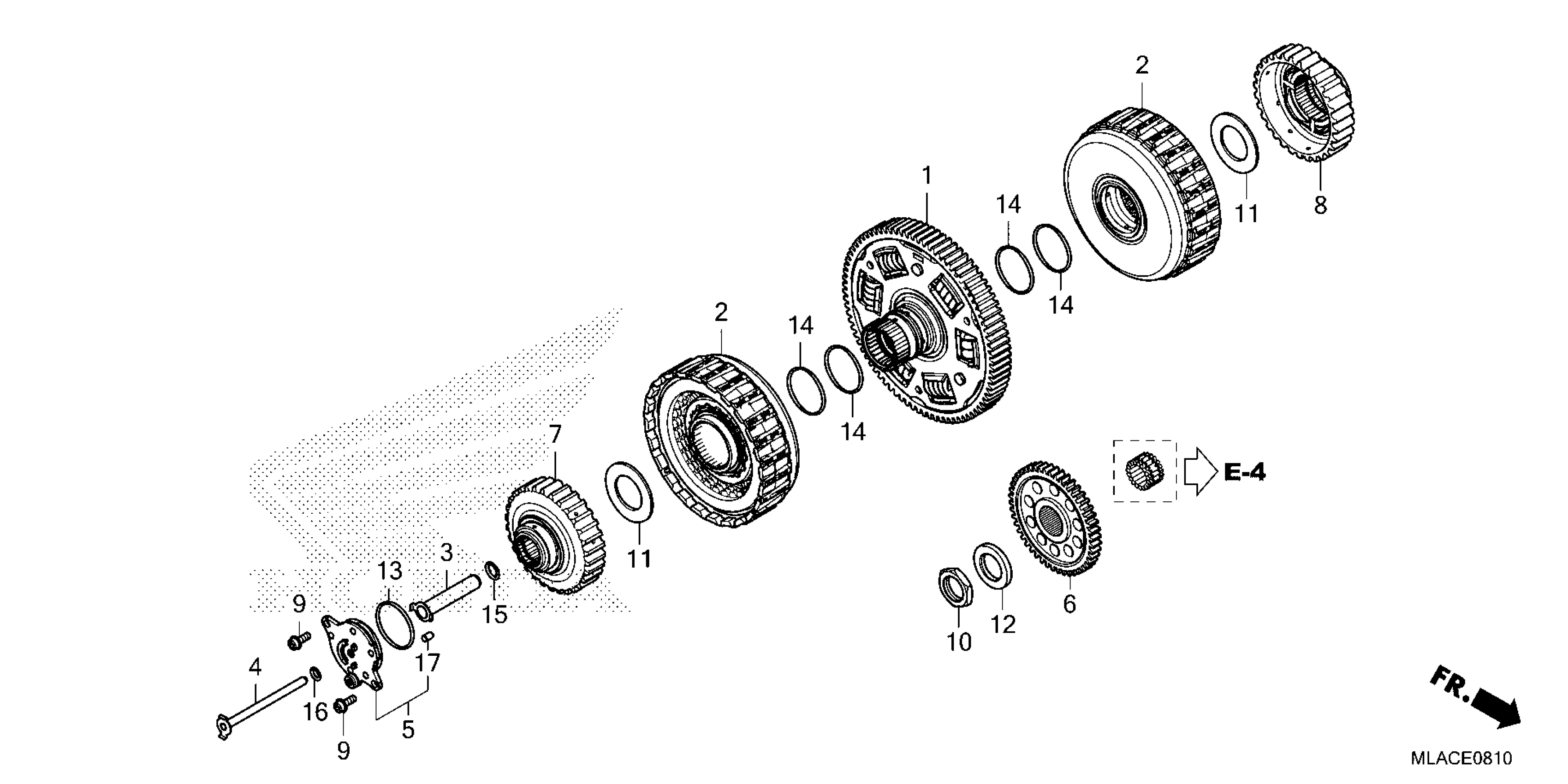

Honda CMX1100D3AC (25) MOTORCYCLE, JPN, VIN# JH2SC87M-SK000001 TO JH2SC87M-SK099999 CLUTCH (CMX1100D/D2/D3) Diagram

GEAR (82T)

22100-MLN-E62

$648.08

CLUTCH ASSY.

22500-MLN-E61

$376.82

PIPE A, FEED

22711-MJP-G80

$17.85

PIPE B, FEED

22712-MJP-G80

$19.61

GUIDE, FEED PIPE

22720-MJP-G80

$75.84

GEAR, PRIMARY DRIVE (44T)

23103-MKS-E50

$106.25

GUIDE (30T)

23405-MJP-G80

$107.02

GUIDE, CLUTCH 2

23406-HL4-AJ0

$94.48

BOLT, FLANGE SOCKET (5X14)

90089-KAS-900

$2.28

NUT, LOCK (22MM)

90201-HL4-000

$5.16

WASHER (29.5X50X2)

90403-HL4-000

$4.98

WASHER (22X37X5)

90404-HL4-000

$7.31

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

O-RING (35X2.2) | Use from Engine SN 6006476.

91302-MKS-E00

$1.61

O-RING (35X2.2) | Use up to Engine SN 6006475.

91302-RGC-003

$2.92

O-RING (10.7X1.9)

91308-PY4-003

$2.18

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.69

PIN, DOWEL (5X8) This part replaces 94302-05080.

94303-05080

$2.14

PIN, DOWEL (5X8)

94303-05080

$2.14
