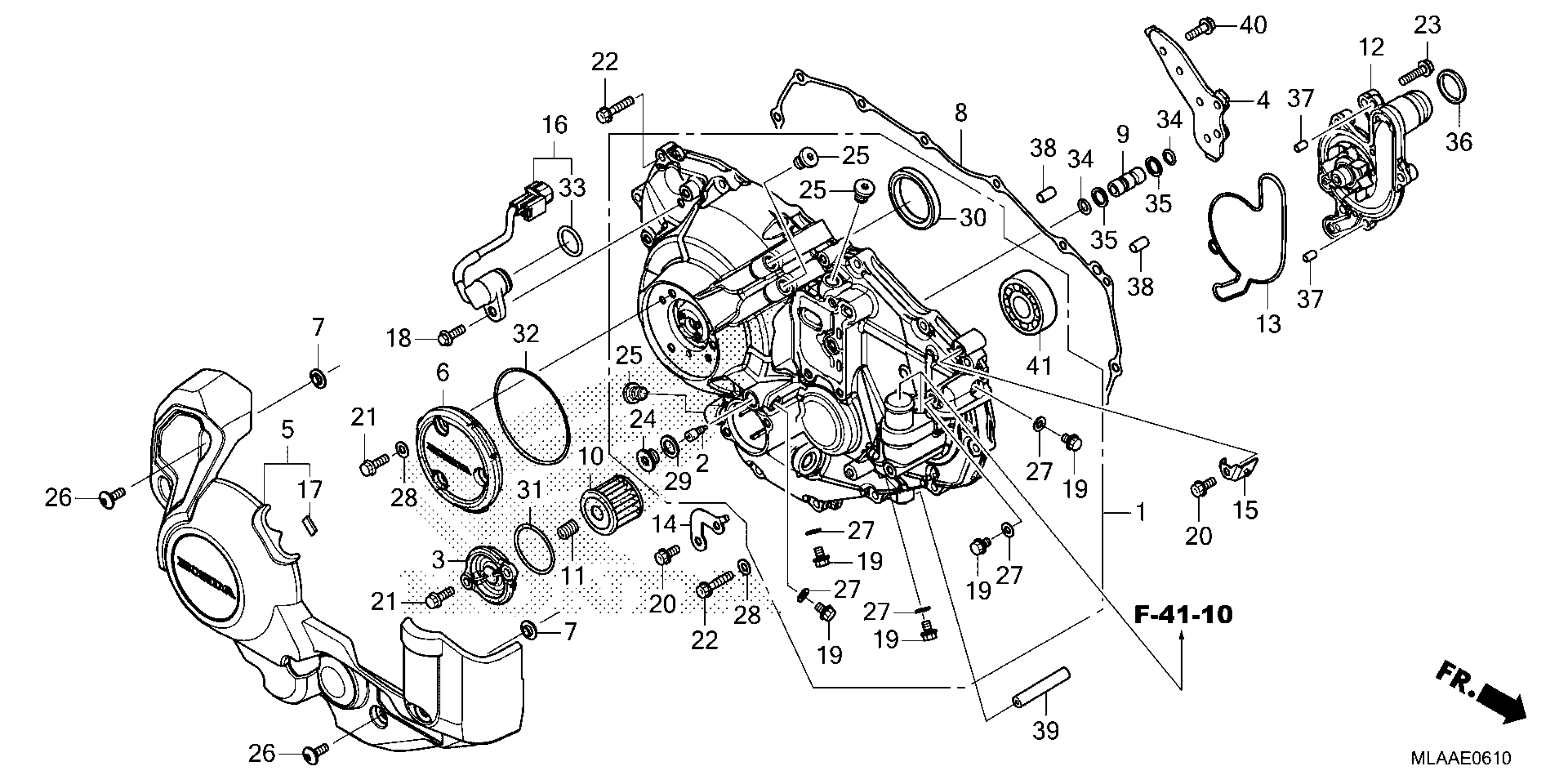

Honda CMX1100D2AC (24) MOTORCYCLE, JPN, VIN# JH2SC836-RK300001 TO JH2SC836-RK399999 RIGHT CRANKCASE COVER (CMX1100D/D2) Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MLA-A50

$420.52

2

ORIFICE

11335-MJP-G80

$16.35

3

COVER, OIL FILTER

11337-MLF-E70

$24.10

4

COVER (INNER)

11361-MJP-G80

$41.45

5

CVR, R. ENGINE SIDE

11370-MLA-A60

$99.72

6

CAP, R. COVER

11375-MLA-A50

$79.61

7

COLLAR

11385-MJF-A00

$2.80

8

GASKET, R. CRANKCASE COVER

11394-MJP-G51

$43.41

9

PIPE, OIL PASSAGE

15104-MGS-D20

$8.90

10

ELEMENT, OIL FILTER

15412-MGS-D21

$7.60

11

SPRING, OIL FILTER

15414-MEB-670

$2.39

12

WATER PUMP

19200-MJP-G50

$179.00

13

GASKET, WATER PUMP BODY

19226-MJP-G50

$9.59

14

STAY, HARNESS CLIP

32157-MJP-G80

$4.32

15

STAY, HARNESS CLIP

32158-MLA-A50

$3.33

16

SENSOR ASSY., ANGLE (40DEGREE)

38810-MLA-A51

$167.29

17

RUBBER, HANDLE COVER

53209-K0G-900

$1.09

18

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.62

19

BOLT, FLANGE (6X8)

90026-GHB-600

$2.03

20

BOLT, FLANGE (6X14)

90026-GHB-630

$2.03

21

BOLT, FLANGE (6X18)

90026-GHB-650

$2.03

22

BOLT, FLANGE (6X28)

90026-GHB-690

$1.99

23

BOLT, FLANGE (6X25)

90030-GHB-680

$2.01

24

BOLT, SEALING (12X8)

90031-MJP-G80

$3.01

25

BOLT, SPECIAL (10MM)

90042-MJP-G80

$3.87

26

BOLT, SOCKET SPECIAL (6X17)

90085-MLA-A00

$2.20

27

WASHER, SEALING (6MM)

90404-HW1-670

$1.70

28

WASHER, SEALING (6MM)

90488-425-000

$2.07

29

WASHER (12MM)

90545-KF0-000

$2.90

30

BEARING, RADIAL BALL (40X52X7)

91004-MJP-G81

$27.62

31

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$3.91

32

O-RING (81X2.2)

91307-MGE-D01

$3.57

33

O-RING (16.5X2.5)

91310-MGE-D01

$4.38

34

O-RING (7.7X1.9)

91311-RFH-003

$2.38

35

RING, BACK-UP (8X11)

91315-MGS-D20

$3.04

36

SEAL, WATER PIPE

91315-MJP-G51

$2.19

37

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.04

38

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

39

BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)

95005-35001-30M

$7.74

40

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

41

BEARING, RADIAL BALL (6304)

96100-63040-00

$12.93
