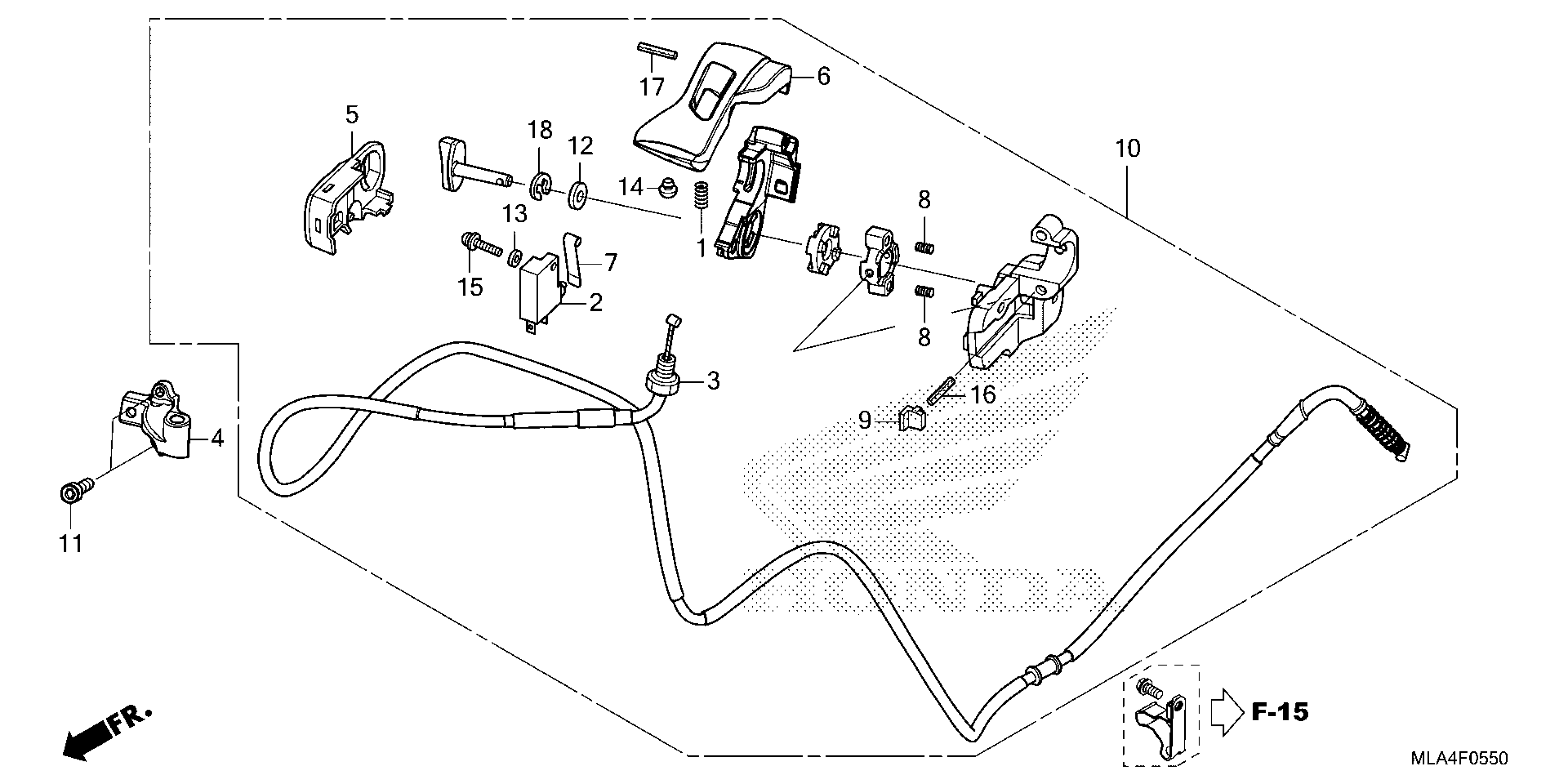

Honda CMX1100D2AC (23) MOTORCYCLE, JPN, VIN# JH2SC836-PK200001 PARKING BRAKE LEVER Diagram

SPRING, BALL SETTING

24271-743-000

$2.39

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

CABLE, PARKING BRAKE

43450-MLA-A71

$48.74

HOLDER, PARKING BRAKE

47111-MLA-A50

$51.39

COVER, HOLDER

47117-MGE-D00

$3.36

LEVER, PARKING TOP

47152-MGE-D00

$6.85

SPRING, SWITCH

47154-MGE-D00

$8.49

SPRING, PLUNGER

47155-MGE-D00

$3.62

CAP, HOLDER (LOWER)

47156-MGE-D00

$2.31

LEVER ASSY., PARKING

47205-MLA-A70

$333.59

BOLT, SOCKET (5X20)

90116-MGE-D00

$3.04

WASHER (10.2MM)

90401-430-000

$1.64

WASHER, PLAIN (4X8)

90515-GN5-910

$1.49

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.49

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.61

SCREW-WASHER (4X14)

93892-04014-07

$1.49

PIN, SPRING (3X22)

94305-30223

$1.49

PIN, SPRING (3X28) (NOT AVAILABLE)

94305-30283

$1.51

E-RING (9MM) (NOT AVAILABLE)

94540-09018

$3.85
