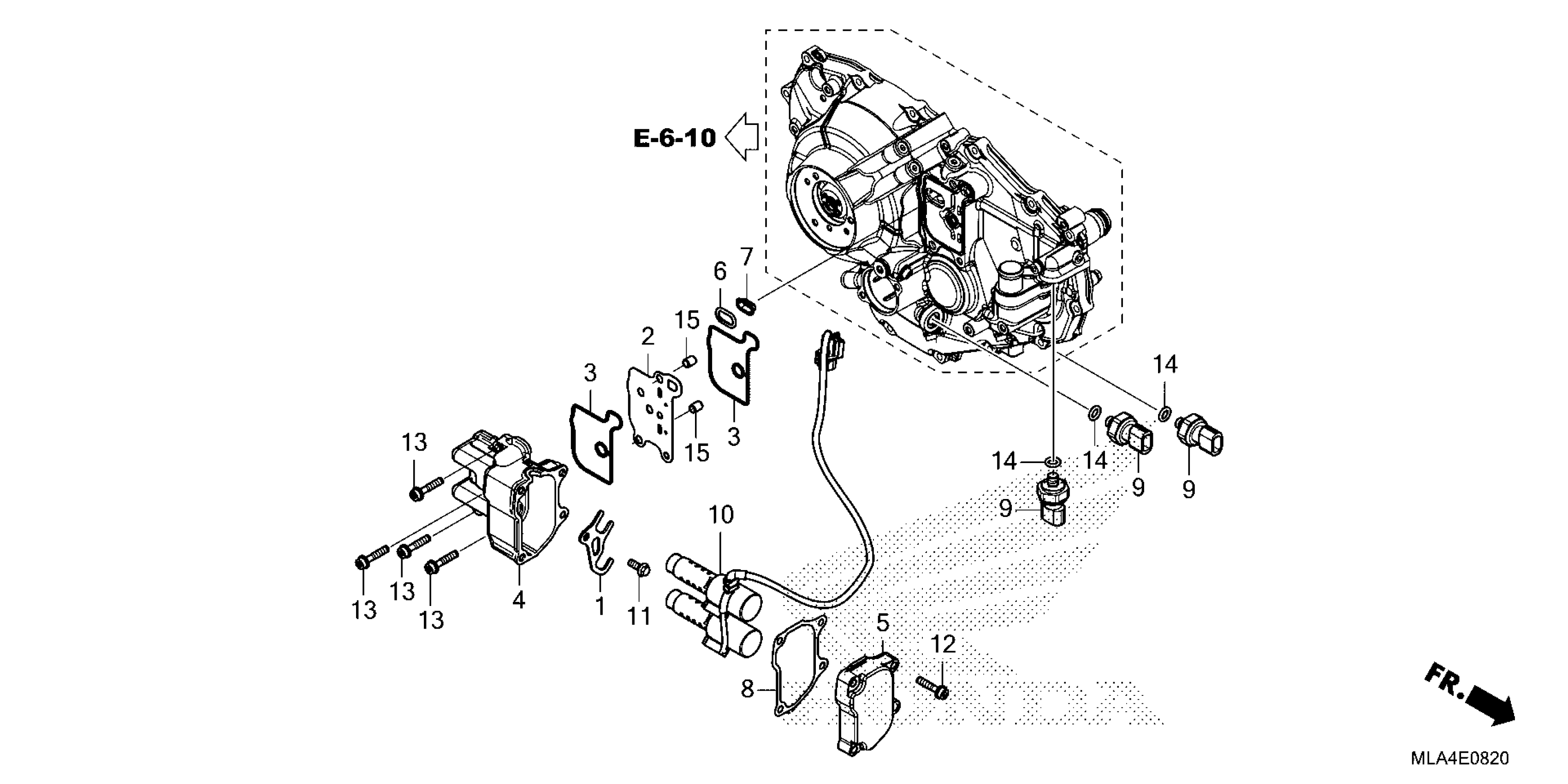

Honda CMX1100D2AC (23) MOTORCYCLE, JPN, VIN# JH2SC836-PK200001 LINEAR SOLENOID Diagram

#

Description
Price

1

PLATE, SOLENOID STOPPER

11338-MJP-G80

$11.74

2

PLATE, SEPARATOR

11362-MJP-G80

$6.75

3

GASKET, SOLENOID BODY

11364-MJP-G80

$3.92

4

BODY

11365-MLF-E70

$119.30

5

CVR, LINEAR SOLENOID

11366-MLF-E70

$49.87

6

GASKET, BASE

11371-MGS-D20

$4.15

7

FILTER, SPOOL VALVE

11372-MGS-D20

$15.84

8

GASKET, SOLENOID COVER

11398-MJP-G81

$10.15

9

SENSOR ASSY., OIL PRESSURE

28660-RFH-013

$102.76

10

SOLENOID ASSY., LINEAR

38610-MKS-E51

$299.49

11

BOLT, FLANGE (6X16)

90025-GHB-640

$2.33

12

BOLT, FLANGE (6X28)

90026-GHB-690

$2.18

13

BOLT, FLANGE (6X30)

90026-GHB-700

$2.18

14

O-RING (13X1.5)

91301-MEH-003

$1.62

15

PIN A, DOWEL (8X10)

94301-08100

$2.25
