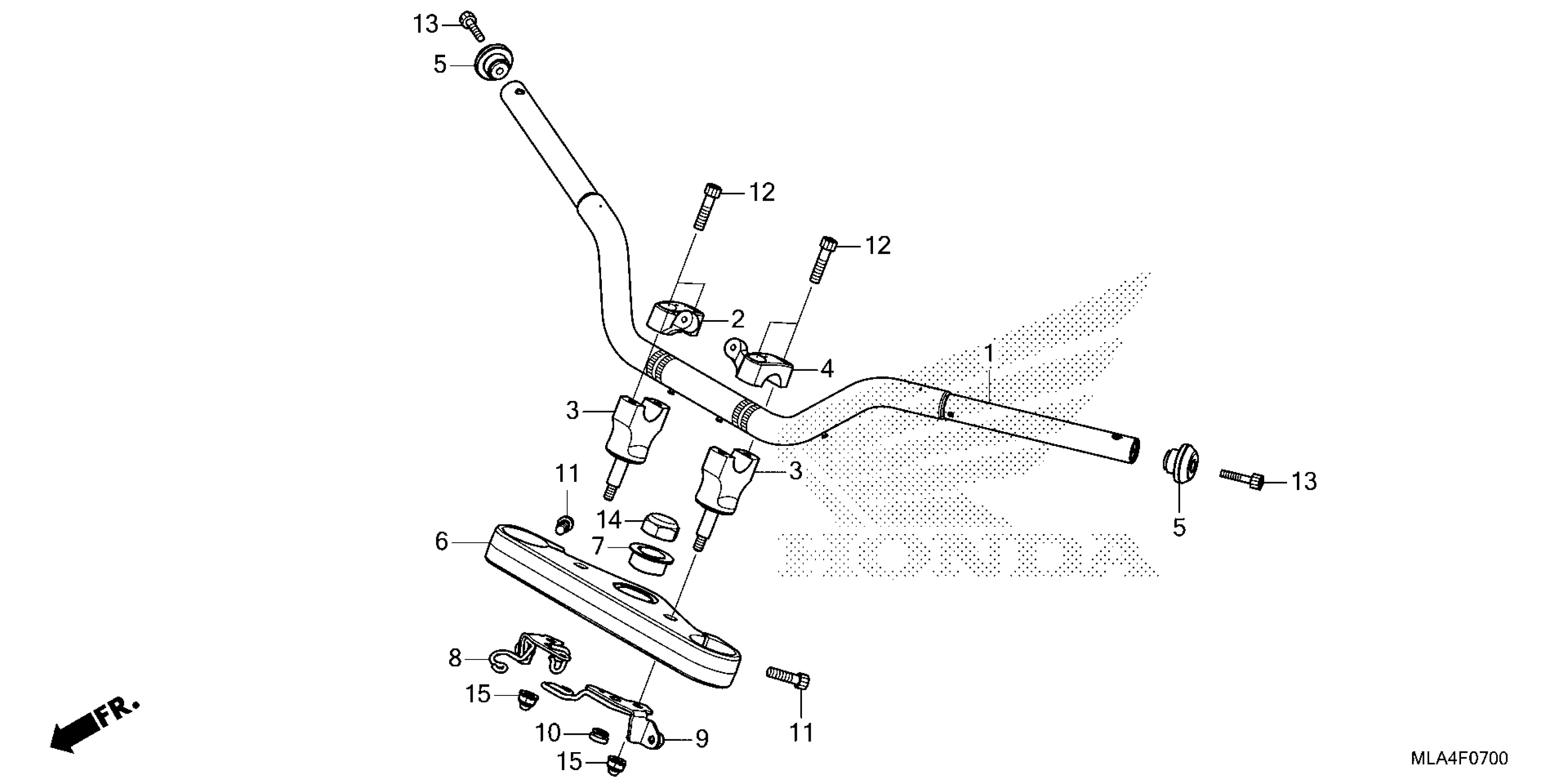

Honda CMX1100D2AC (23) MOTORCYCLE, JPN, VIN# JH2SC836-PK200001 HANDLEBAR@TOP BRIDGE Diagram

#

Description

Price

1

HANDLEBAR

53100-MLA-A50

$169.41

2

HOLDER, R. HANDLE (UPPER)

53131-K87-A00

$20.43

3

HOLDER, HANDLE (LOWER)

53132-K87-A00

$28.33

4

HOLDER, L. HANDLE (UPPER)

53135-K87-A00

$20.12

5

END, GRIP

53183-MLA-A00

$41.45

6

BRIDGE, FORK TOP

53230-MLA-A00

$243.21

7

SPACER, TOP BRIDGE

53231-MLA-A00

$16.30

8

STAY, R. TOP BRIDGE (LOWER)

53232-MLA-A00

$14.80

9

STAY, L. TOP BRIDGE (LOWER)

53237-MLA-A00

$14.80

10

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

11

BOLT, SOCKET (8X28)

90101-MGC-JB0

$3.76

12

BOLT, SOCKET (8X32)

90113-GHB-690

$1.49

13

BOLT, SOCKET (6X28)

90113-MLA-A00

$2.97

14

NUT, STEERING STEM

90306-K87-A00

$6.00

15

NUT, U FLANGE CAP (8MM)

90309-K87-A01

$3.64
