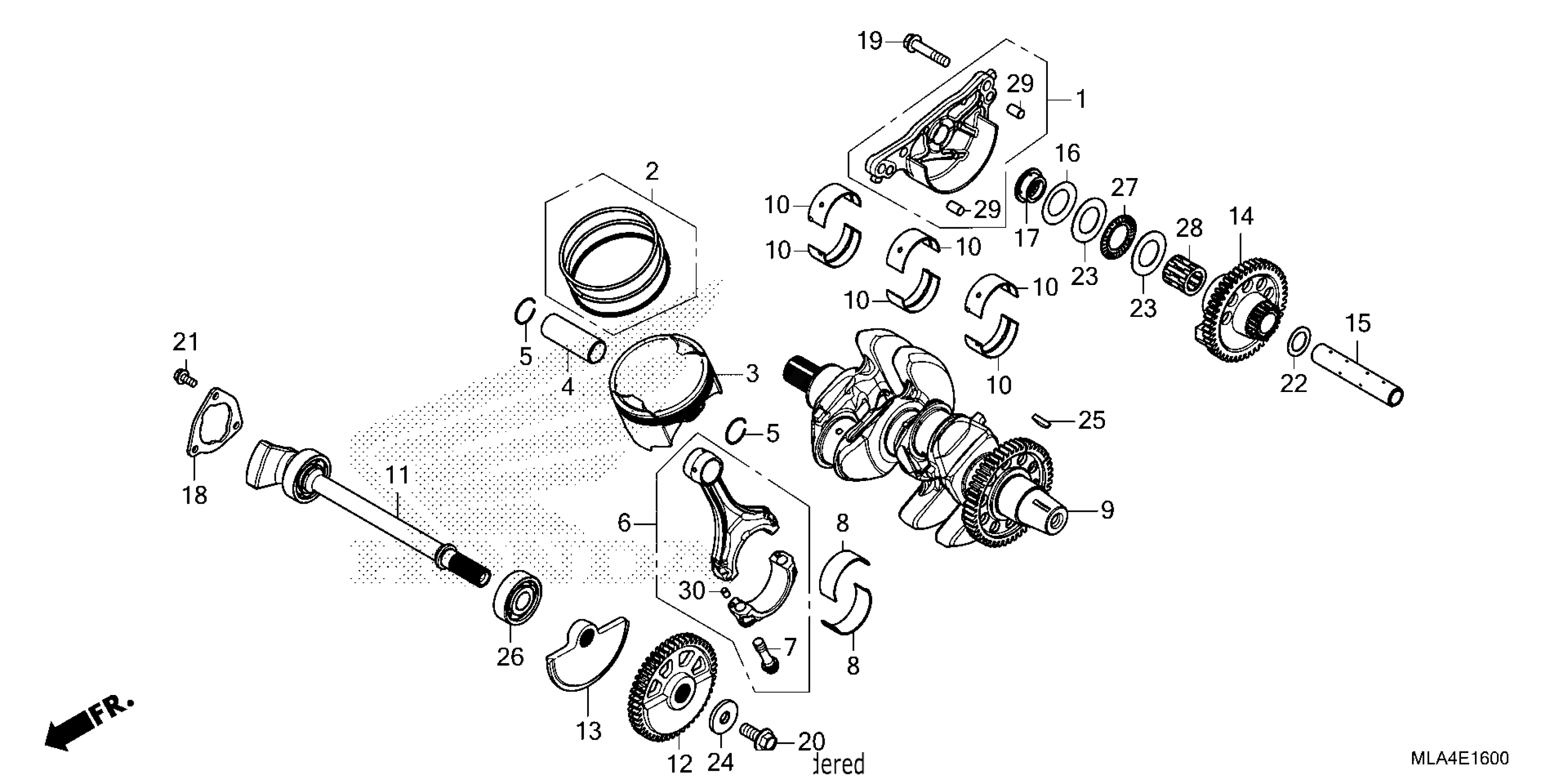

Honda CMX1100D2AC (23) MOTORCYCLE, JPN, VIN# JH2SC836-PK200001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

HOLDER, RR. BALANCER SHAFT

11230-MJP-G50

$69.68

2

RING SET, PISTON (STD)

13011-MKS-E00

$55.99

3

PISTON

13101-MKS-E00

$132.76

4

PIN, PISTON

13111-MKS-E00

$22.60

5

CLIP, PISTON PIN (22MM) (Honda Code 1206705)

13112-MC7-000

$2.21

6

ROD ASSY., CONNECTING

13210-MKS-E00

$238.72

7

BOLT, CONNECTING ROD

13213-MJP-G51

$6.27

8

BEARING A, CONNECTING ROD (BLUE)

13214-MJP-G51

$10.93

8

BEARING B, CONNECTING ROD (BLACK)

13215-MJP-G51

$10.93

8

BEARING C, CONNECTING ROD (BROWN)

13216-MJP-G51

$10.93

8

BEARING D, CONNECTING ROD (GREEN)

13217-MJP-G51

$10.93

8

BEARING E, CONNECTING ROD (YELLOW)

13218-MJP-G51

$10.93

9

CRANKSHAFT

13300-MKS-E50

$729.18

10

BEARING A, CRANKSHAFT (BLUE)

13312-MKS-E01

$12.24

10

BEARING B, CRANKSHAFT (BLACK)

13313-MKS-E01

$12.24

10

BEARING C, CRANKSHAFT (BROWN)

13314-MKS-E01

$12.24

10

BEARING D, CRANKSHAFT (GREEN)

13315-MKS-E01

$12.24

10

BEARING E, CRANKSHAFT (YELLOW)

13316-MKS-E01

$12.24

11

SHAFT, FR. BALANCER This part replaces 13420-MKS-E00.

13420-MLN-E00

$298.31

12

GEAR, FR. BALANCER DRIVEN (56T)

13431-MKS-E00

$100.65

13

WEIGHT, L. FR. BALANCER

13433-MKS-E00

$107.97

14

GEAR, RR. BALANCER DRIVEN (46T)

13440-MKS-E00

$256.18

15

SHAFT, RR. BALANCER

13445-MJP-G50

$24.53

16

SPRING, RR. BALANCER THRUST

13446-MKS-E00

$14.68

17

COLLAR, RR. BALANCER

13447-MJP-G50

$16.63

18

PLATE, BALANCER BEARING SETTING

13481-MJP-G50

$4.91

19

BOLT, FLANGE (8X40)

90003-MCS-000

$1.79

20

BOLT, SPECIAL (10X25)

90013-MJP-G50

$3.94

21

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

22

WASHER (18X27.5X1.0)

90402-MKS-E00

$3.26

23

WASHER (25X42X1.0)

90404-MJP-G50

$4.19

24

WASHER (10.5X31.8)

90405-MFA-D00

$3.82

25

KEY, SPECIAL WOODRUFF (25X18)

90701-KAS-900

$5.34

26

BEARING, RADIAL BALL (17X47X14)

91002-MJP-G53

$39.04

27

BEARING, THRUST NEEDLE (25X42X2)

91005-MJP-G51

$8.91

28

BEARING B, NEEDLE (18X27X26.8) (BLUE)

91015-MJP-G51

$19.87

28

BEARING C, NEEDLE (18X27X26.8) (WHITE)

91016-MJP-G51

$19.03

28

BEARING D, NEEDLE (18X27X26.8) (GREEN)

91017-MJP-G51

$19.03

29

PIN B, DOWEL (8X14)

94302-08140

$2.62

30

PIN C, DOWEL (4X6.5)

94303-04065

$2.66
