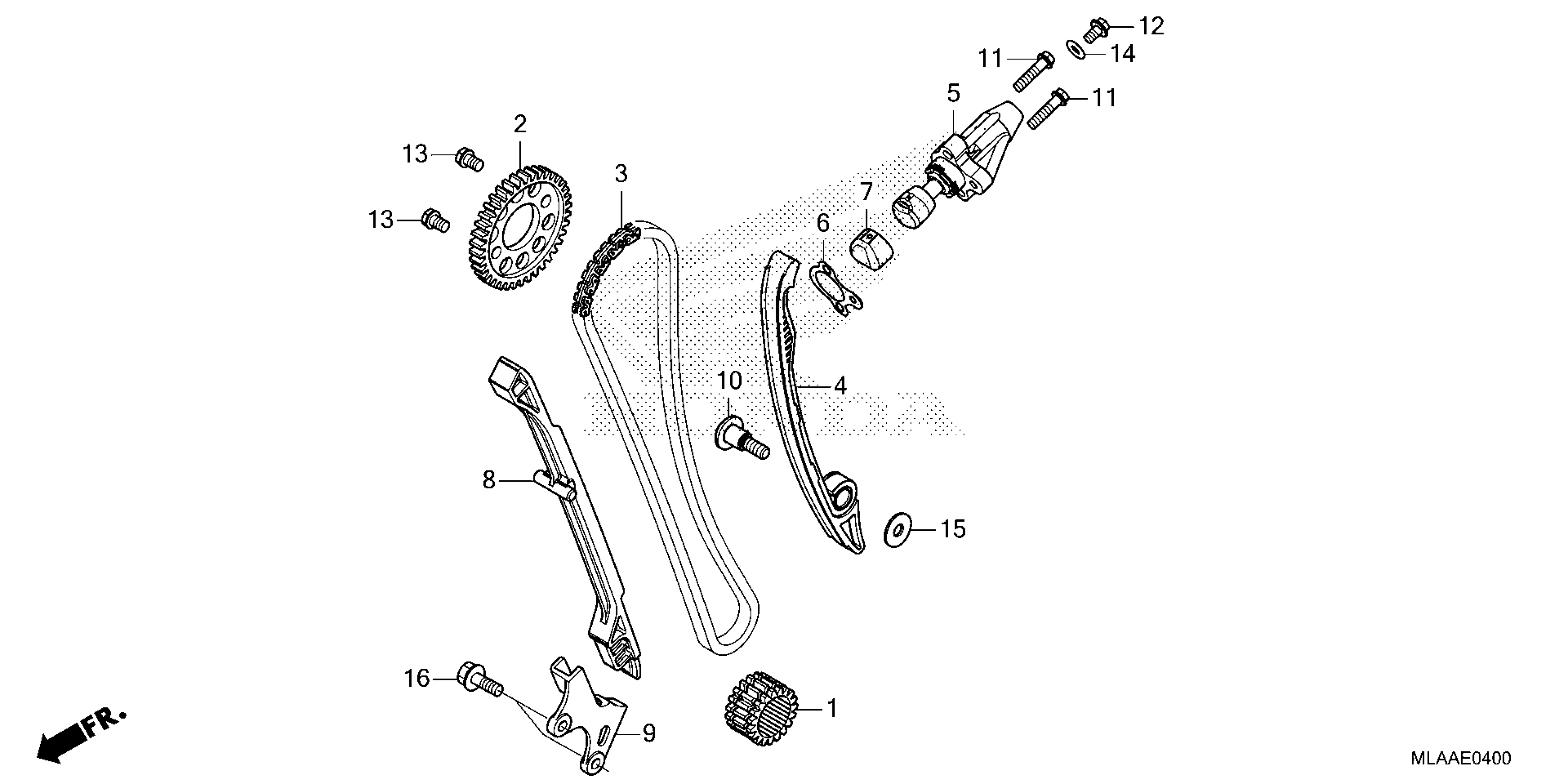

Honda CMX1100AAC (24) MOTORCYCLE, JPN, VIN# JH2SC830-RK300001 TO JH2SC830-RK399999 CAM CHAIN@TENSIONER Diagram

SPROCKET, TIMING (19T)

14311-MKS-E00

$40.43

SPROCKET, CAM (38T)

14321-MKS-E00

$86.07

CHAIN, CAM (130L) (SCH-0411L SV) (DAIDO)

14401-MKS-E01

$92.02

TENSIONER, CAM CHAIN

14510-MKS-E00

$119.38

LIFTER ASSY., TENSIONER

14520-MLA-A01

$141.77

GASKET, TENSIONER HOLE

14523-HL4-003

$3.37

CAP, LIFTER PAT

14524-MBB-000

$7.72

GUIDE A, CAM CHAIN

14611-MKS-E00

$8.67

PLATE, CAM CHAIN GUIDE

14612-MJP-G50

$27.80

BOLT, SPECIAL (8MM)

90008-HL4-000

$4.90

BOLT, FLANGE (6X25)

90021-GHB-680

$2.26

BOLT, FLANGE (6X10)

90026-GHB-610

$2.23

BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)

90082-HA0-000

$1.97

WASHER, SEALING (6MM)

90442-397-000

$2.28

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
