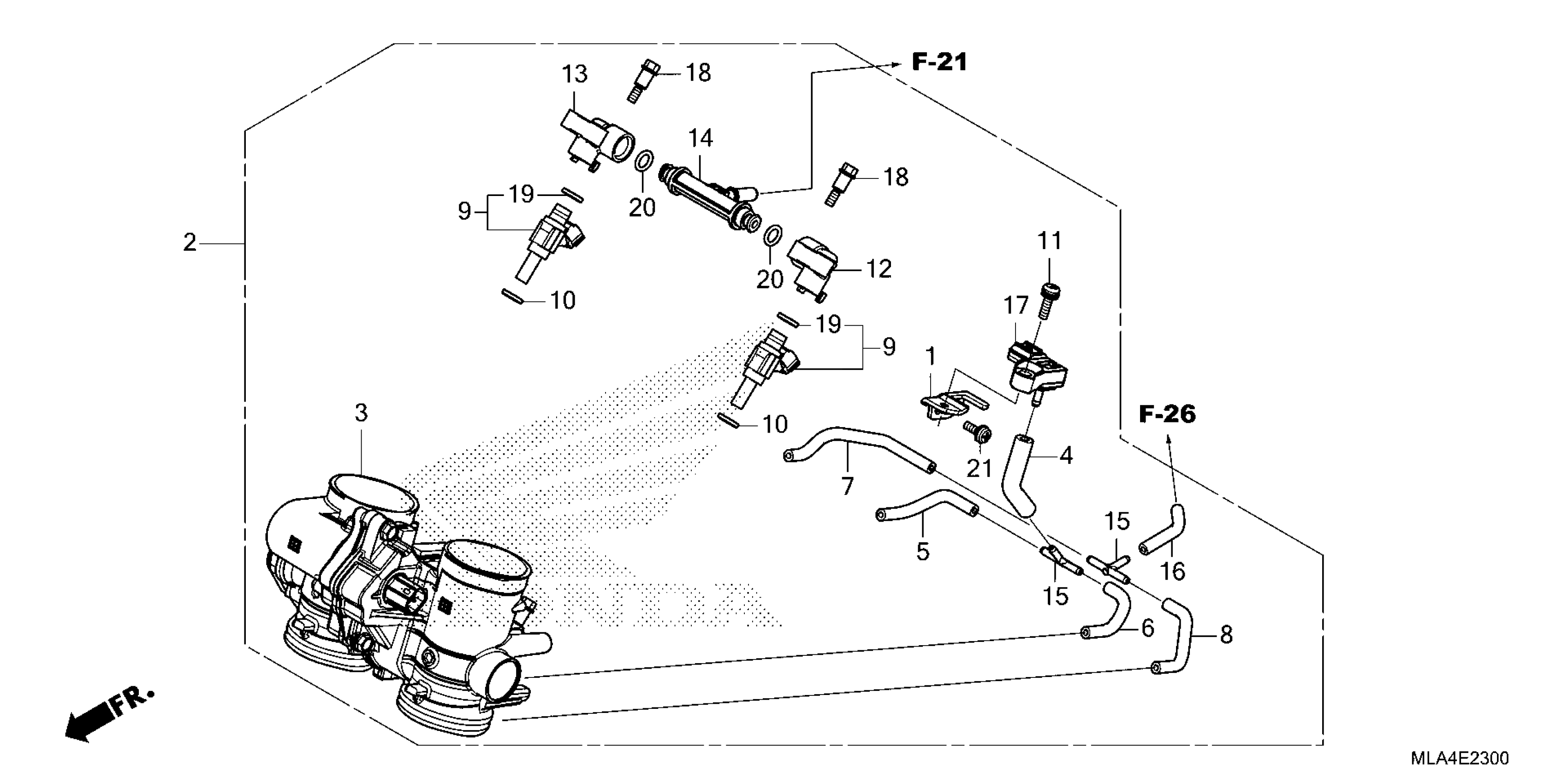

Honda CMX1100AAC (23) MOTORCYCLE, JPN, VIN# JH2SC830-PK200001 THROTTLE BODY Diagram

Description

Price

STAY, PB SENSOR

16191-MLA-A01

$7.26

BODY ASSY., THROTTLE (GNJ2A A)

16400-MLA-A01

$1,392.03

BODY SET (NOT AVAILABLE)

16410-MLA-A01

Unavailable

TUBE, MAP SENSOR

16411-MLA-A00

$3.31

TUBE, PB (R)

16412-MLA-A00

$3.23

TUBE, PB (L)

16413-MLA-A00

$3.23

TUBE, PURGE (R)

16414-MLA-A00

$5.02

TUBE, PURGE (L)

16415-MLA-A00

$3.57

INJECTOR ASSY., FUEL

16450-MKS-E01

$183.89

SEAL RING, INJECTOR

16472-MKP-T00

$32.62

BOLT-WASHER (6X18)

16542-MEL-003

$3.31

PIPE, FUEL (A)

16610-MKP-T01

$25.15

PIPE, FUEL (B)

16620-MKP-T01

$25.15

T-JOINT, FUEL

16630-MKS-E01

$29.57

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

TUBE, JOINT-HEAD

17419-MLA-A00

$3.05

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$202.72

BOLT, SHOULDER

90021-MGZ-D02

$2.90

O-RING

91301-MKP-T01

$12.84

O-RING (7.47X3.6)

91301-PLC-000

$3.11

SCREW-WASHER (6X14)

93892-06014-18

$1.49
