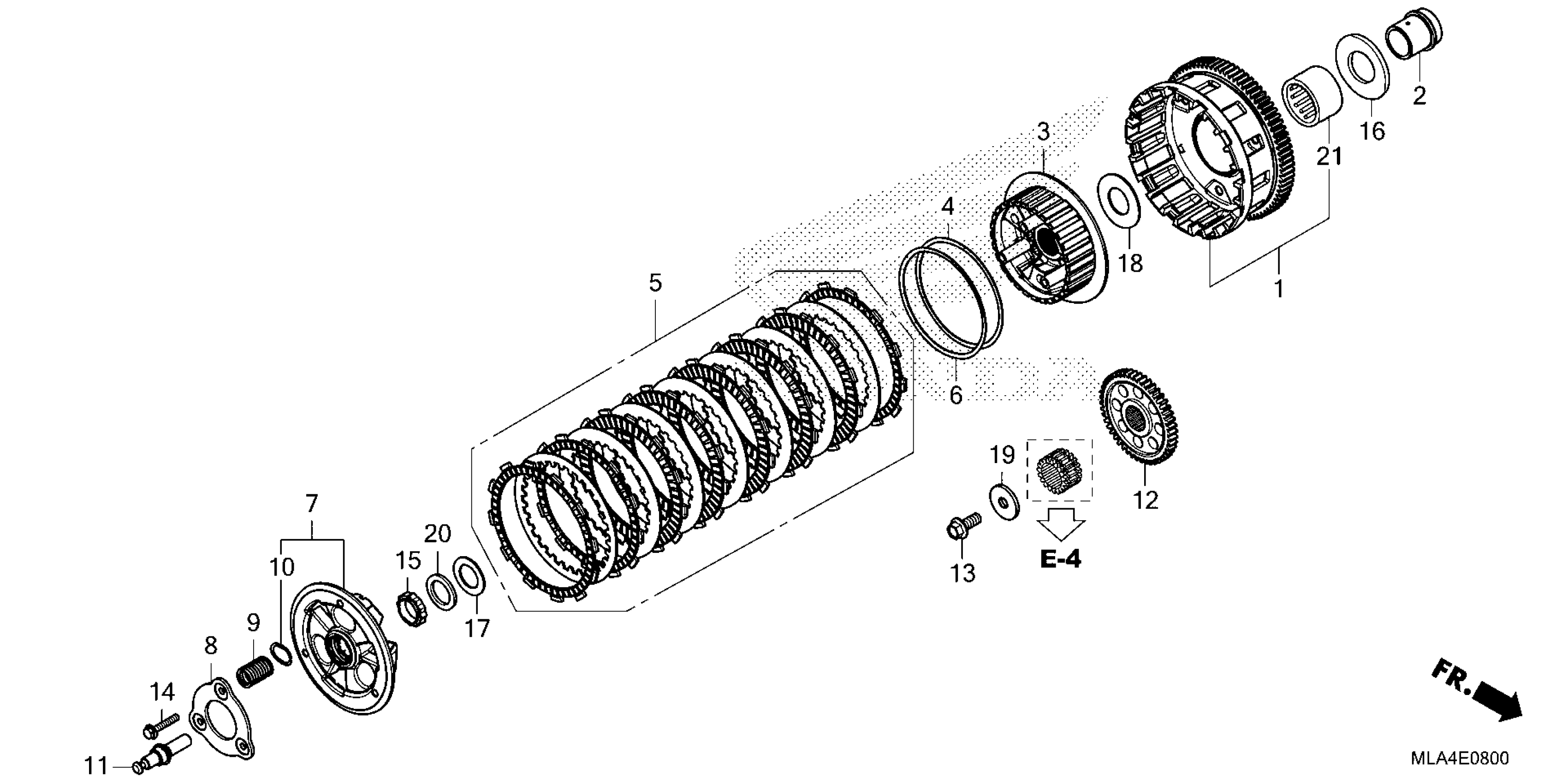

Honda CMX1100AAC (23) MOTORCYCLE, JPN, VIN# JH2SC830-PK200001 CLUTCH (1) Diagram

CLUTCH OUTER (79T)

22100-MKS-E01

$390.29

GUIDE, CLUTCH (OUTER)

22116-MJP-G50

$17.75

CENTER, CLUTCH

22121-MKS-E01

$100.85

SEAT, JUDDER SPRING

22125-MKS-E01

$5.88

DISK SET, CLUTCH

22210-MKS-305

$146.54

SPRING, JUDDER

22325-MKS-E01

$41.88

PLATE, CLUTCH PRESSURE

22350-MKS-E02

$86.91

PLATE, SETTING

22361-MKS-E01

$17.99

SPRING, CLUTCH

22401-MKS-E01

$5.39

SEAT, CLUTCH SPRING

22425-MJP-G51

$10.77

PIN, CLUTCH LIFTER

22847-MKS-E00

$37.29

GEAR, PRIMARY DRIVE (46T)

23103-MKS-E00

$107.76

BOLT, SPECIAL (10X25)

90013-MJP-G50

$3.94

BOLT, FLANGE (6X35)

90050-MJP-G51

$1.90

NUT, LOCK (25MM)

90231-MS2-610

$17.24

WASHER (35X50X3.2)

90401-MEA-670

$4.97

WASHER (25.2X38X2)

90401-MKS-E00

$4.47

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$14.66

WASHER (10.5X36X4)

90414-MGE-D00

$2.42

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.35

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$83.07
