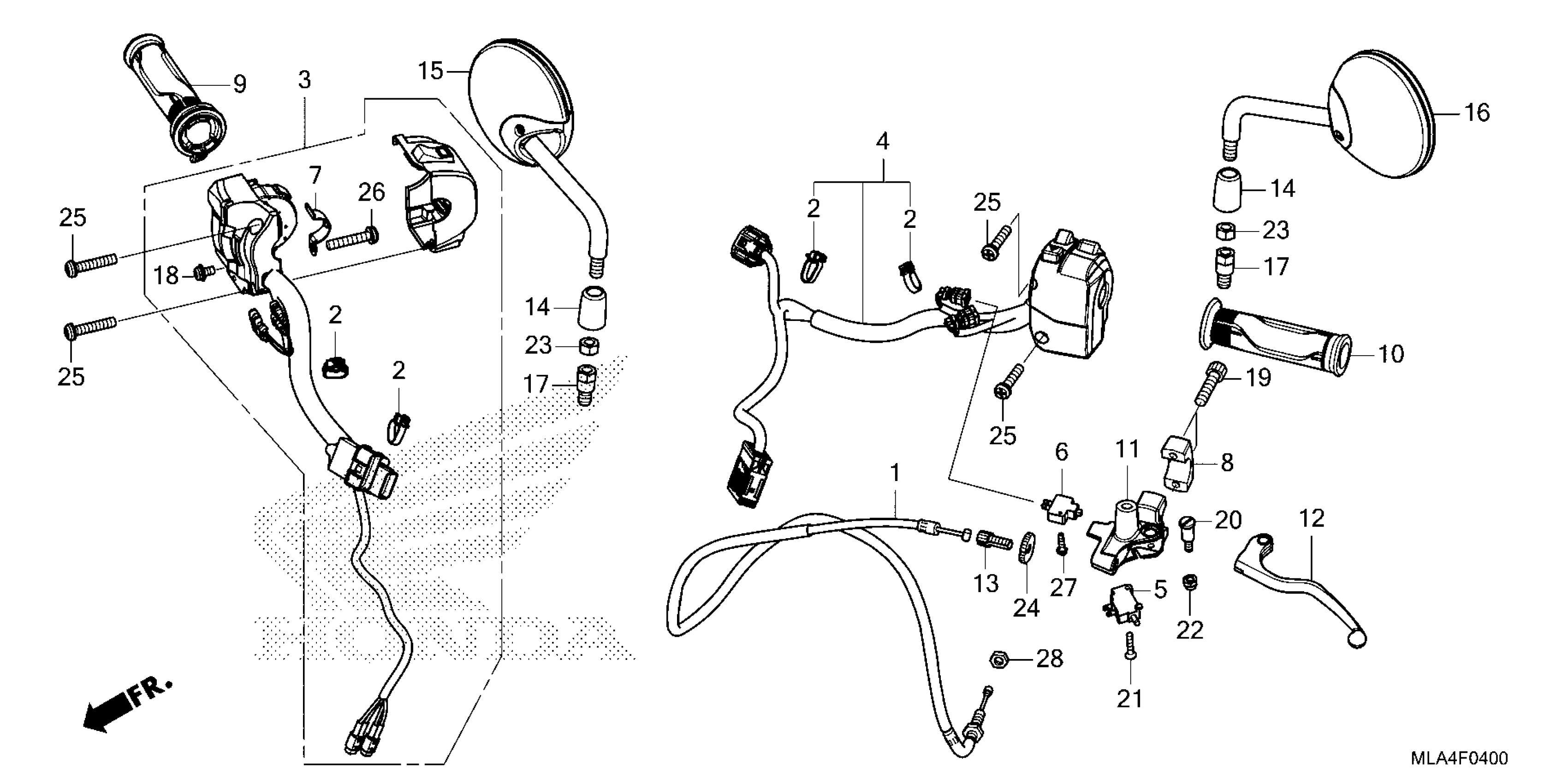

Honda CMX1100AAC (21) MOTORCYCLE, JPN, VIN# JH2SC830-MK000001 TO JH2SC830-MK099999 HANDLE SWITCH@LEVER@CABLE@MIRROR Diagram

CABLE, CLUTCH

22870-MLA-A01

$21.65

BAND, WIRE HARNESS

32161-GFL-J41

$1.68

SWITCH UNIT, ENGINE STOP & GRIP APS

35135-MLA-A01

$259.40

SW, TURN SIGNAL This part replaces 35200-MLA-A01.

35200-MLA-A02

$181.83

SWITCH ASSY., CLUTCH

35330-MCJ-751

$7.29

SWITCH ASSY., CLUTCH

35330-MK5-003

$15.95

PLATE A, SETTING

37971-MKS-E01

$3.77

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$18.59

GRIP ASSY., THROTTLE

53140-MKS-E01

$30.36

GRIP, L. HANDLE

53166-MGE-000

$15.92

BRACKET, L. HANDLE LEVER

53172-MLA-A00

$49.97

LEVER, L. HANDLEBAR

53178-MLA-A00

$33.06

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$6.56

CAP, LOCK NUT

88119-K87-A00

$1.97

MIRROR *NH105* (MAT BLACK) (R. SIDE)

88210-MLA-A01ZA

$29.99

MIRROR *NH105* (MAT BLACK) (L. SIDE)

88220-MLA-A01ZA

$29.76

BOLT, ADAPTER (10MM)

90101-K20-901

$2.17

SCREW-WASHER (4X8)

90110-MKS-E20

$1.32

BOLT, SOCKET (6X22)

90111-GHB-660

$0.90

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

SCREW, FLAT (3X16)

90124-MCJ-752

$0.57

NUT, CAP (6MM)

90201-415-000

$1.96

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-K20-901

$0.70

NUT, FIXING

90321-KT7-760

$9.38

SCREW-WASHER (5X25)

90508-MGE-D00

$1.17

SCREW-WASHER (5X25)

93892-05025-08

$1.22

SCREW, TAPPING (3X12)

93901-32320

$0.83

NUT, HEX. (8MM)

94002-08070-0S

$1.19
