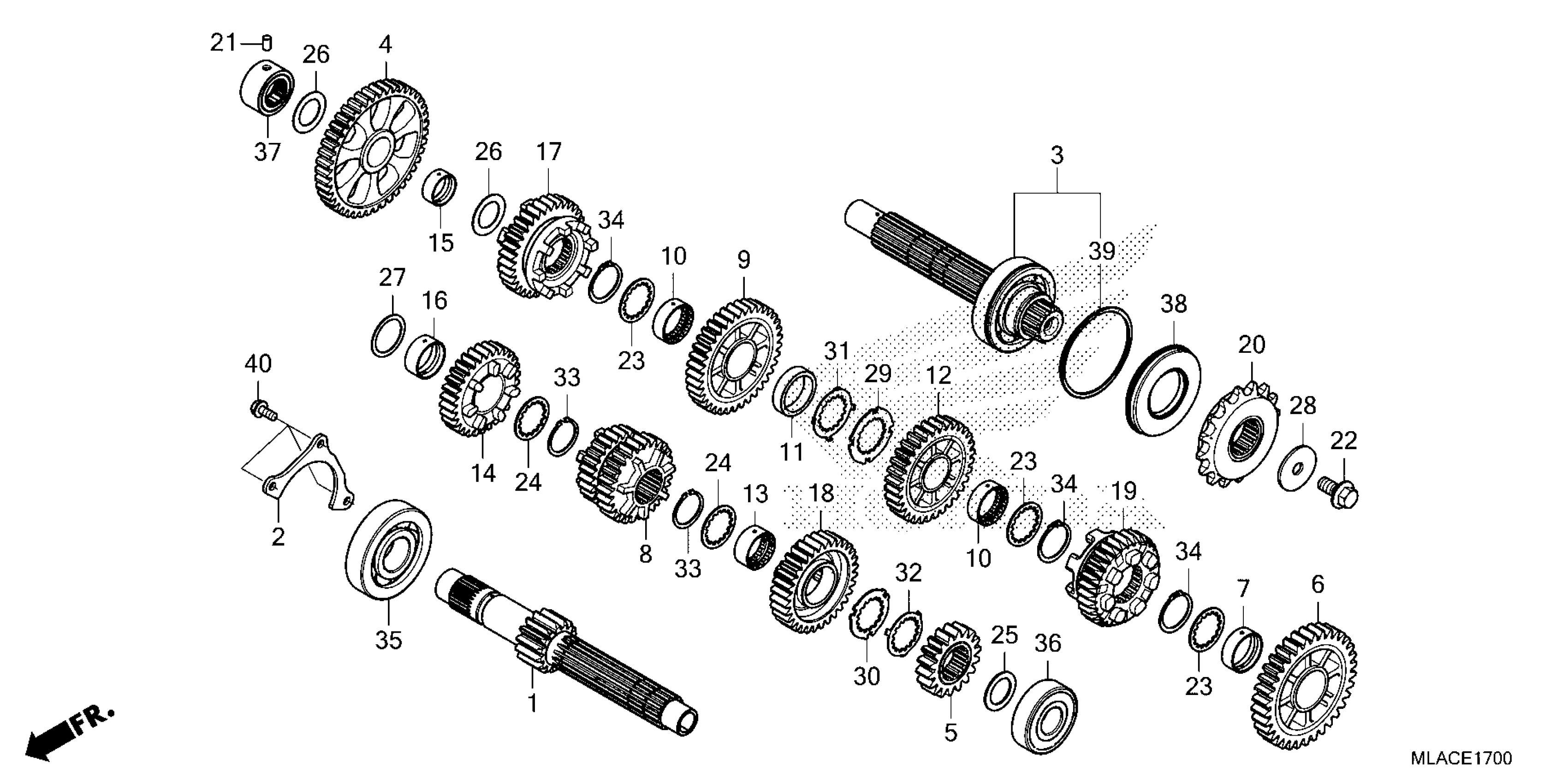

Honda CMX1100A2AC (25) MOTORCYCLE, JPN, VIN# JH2SC875-SK000001 TO JH2SC875-SK099999 TRANSMISSION (CMX1100A/A2) Diagram

MAINSHAFT (15T)

23211-MLN-E00

$126.46

PLATE, BEARING SETTING

23213-HL4-000

$5.19

COUNTERSHAFT

23220-MLN-E00

$133.22

GEAR, COUNTERSHAFT FIRST (43T)

23421-MKS-E00

$115.68

GEAR, MAINSHAFT SECOND (18T)

23431-MKS-E00

$53.51

GEAR (34T)

23441-MLN-E00

$85.51

COLLAR (30X11.2)

23442-MS2-610

$21.93

GEAR, MAINSHAFT THIRD & FOURTH (25T/26T)

23451-MKS-E00

$133.10

GEAR, COUNTERSHAFT THIRD (37T)

23461-MKS-E00

$110.63

COLLAR, SPLINE (30X11)

23462-MAT-000

$21.25

COLLAR (30X36X9.4)

23463-MJP-G50

$5.37

GEAR, COUNTERSHAFT FOURTH (32T)

23481-MKS-E00

$106.47

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$28.57

GEAR (31T)

23491-MLN-E00

$86.85

COLLAR (22X13)

23495-KY1-000

$19.31

COLLAR (28X13)

23495-MM5-000

$21.25

GEAR, COUNTERSHAFT FIFTH (33T)

23501-MKS-E00

$118.93

GEAR (36T)

23511-MLN-E00

$90.90

GEAR (35T)

23521-MLN-E00

$98.93

SPROCKET, DRIVE (16T)

23801-MEE-D00

$53.01

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.02

BOLT, SPECIAL (10MM)

90037-422-003

$6.99

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.04

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.85

WASHER (22X32X1.5)

90453-KSR-A00

$2.35

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.65

WASHER, THRUST (28MM)

90458-729-920

$4.65

WASHER (10.2MM)

90459-438-000

$5.57

WASHER, SPLINE (30MM)

90463-MAT-000

$4.22

WASHER, SPLINE (28MM)

90463-MCJ-000

$5.13

WASHER, LOCK (30MM)

90464-MAT-000

$6.21

WASHER, LOCK (28MM)

90464-MCJ-000

$5.13

CIRCLIP (28MM)

90603-MN4-000

$3.58

CIRCLIP (30MM)

90604-MM5-000

$4.28

BEARING, SPECIAL BALL (28X76X18)

91001-MJP-G51

$55.75

BEARING, RADIAL BALL (63/22U) (KOYO)

91002-MCH-003

$25.43

BEARING (22MM)

91023-MLN-E01

$18.81

OIL SEAL (39X72X8)

91207-MBB-013

$11.76

RING, SNAP (72MM)

94560-72200

$3.99

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93
