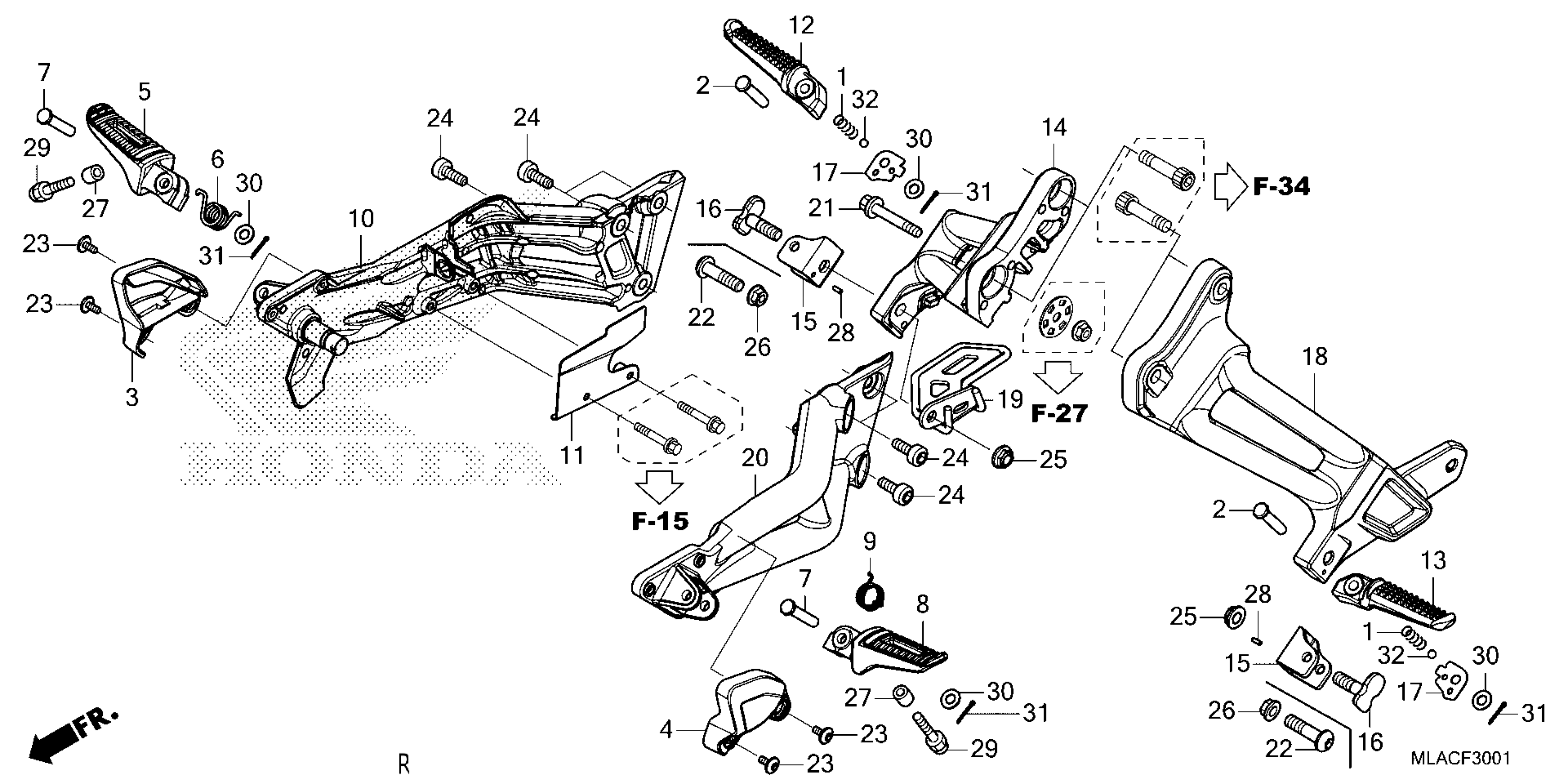

Honda CMX1100A2AC (25) MOTORCYCLE, JPN, VIN# JH2SC875-SK000001 TO JH2SC875-SK099999 STEP (CMX1100A2/D2) Diagram

Description

Price

GUARD, R. STEP

50607-MLA-A00

$7.40

GUARD, L. STEP

50608-MLA-A00

$7.40

ARM, R. MAIN STEP

50612-MLA-A00

$81.93

SPRING, R. STEP RETURN (L. SIDE)

50617-445-840

$5.44

PIN, STEP BAR

50639-ML0-010

$5.22

ARM, L. MAIN STEP

50642-MLA-A00

$81.93

SPRING, L. STEP RETURN (R. SIDE)

50644-445-840

$5.44

HOLDER, R. STEP

50650-MLA-AA0

$184.46

STAY, BRAKE SWITCH

50651-MLA-A00

$15.20

HOLDER, R.

50715-MLA-A30

$167.05

HOLDER, L.

50725-MLA-A30

$167.05

HOLDER, L. STEP

50750-MLA-AA0

$192.77

BOLT, FLANGE (5X50)

90036-GHB-760

$3.26

BOLT, SOCKET (10X28)

90118-MJN-A00

$4.40

BOLT, SOCKET (5X12)

90154-MLA-A00

$2.72

BOLT, SOCKET (8X22)

90157-MLA-A00

$3.72

NUT, U FLANGE (10MM)

90304-MLA-A30

$2.51

COLLAR (6.3X12.5X15)

90506-MLA-AA0

$2.38

BOLT, CAP (6X25)

92501-06025-0G

$2.92

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, SPLIT (2.0)

94201-20151

$1.49
