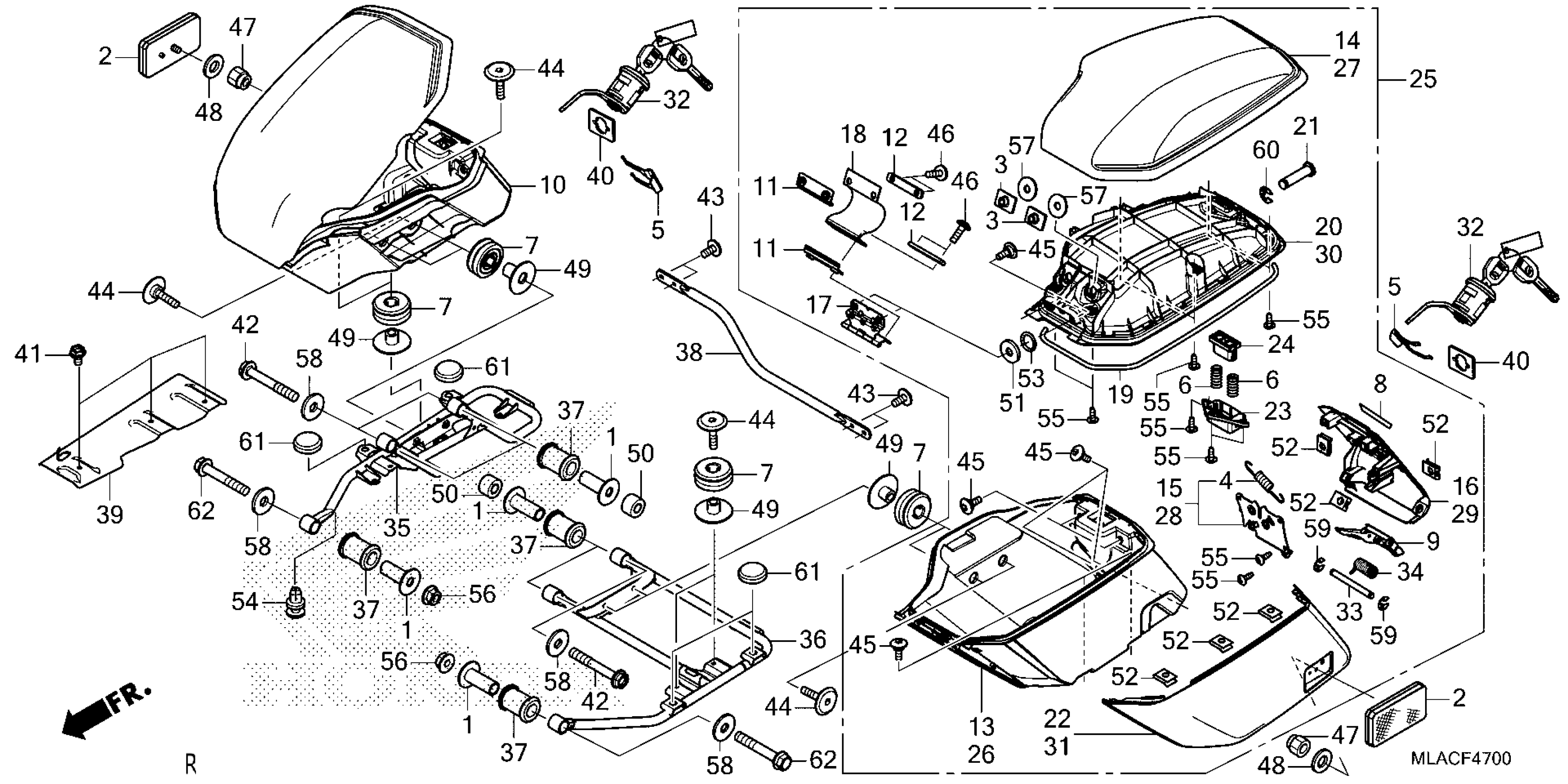

Honda CMX1100A2AC (25) MOTORCYCLE, JPN, VIN# JH2SC875-SK000001 TO JH2SC875-SK099999 SADDLEBAG Diagram

#

Description
Price

1

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.87

2

REFLECTOR, REFLEX

33742-MCV-N11

$24.29

3

NUT, SPECIAL (5MM)

61304-MGS-D70

$4.54

4

SPRING, SEAT LOCK

77234-KYZ-900

$1.13

5

SPRING (2WAY)

77235-MLA-A30

$3.40

6

SPRING, SEAT LOCK

77302-MEE-000

$1.99

7

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$14.34

8

MARK, SADDLEBAG LID

81173-MLA-A30

$2.09

9

LEVER, SADDLEBAG

81252-MLA-A30

$13.68

10

SADDLEBAG *NHC65M*

81300-MLA-A30ZC

$482.51

11

BRACKET, STOPPER

81305-MLA-A30

$4.57

12

PLATE, STOPPER

81307-MLA-A30

$4.22

13

BODY, R. SADDLEBAG

81311-MLA-A30

$97.99

14

LID, R. *NHC65M*

81320-MLA-A30ZC

$194.34

15

CATCH, R. LID

81330-MLA-A30

$36.00

16

COVER, R. LOCK

81335-MLA-A30

$25.79

17

HINGE, SADDLEBAG

81340-MLA-A30

$35.46

18

STOPPER

81345-MLA-A30

$10.29

19

RUB, SADDLEBAG SEAL

81351-MLA-A30

$10.71

20

INNER LID, R.

81361-MLA-A30

$41.74

21

SHAFT (5X17)

81362-MLA-A30

$1.99

22

PANEL, R. *NHC65M*

81363-MLA-A30ZC

$38.87

23

CASE, LID SPRING

81364-MLA-A30

$3.09

24

CASE, LID SPRING

81365-MLA-A30

$2.90

25

SADDLEBAG *NHC65M*

81400-MLA-A30ZC

$482.51

26

BODY, L. SADDLEBAG

81411-MLA-A30

$114.26

27

LID, L. *NHC65M*

81420-MLA-A30ZC

$203.07

28

CATCH, L. LID

81430-MLA-A30

$50.90

29

COVER, L. LOCK

81435-MLA-A30

$27.68

30

INNER LID, L.

81461-MLA-A30

$41.74

31

PANEL, L. *NHC65M*

81463-MLA-A30ZC

$38.87

32

KEY (2WAY)

81600-MLA-A31

$47.21

33

PIN, CENTER POCKET

83236-MKC-A00

$4.41

34

SPRING, CENTER POCKET

83241-MKC-A00

$4.71

35

STAY, R. SADDLEBAG

84151-MLA-A30

$238.10

36

STAY, L. SADDLEBAG

84152-MLA-A30

$238.10

37

RUBBER

84156-MLA-A30

$3.21

38

PIPE, CENTER CROSS

84161-MLA-A30

$76.04

39

GUARD, HEAT

84191-MLA-A30

$102.68

40

WASHER (2WAY)

88537-MLA-A30

$3.40

41

BOLT, FLANGE (6X10)

90031-GHB-610

$2.03

42

BOLT, FLANGE (8X55)

90036-GHB-770

$2.82

43

BOLT, SOCKET SPECIAL (6X12)

90101-K87-A00

$0.99

44

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.46

45

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.79

46

SCREW, PAN (5X20)

90133-K2E-T00

$1.21

47

NUT, HEX. (5MM)

90302-435-761

$2.06

48

WASHER (6MM)

90401-ZVA-000

$1.60

49

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$4.83

50

COLR, SADDLEBAG STAY

90504-MLA-A30

$3.40

51

WASHER, PLAIN (5MM)

90507-MGM-D10

$2.81

52

NUT, CLIP (5MM)

90677-KAN-961

$3.89

53

O-RING (11.9X2.2)

91370-461-000

$2.21

54

CLIP, HANDLEBAR

91501-MKA-D80

$1.96

55

SCREW, TAPPING (4X12)

93903-24380

Unavailable

56

NUT, FLANGE (8MM)

94050-08070

$1.38

57

WASHER, PLAIN (6MM)

94103-06800

$0.72

58

WASHER, PLAIN (8MM)

94103-08700

$0.87

59

E-RING (3MM)

94540-03010

$1.01

60

E-RING (4MM)

94540-04010

$1.91

61

RUBBER C, STAND STOPPER

95011-63000

$3.73

62

BOLT, FLANGE (8X50)

95801-08050-00

$2.85

62

BOLT, FLANGE (8X50) This part replaces 96400-08050-00.

95801-08050-00

$2.85

62

BOLT, FLANGE (8X50) This part replaces 96400-08050-07.

95801-08050-00

$2.85
