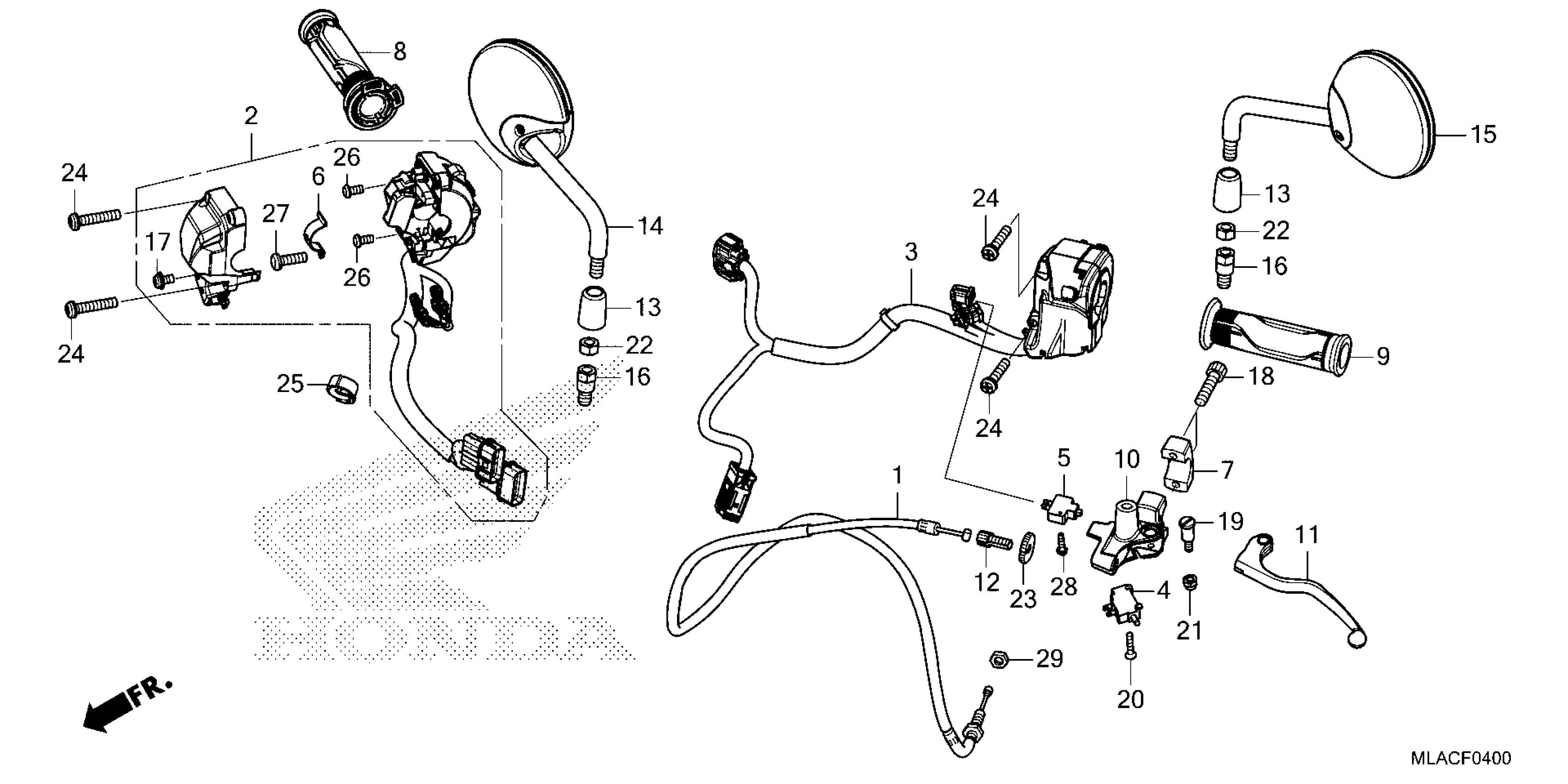

Honda CMX1100A2AC (25) MOTORCYCLE, JPN, VIN# JH2SC875-SK000001 TO JH2SC875-SK099999 HANDLE SWITCH@LEVER@CABLE@MIRROR (CMX1100A/A2) Diagram

CABLE, CLUTCH

22870-MLA-AA1

$18.08

SWITCH UNIT

35135-MLA-AA1

$231.67

SWITCH, TURN SIGNAL

35200-MLA-AA1

$193.28

SWITCH ASSY., CLUTCH

35330-MCJ-751

$8.25

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

PLATE A, SETTING

37971-MLA-AA0

Unavailable

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

GRIP ASSY., THROTTLE

53140-MKK-D01

$35.41

GRIP, L. HANDLE

53166-MGE-000

$17.74

BRACKET, L. HANDLE LEVER

53172-MLA-A00

$54.87

LEVER, L. HANDLEBAR

53178-MLA-A00

$36.83

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$7.04

CAP, LOCK NUT

88119-K87-A00

$2.23

MIRROR *NH105* (MAT BLACK) (R. SIDE)

88210-MLA-A01ZA

$33.40

MIRROR *NH105* (MAT BLACK) (L. SIDE)

88220-MLA-A01ZA

$33.40

BOLT, ADAPTER (10MM)

90101-KWW-640

$2.31

SCREW-WASHER (4X8)

90110-MKS-E20

$1.49

BOLT, SOCKET (6X22)

90111-GHB-660

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, HEX. (10MM) (LEFT HAND THREAD)

90301-KWW-640

$1.49

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

SCREW-WASHER (4X8)

93892-04008-08

$1.49

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

SCREW-WASHER (5X8)

93892-05008-08

$1.49

SCREW, TAPPING (3X12)

93901-32320

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49
