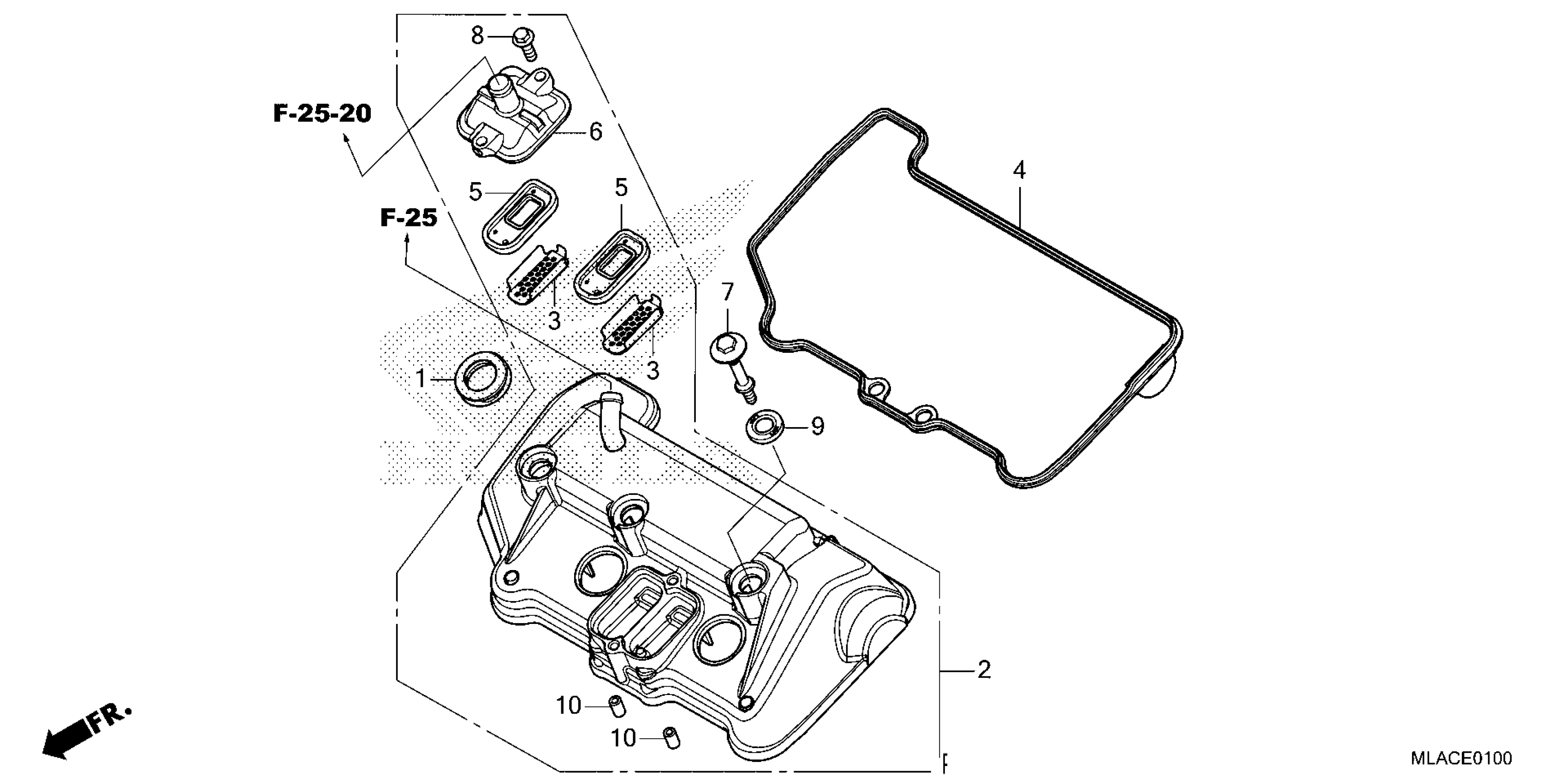

Honda CMX1100A2AC (25) MOTORCYCLE, JPN, VIN# JH2SC875-SK000001 TO JH2SC875-SK099999 CYLINDER HEAD COVER Diagram

SEAL, PLUG TUBE

12229-HL4-000

$7.64

COVER, CYLINDER HEAD

12300-MLA-BA0

$219.63

PLATE, PORT (AI)

12341-MAT-750

$12.93

GASKET, HEAD COVER

12391-HL4-000

$24.04

VALVE, REED (ARAI)

18601-KEA-741

$17.46

COVER, REED VALVE

18612-MJP-G50

$33.15

BOLT, HEAD COVER

90017-MLA-A00

$5.66

BOLT, FLANGE (6X18)

90026-GHB-650

$2.06

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.71

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.80
