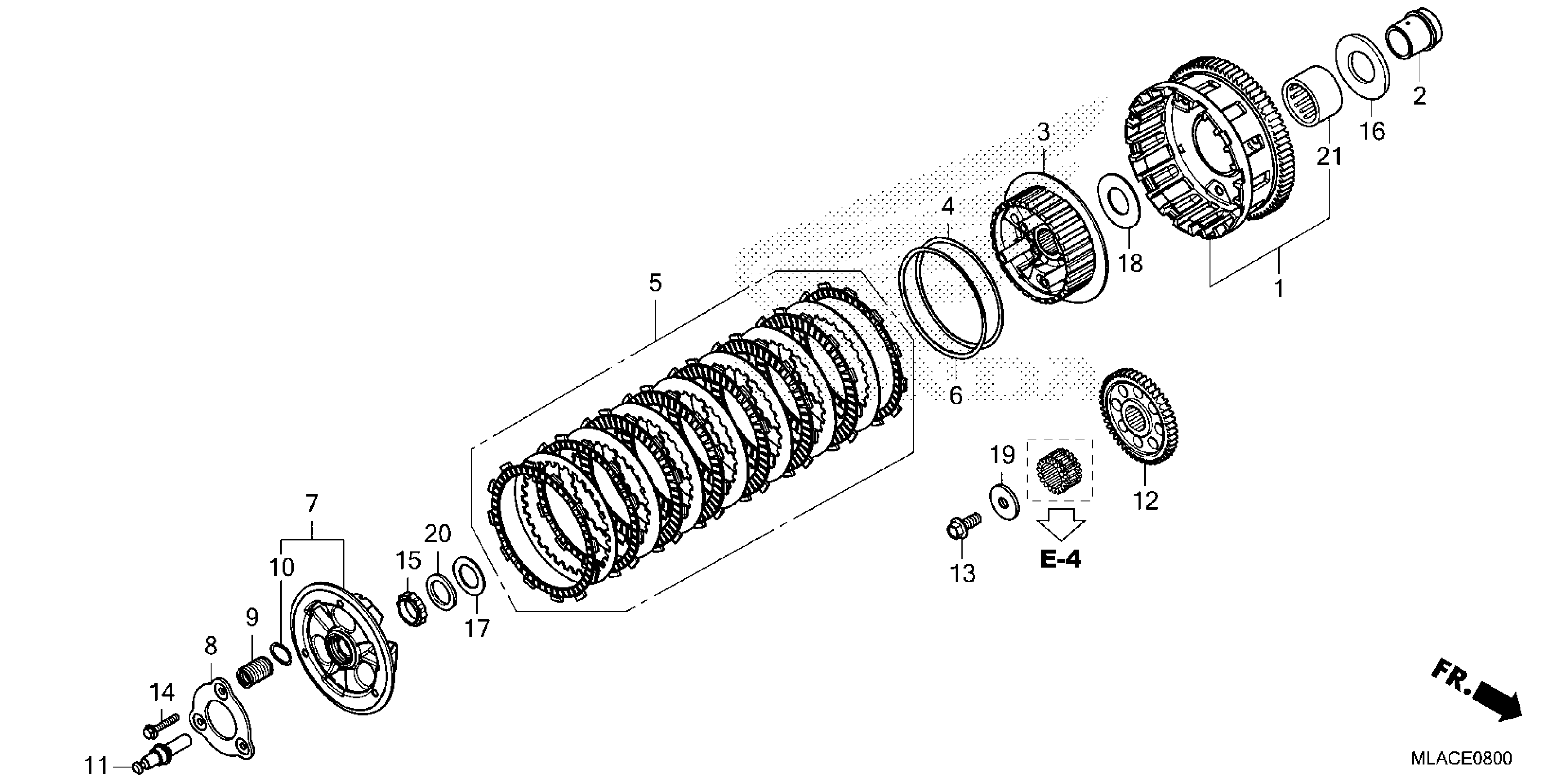

Honda CMX1100A2AC (25) MOTORCYCLE, JPN, VIN# JH2SC875-SK000001 TO JH2SC875-SK099999 CLUTCH (CMX1100A/A2) Diagram

CLUTCH OUTER (79T)

22100-MKS-E01

$422.44

GUIDE, CLUTCH (OUTER)

22116-MJP-G50

$19.21

CENTER, CLUTCH

22121-MKS-E01

$109.15

SEAT, JUDDER SPRING

22125-MKS-E01

$6.36

DISK SET, CLUTCH

22210-MLN-305

$122.10

SPRING, JUDDER

22325-MKS-E01

$45.33

PLATE, CLU PRESS

22350-MLN-E01

$72.30

PLATE, SETTING

22361-MKS-E01

$19.46

SPRING, CLUTCH

22401-MLN-E01

$5.03

SEAT, CLUTCH SPRING

22425-MJP-G51

$11.73

PIN, CLUTCH LIFTER

22847-MLN-E00

$33.89

GEAR, PRIMARY DRIVE (46T)

23103-MKS-E00

$116.64

BOLT, SPECIAL (10X25)

90013-MJP-G50

$4.26

BOLT, FLANGE (6X35)

90050-MJP-G51

$2.05

NUT, LOCK (25MM)

90231-MS2-610

$18.78

WASHER (35X50X3.2)

90401-MEA-670

$5.38

WASHER (25.2X38X2)

90401-MKS-E00

$4.84

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

WASHER (10.5X36X4)

90414-MGE-D00

$3.51

WASHER, SPRING (25MM) (CHUO HATSUJO)

90432-MM8-003

$7.70

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$89.90
