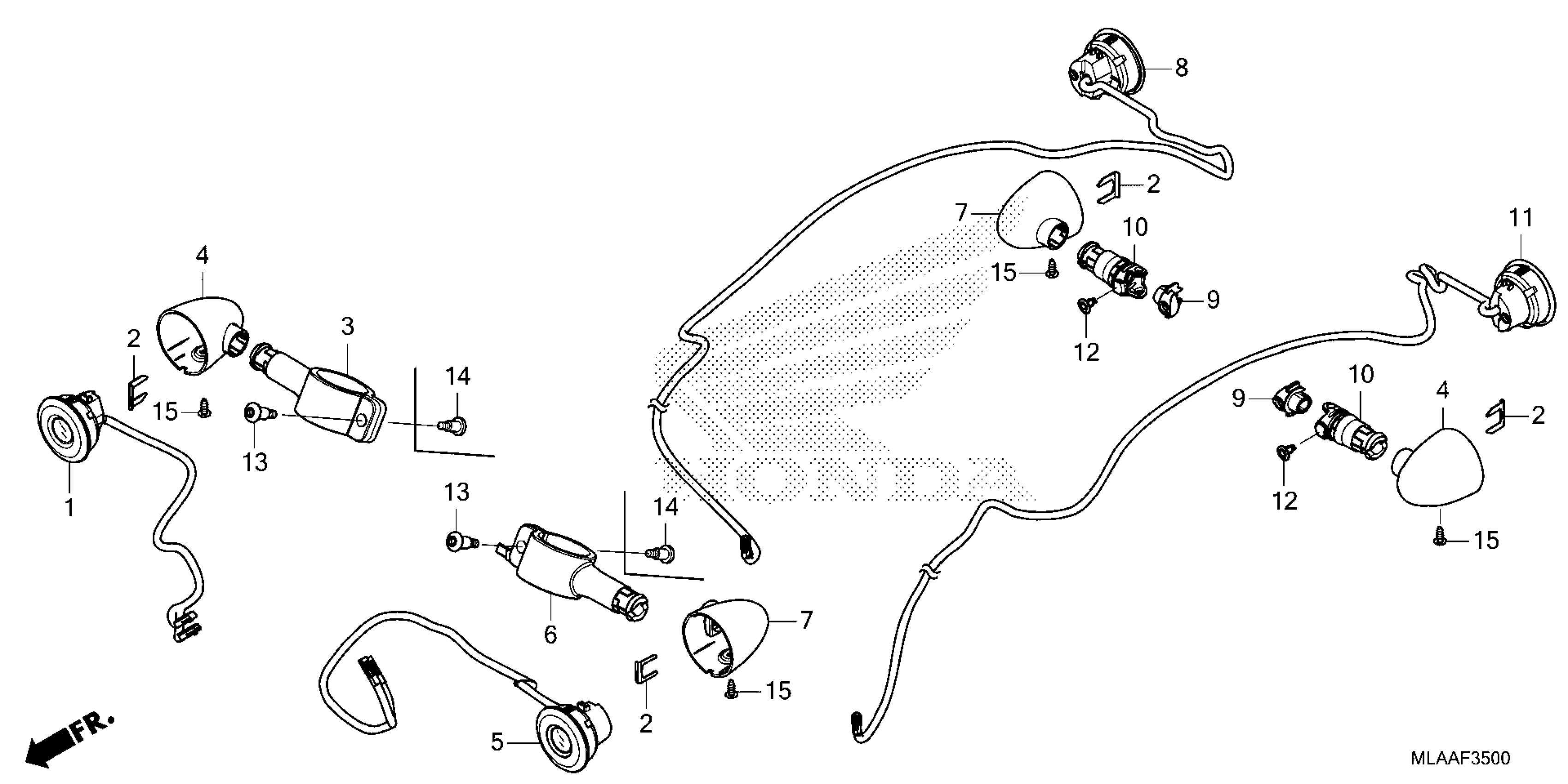

Honda CMX1100A2AC (24) MOTORCYCLE, JPN, VIN# JH2SC830-RK300001 TO JH2SC830-RK399999 TURN SIGNAL Diagram

#

Description

Price

1

TURN SIGNAL UNIT, R. FR. (MITSUBA)

33400-MLA-A01

$151.51

2

STAY, TURN SIGNAL

33411-K87-A30

$2.72

3

RUBBER, R. FR. TURN SIGNAL

33412-MLA-A00

$12.41

4

COVER A, TURN SIGNAL (R. FR./L. RR.)

33413-K87-A30

$4.56

5

TURN SIGNAL UNIT, L. FR. (MITSUBA)

33450-MLA-A01

$151.51

6

RUBBER, L. FR. TURN SIGNAL

33452-MLA-A00

$13.16

7

COVER B, TURN SIGNAL (L. FR./R. RR.)

33453-K87-A30

$4.56

8

TURN SIGNAL UNIT, R. RR. (MITSUBA)

33600-MLA-A01

$104.64

9

HOLDER, TURN SIGNAL

33609-K87-A30

$1.80

10

RUBBER, RR. TURN SIGNAL MOUNTING

33612-K87-A30

$5.12

11

TURN SIGNAL UNIT, L. RR. (MITSUBA)

33650-MLA-A01

$104.64

12

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

13

BOLT, SOCKET (6X26)

90118-MLA-A00

$4.12

15

SCREW, TAPPING (4X12)

93903-24380

$1.49
