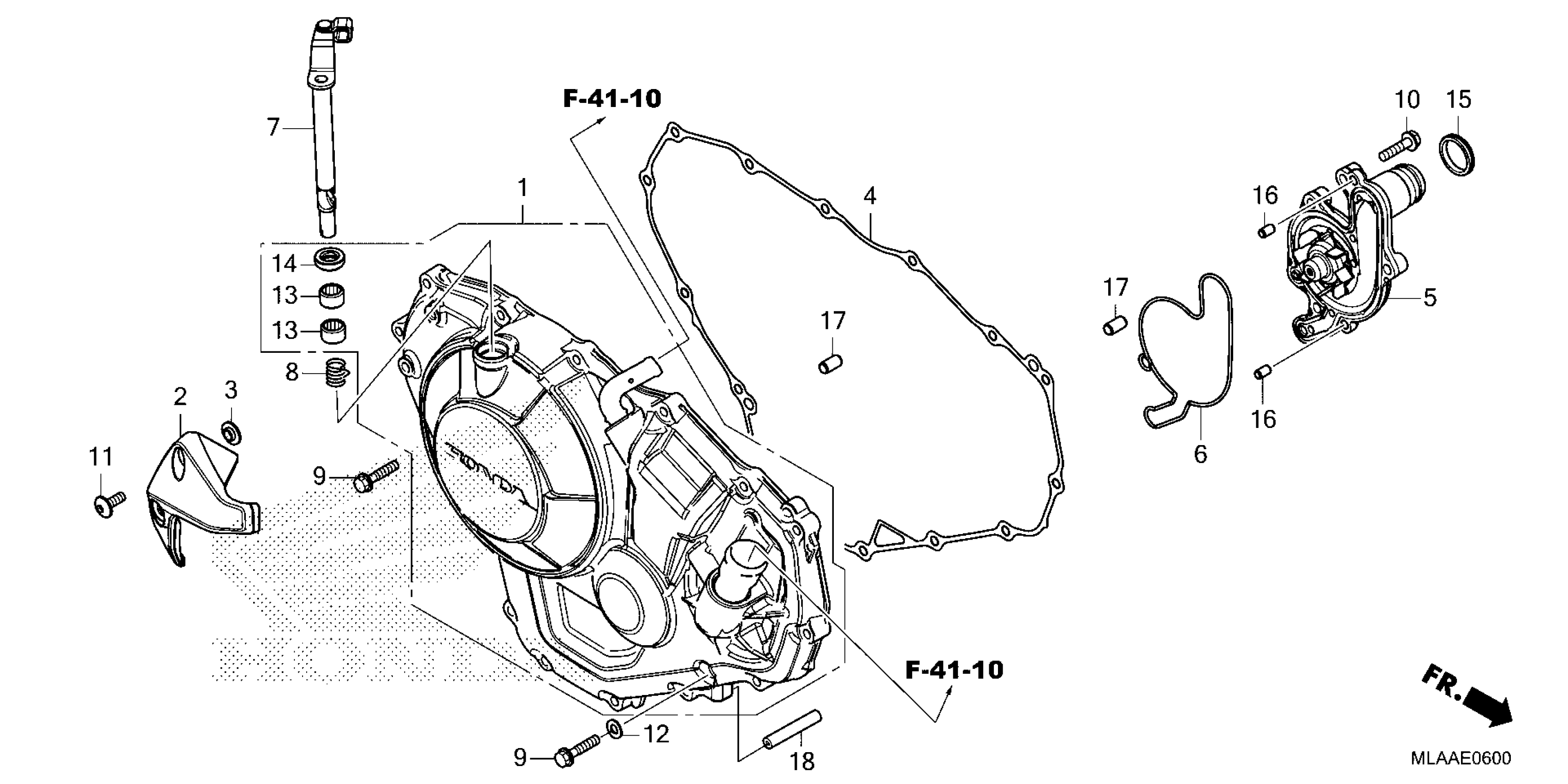

Honda CMX1100A2AC (24) MOTORCYCLE, JPN, VIN# JH2SC830-RK300001 TO JH2SC830-RK399999 RIGHT CRANKCASE COVER (CMX1100A/A2) Diagram

COVER, R. CRANKCASE

11330-MLA-A00

$364.74

COVER, R. ENGINE SIDE

11376-MLA-A00

$7.36

COLLAR

11385-MJF-A00

$2.92

GASKET, R. CRANKCASE COVER

11394-MJP-G51

$49.79

WATER PUMP

19200-MJP-G50

$196.59

GASKET, WATER PUMP BODY

19226-MJP-G50

$10.67

LEVER, CLUTCH

22810-MJP-G50

$54.33

SPRING, CLUTCH LEVER

22815-MJE-D00

$1.49

BOLT, FLANGE (6X28)

90026-GHB-690

$2.18

BOLT, FLANGE (6X25)

90030-GHB-680

$2.21

BOLT, SOCKET SPECIAL (6X17)

90085-MLA-A00

$2.43

WASHER, SEALING (6MM)

90488-425-000

$2.28

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$4.26

OIL SEAL (12X20X5) (ARAI)

91205-KF0-003

$3.47

SEAL, WATER PIPE

91315-MJP-G51

$2.41

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.25

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)

95005-35001-30M

$8.63
