Description

Price

1

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

2

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

3

COLLAR, CABLE CLAMP

44835-167-830

$3.00

4

FRAME, R. RR. NH105 (MAT BLACK)

50241-MLA-A00ZA

$96.32

5

FRAME, L. RR. NH105 (MAT BLACK)

50246-MLA-A00ZA

$96.32

6

SET ILLUS (TYPE1)

80200-MLA-AD0ZA

$196.64

7

RUBBER, RR. FENDER

80102-K87-A00

$1.68

8

RUBBER, RR. FRAME

80102-MLA-A00

$1.83

9

RUBBER, TAILLIGHT CODE

80103-K87-A00

$2.85

10

COLLAR, RR. FENDER

80109-MLA-A00

$3.01

11

STAY A, RR. FENDER

80115-MLA-A00

$68.83

12

STAY, RR. SIDE REFLECTOR

80116-K87-A30

$11.84

13

RUBBER, PROTECTOR

80119-MGE-300

$2.80

14

BRACE A, RR. FRAME

80125-MLA-A00

$35.00

15

BRACE B, RR. FRAME

80135-MLA-A00

$40.49

16

FENDER ASSY. A, RR.

80150-MLA-A00

$33.55

17

BOLT, FLANGE (6X8)

90026-GHB-600

$2.03

18

BOLT, FLANGE (6X18)

90031-GHB-650

$1.96

19

SCREW, PAN (6X10)

90106-GBB-710

$1.14

20

BOLT, SOCKET SPECIAL (8X12)

90109-K87-A00

$0.59

21

BOLT, SOCKET SPECIAL (8X9)

90109-MLA-A00

$3.13

22

BOLT, SPECIAL (5X10)

90138-K87-A30

$1.06

23

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.79

24

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

25

RUBBER

90311-H06-000

$0.29

26

PLUG, CONE TYPE

90899-422-610

$1.81

27

NUT, FLANGE (6MM)

94050-06070

$1.32

28

WASHER, PLAIN (10MM)

94101-10700

$0.97

29

BOLT, FLANGE (10X32)

95701-10032-07

$1.61

30

BOLT, SOCKET (10X40)

96700-10040-07

$1.30

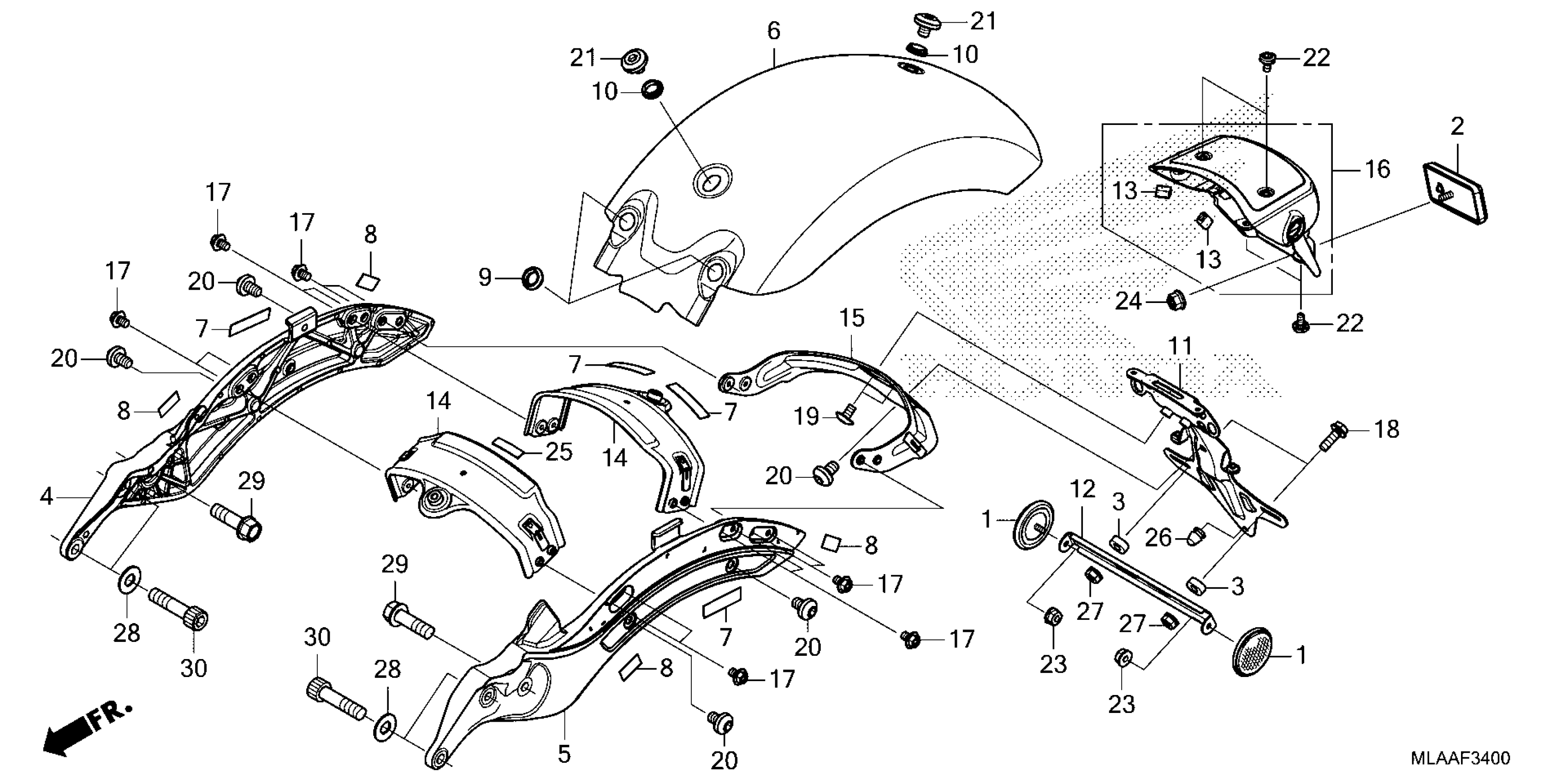

Honda CMX1100A2AC (24) MOTORCYCLE, JPN, VIN# JH2SC830-RK300001 TO JH2SC830-RK399999 REAR FENDER Diagram
