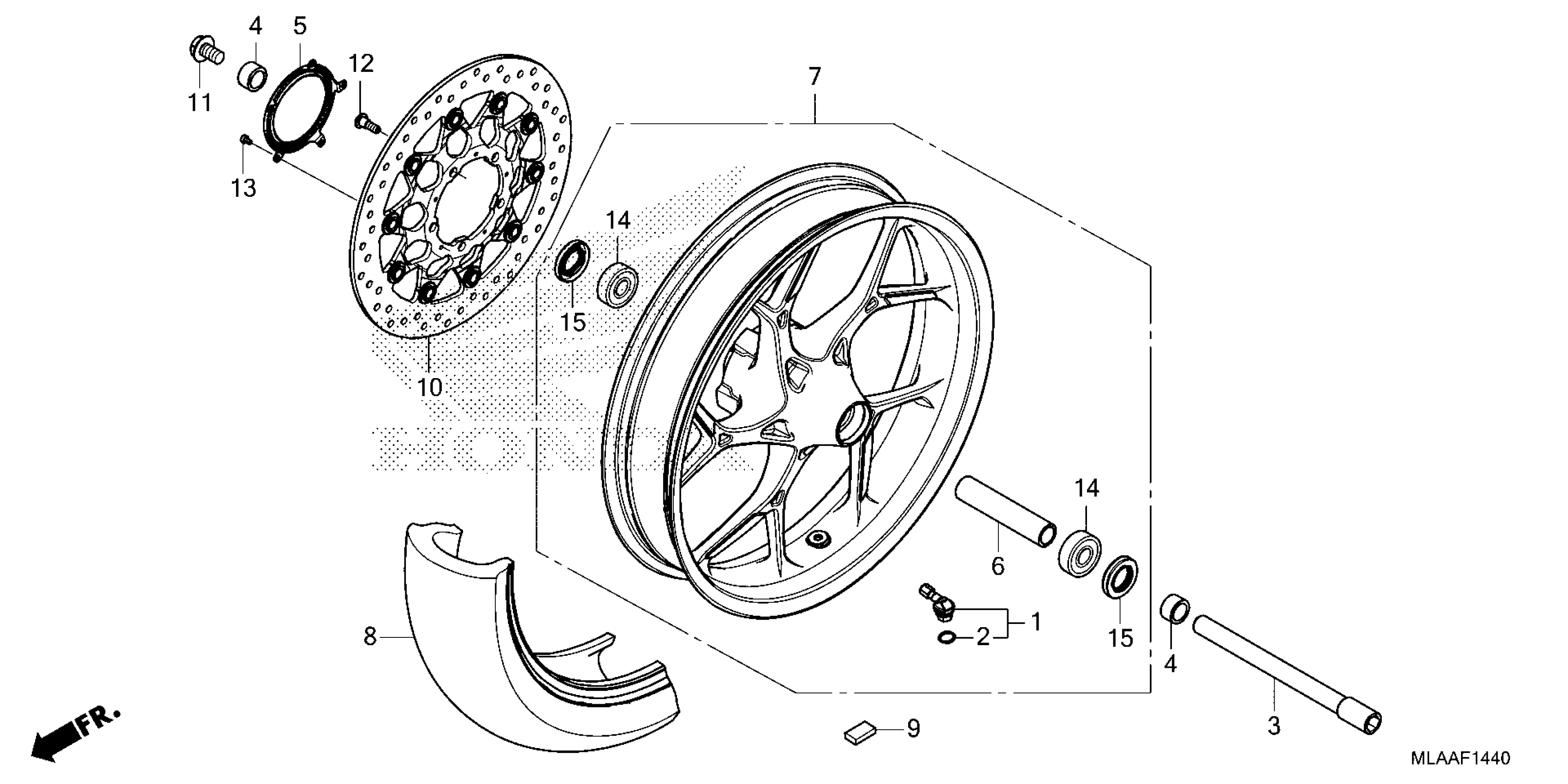

Honda CMX1100A2AC (24) MOTORCYCLE, JPN, VIN# JH2SC830-RK300001 TO JH2SC830-RK399999 FRONT WHEEL Diagram

VALVE ASSY., CLAMP IN

42755-MKA-D81

$15.22

O-RING

42758-MKA-D81

$1.41

AXLE, FR. WHEEL

44301-MLA-A00

$52.38

COLLAR, FR. WHEEL SIDE

44311-MJP-G50

$10.29

RING, FR. PULSER (TYPE2)

44515-MKF-D40ZB

$28.38

COLLAR, FR. AXLE DISTANCE

44620-MLA-A00

$22.15

WHEEL SUB-ASSY., FR.

44650-MLA-A00

$884.32

TIRE, FR.

44711-MLA-A03

$242.65

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.28

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.93

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.75

DISK, FR. BRAKE (YUTAKA)

45120-MLA-A01

$541.65

BOLT, FR. AXLE

90105-MBT-610

Unavailable

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

BOLT, TORX (5X7)

90131-MFJ-A50

$2.81

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

Unavailable

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66
