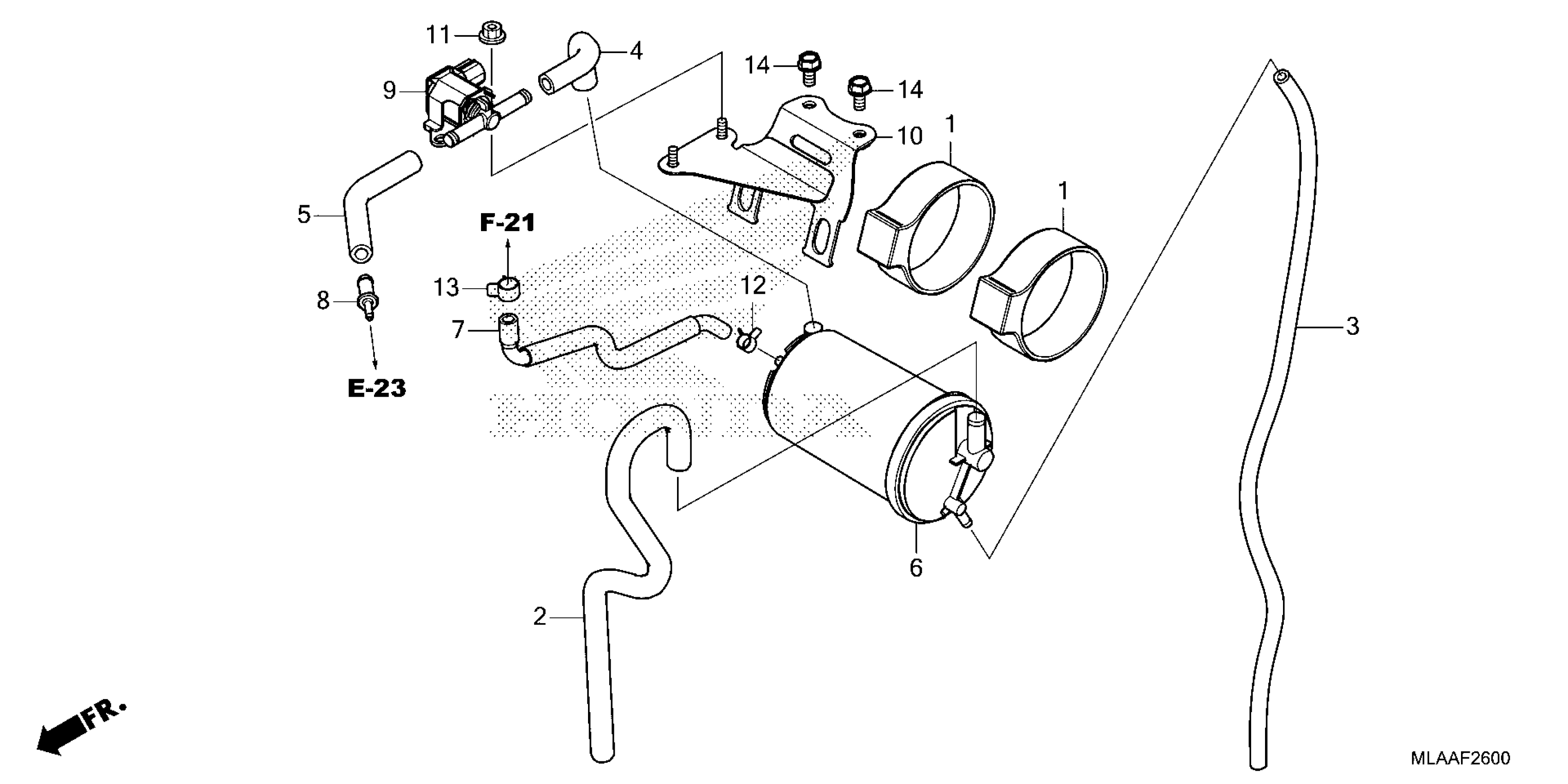

Honda CMX1100A2AC (24) MOTORCYCLE, JPN, VIN# JH2SC830-RK300001 TO JH2SC830-RK399999 CANISTER Diagram

#

Description
Price

1

RUBBER, CANISTER MOUNTING

17411-KPP-930

$3.84

2

TUBE, OPEN AIR

17411-MLA-A00

$9.52

3

TUBE, CANISTER DRAIN

17412-MLA-A00

$17.66

4

TUBE (PCSV-CANISTER)

17416-MLA-A00

$6.84

5

TUBE, PURGE CONTROL SOLENOID JOINT

17417-MLA-A00

$6.11

6

CANISTER

17421-KYJ-902

$90.46

7

TUBE, CHARGE

17545-MLA-A00

$10.64

8

JOINT, TUBE

19126-KM1-010

$3.90

9

VALVE, PUR CONT SOL

36162-K2Y-J01

$35.07

10

STAY, CANISTER

50346-MLA-A00

$19.84

11

NUT, FLANGE (5MM)

94050-05080

$1.49

12

CLAMP, TUBE (D8)

95002-40800-08

$2.25

13

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

14

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
