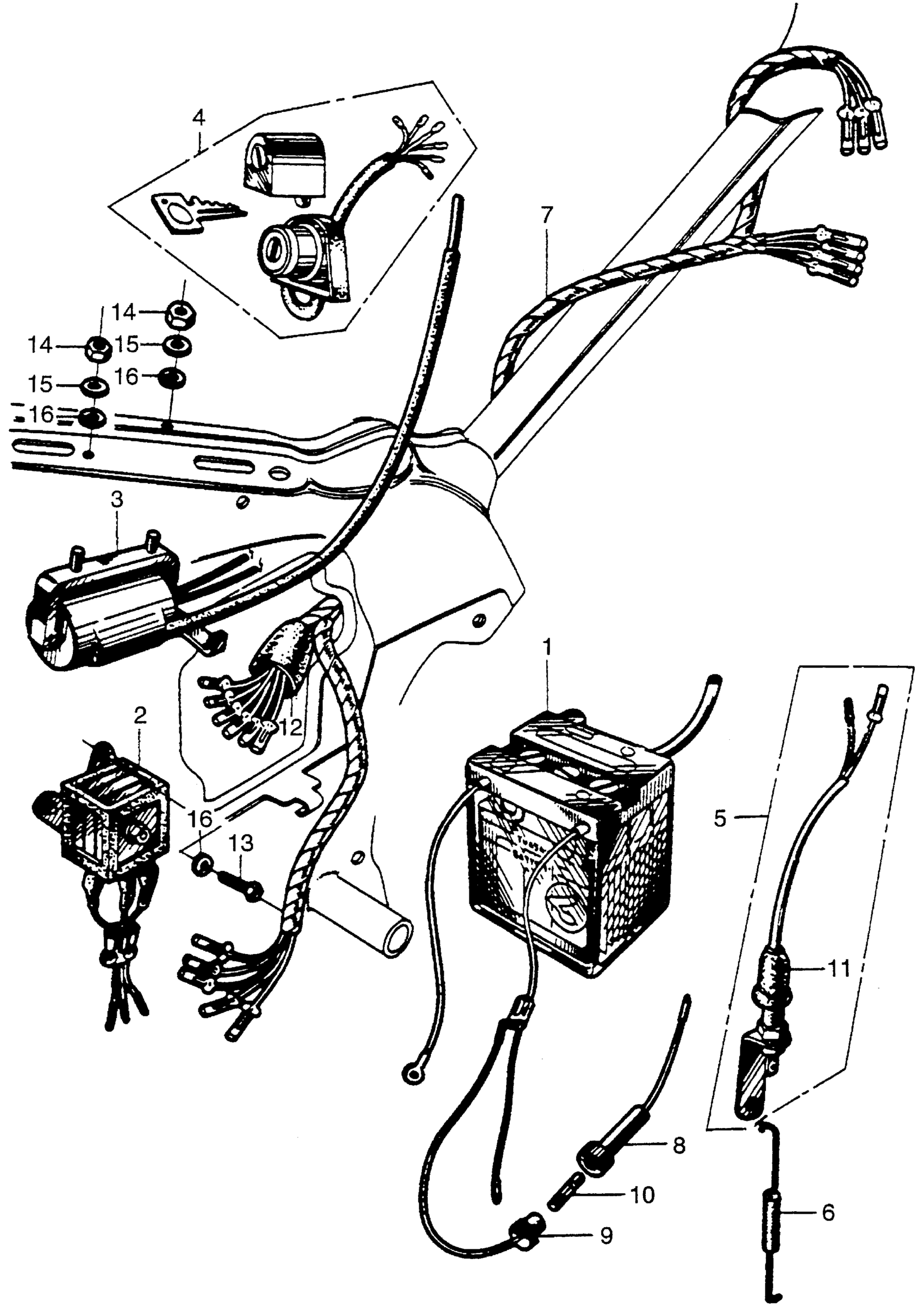

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

BATTERY (6V-5.5A) This part replaces 31500-001-810.

31500-102-772AH

Unavailable

1

BATTERY (6V-5.5A) This part replaces 31500-046-671.

31500-102-772AH

Unavailable

1

BATTERY (6V-5.5A) This part replaces 31500-053-000.

31500-102-772AH

Unavailable

1

BATTERY (6V-5.5A) This part replaces 31500-102-701.

31500-102-772AH

Unavailable

1

BATTERY (6V-5.5A) This part replaces 31500-102-772.

31500-102-772AH

Unavailable

1

BATTERY (6V-5.5A) This part replaces 31500-128-671.

31500-102-772AH

Unavailable

2

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) This part replaces 31700-033-000.

31700-033-008

Unavailable

2

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE)

31700-033-008

Unavailable

3

COIL, IGNITION This part replaces 30400-046-156.

30530-102-780

Unavailable

3

COIL, IGNITION

30530-102-780

Unavailable

4

SWITCH KIT, COMBINATION (NOT AVAILABLE)

35010-033-000

Unavailable

5

SWITCH ASSY., STOP (NOT AVAILABLE) This part replaces 35350-001-000.

35350-033-000

Unavailable

5

SWITCH ASSY., STOP (NOT AVAILABLE) This part replaces 35350-005-000.

35350-033-000

Unavailable

5

SWITCH ASSY., STOP (NOT AVAILABLE) This part replaces 35350-005-020.

35350-033-000

Unavailable

5

SWITCH ASSY., STOP (NOT AVAILABLE)

35350-033-000

Unavailable

6

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-005-000

Unavailable

6

SPRING, STOP SWITCH (NOT AVAILABLE) This part replaces 35357-005-010.

35357-005-000

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-053-000

Unavailable

8

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

9

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

10

FUSE A (10A) This part replaces 38201-030-000.

98200-11000

$1.80

10

FUSE A (10A)

98200-11000

$1.80

11

GROMMET, WIRE HARNESS

32983-011-000

$3.31

12

COVER, STOP SWITCH TERMINAL (NOT AVAILABLE)

35361-011-000

Unavailable

13

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

13

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, SPRING (6MM)

94111-06000

$1.49
