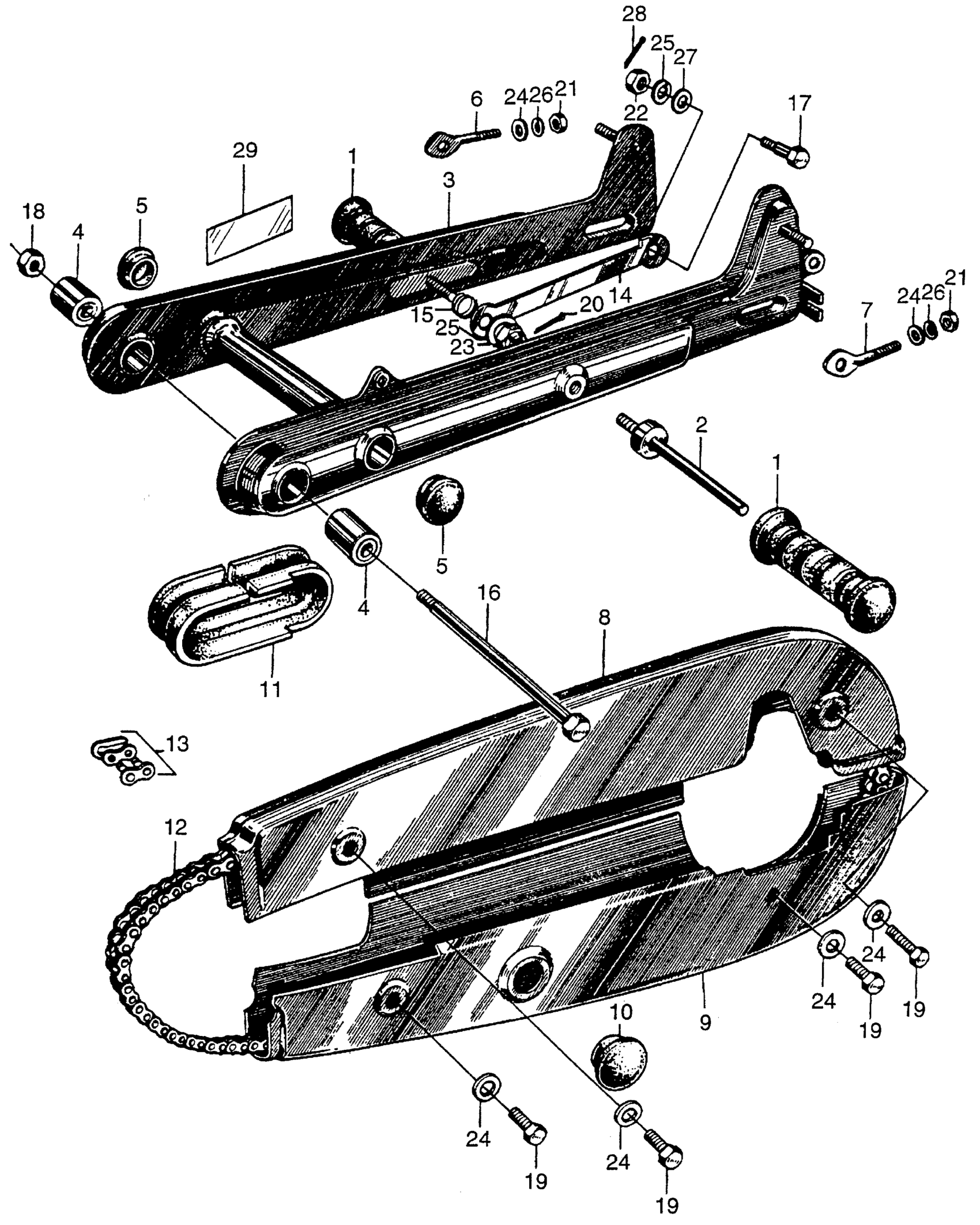

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

RUBBER, PILLION STEP This part replaces 50731-001-810.

95011-32000

$7.16

1

RUBBER, PILLION STEP This part replaces 50731-051-000.

95011-32000

$7.16

1

RUBBER, PILLION STEP

95011-32000

$7.16

2

BAR, L. PILLION STEP

50700-001-810

Unavailable

3

SWINGARM

52100-034-000Z

Unavailable

4

BUSH, SWINGARM PIVOT RUBBER

52181-001-300

$12.11

5

CAP, CROSSMEMBER SIDE *NH1* (BLACK) (NOT AVAILABLE)

52161-001-010B

Unavailable

5

CAP *Y3L* This part replaces 52161-001-010XL.

52161-001-505

Unavailable

6

ADJUSTER A, R. CHAIN This part replaces 40543-030-000.

95014-10100

$5.54

6

ADJUSTER A, R. CHAIN This part replaces 40543-032-000.

95014-10100

$5.54

6

ADJUSTER A, R. CHAIN This part replaces 40543-051-000.

95014-10100

$5.54

6

ADJUSTER A, R. CHAIN

95014-10100

$5.54

7

ADJUSTER, L. CHAIN This part replaces 40544-001-000.

95014-10020

$5.54

7

ADJUSTER, L. CHAIN This part replaces 40544-030-000.

95014-10020

$5.54

7

ADJUSTER, L. CHAIN This part replaces 40544-053-010.

95014-10020

$5.54

7

ADJUSTER, L. CHAIN

95014-10020

$5.54

8

CASE, DRIVE CHAIN (UPPER) (NOT AVAILABLE)

40510-034-000Z

Unavailable

9

CASE, DRIVE CHAIN (LOWER) (NOT AVAILABLE)

40520-034-000Z

Unavailable

10

CAP, CHAIN CASE

40545-001-000

$3.67

10

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000B.

40545-001-000

$3.67

10

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-001-000ZC.

40545-001-000

$3.67

10

CAP, CHAIN CASE PEEP HOLE This part replaces 40545-141-000.

40545-001-000

$3.67

11

GASKET, DRIVE CHAIN CASE

40591-041-000

Unavailable

12

CHAIN, DRIVE (104L) (DAIDO)

405W3-KA8-505

Unavailable

12

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-028-013.

405W3-KA8-505

Unavailable

12

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-030-003.

405W3-KA8-505

Unavailable

12

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-030-810.

405W3-KA8-505

Unavailable

12

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-030-812.

405W3-KA8-505

Unavailable

12

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-459-000.

405W3-KA8-505

Unavailable

13

MASTER LINK This part replaces 40531-205-003.

40531-205-013

Unavailable

13

MASTER LINK

40531-205-013

Unavailable

13

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

14

ARM, TORQUE LINK (NOT AVAILABLE)

43431-001-020

Unavailable

15

SPRING, STOPPER ARM

43434-250-000

$2.00

16

BOLT, SWINGARM PIVOT This part replaces 90121-030-000.

90121-092-671

Unavailable

16

BOLT, SWINGARM PIVOT This part replaces 90121-034-000.

90121-092-671

Unavailable

16

BOLT, SWINGARM PIVOT This part replaces 90121-041-000.

90121-092-671

Unavailable

16

BOLT, SWINGARM PIVOT This part replaces 90121-092-670.

90121-092-671

Unavailable

16

BOLT, SWINGARM PIVOT

90121-092-671

Unavailable

17

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

17

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

18

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

19

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.49

19

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.49

19

BOLT, HEX. (6X6)

92101-06006-0A

$1.49

20

PIN, LOCK (8MM)

94251-08000

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

22

NUT, HEX. (8MM)

94030-08000

$1.49

22

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

23

NUT, SELF-LOCK (8MM) This part replaces 94011-08000.

94011-08000-0S

$9.38

23

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49

27

WASHER, SPRING (8MM)

94111-10000

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

28

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

28

PIN, COTTER (2.0X22)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35)

94201-20350

$1.49

28

PIN, COTTER (2.0X22)

94201-29220

$1.49

29

LABEL, MUFFLER CAUTION

87504-028-670

$2.92
