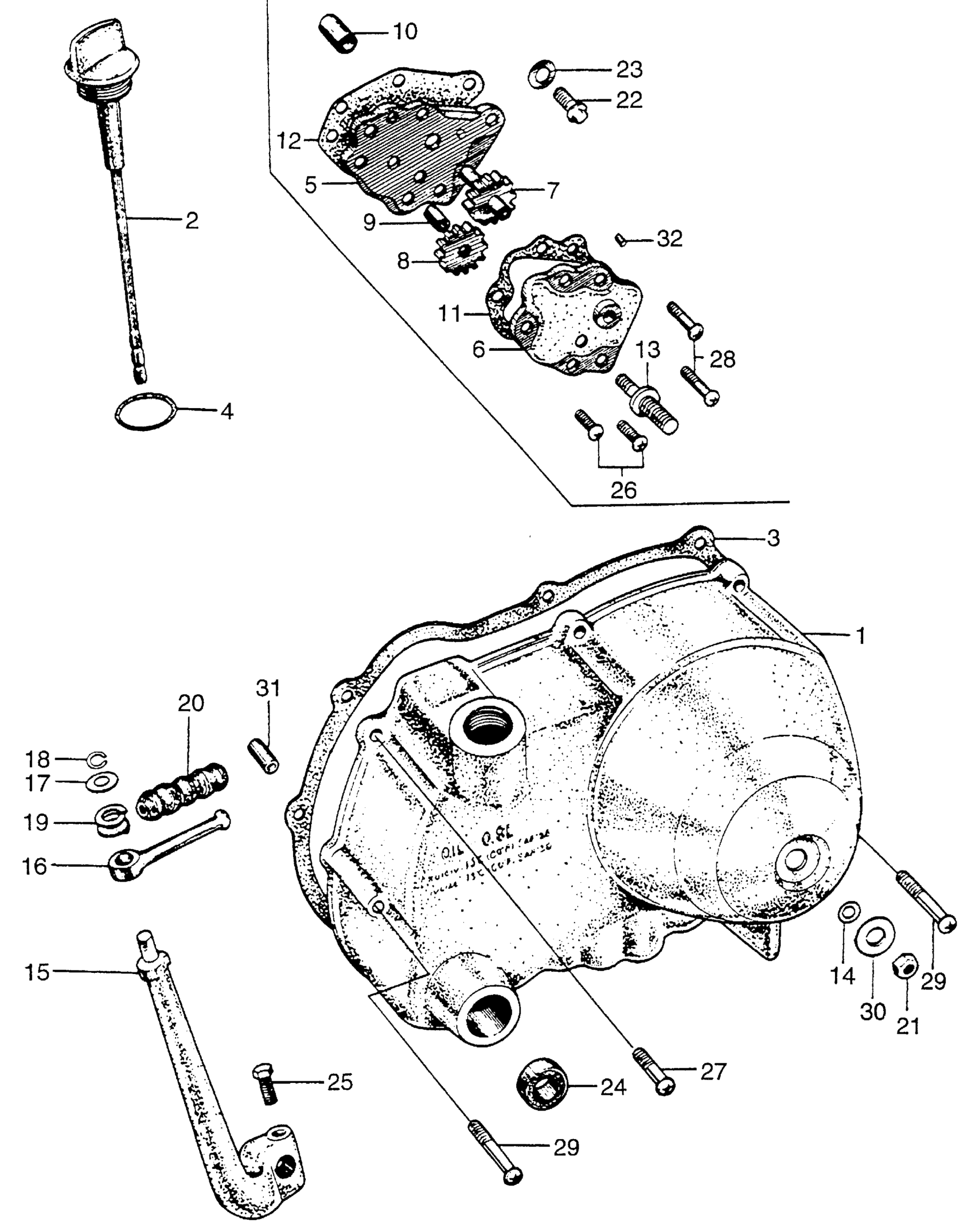

Honda CM91A MOTORCYCLE, JPN, VIN# CM91-100001 RIGHT CRANKCASE COVER + OILPUMP Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) This part replaces 11330-046-000.

11330-046-020

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE) This part replaces 11330-046-010.

11330-046-020

Unavailable

1

COVER, R. CRANKCASE

11330-046-020

Unavailable

2

DIPSTICK, OIL This part replaces 15650-028-000.

15650-028-305

Unavailable

2

DIPSTICK, OIL (NOT AVAILABLE)

15650-028-305

Unavailable

3

GASKET, R. CRANKCASE COVER This part replaces 11393-028-020.

11393-028-306

$12.58

3

GASKET, R. CRANKCASE COVER

11393-028-306

$12.58

4

GASKET, OIL CAP (NOT AVAILABLE)

15619-001-000

Unavailable

5

BODY, OIL PUMP (NOT AVAILABLE)

15210-028-020

Unavailable

5

BODY, OIL PUMP

15210-028-030

Unavailable

6

COVER, OIL PUMP

15121-028-040

Unavailable

7

GEAR, OIL PUMP DRIVE (NOT AVAILABLE)

15180-028-040

Unavailable

8

GEAR B, OIL PUMP (NOT AVAILABLE)

15141-028-030

Unavailable

9

SHAFT, OIL PUMP DRIVEN GEAR (NOT AVAILABLE)

15161-028-030

Unavailable

10

PIN, KNOCK (13X11) (NOT AVAILABLE)

90701-028-000

Unavailable

11

GASKET, OIL PUMP COVER (NOT AVAILABLE)

15128-028-010

Unavailable

12

GASKET, OIL PUMP BODY (NOT AVAILABLE)

15119-028-000

Unavailable

12

GASKET, OIL PUMP BODY (NOT AVAILABLE)

15119-028-010

Unavailable

13

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22846-046-000

Unavailable

14

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

14

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

15

ARM, KICK STARTER

28301-040-000

Unavailable

15

ARM, KICK STARTER This part replaces 28301-046-000.

28301-040-000

Unavailable

16

PEDAL, KICK STARTER This part replaces 28302-001-000.

28302-126-770

Unavailable

16

PEDAL, KICK STARTER

28302-126-770

Unavailable

17

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

18

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

19

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

20

RUBBER A, KICK STARTER This part replaces 28311-001-000.

95011-51000

$3.69

20

RUBBER A, KICK STARTER

95011-51000

$3.69

21

NUT (8MM) (NOT AVAILABLE)

90281-001-000

Unavailable

22

BOLT, OIL JOINT (NOT AVAILABLE)

90015-028-000

Unavailable

23

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

24

OIL SEAL (14X26X6) This part replaces 91203-023-020.

91251-ZW5-003

$3.81

24

OIL SEAL (14X26X6)

91251-ZW5-003

$3.81

25

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

25

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

25

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

26

SCREW, PAN (5X14) This part replaces 93500-05014.

93500-05014-0A

$1.49

26

SCREW, PAN (5X14)

93500-05014-0A

$1.49

27

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

27

SCREW, PAN (6X20)

93500-06020-0A

$1.49

28

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

29

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

29

SCREW, PAN (6X40)

93500-06040-0A

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

PIN A, DOWEL (10X14)

94301-10140

$2.28

32

PIN, DOWEL (4X65) (NOT AVAILABLE)

94302-04065

$2.14
